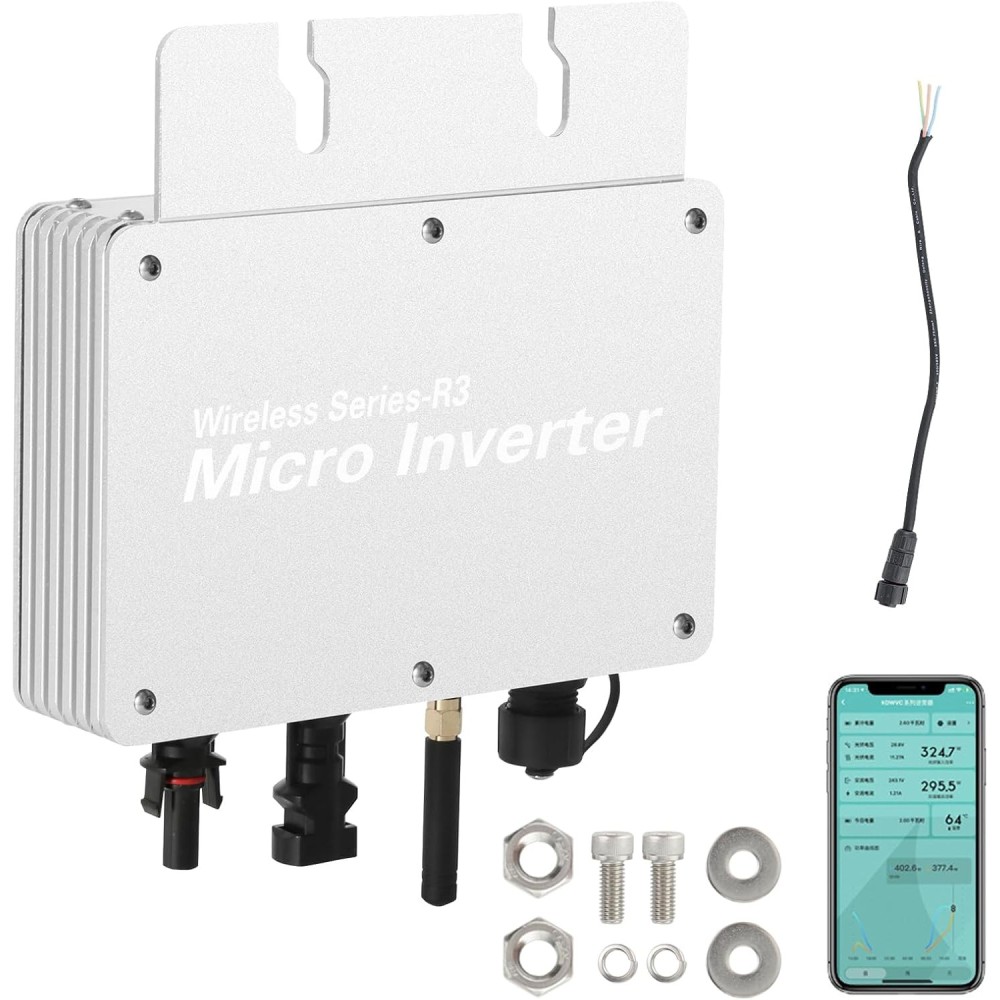

Microcoverter WVC-300W, 300W MPPT, Solar inverter, WiFi, Used

【Function】: This solar inverter to the network is a permanent current type, has a constant output power and there is no overloading or excessive current.

【Performance】: When a power failure occurs, the inverter automatically switches off the output.

【Design】: To meet higher power requirements, this solar microinwerter can be used in a serial configuration.

【Easy use】: Thanks to the wireless communication system and monitoring using a mobile application, you can monitor the operation status of the device and key parameters, such as AC voltage, AC frequency, AC current, power generation over time Real, total generation of power, etc.

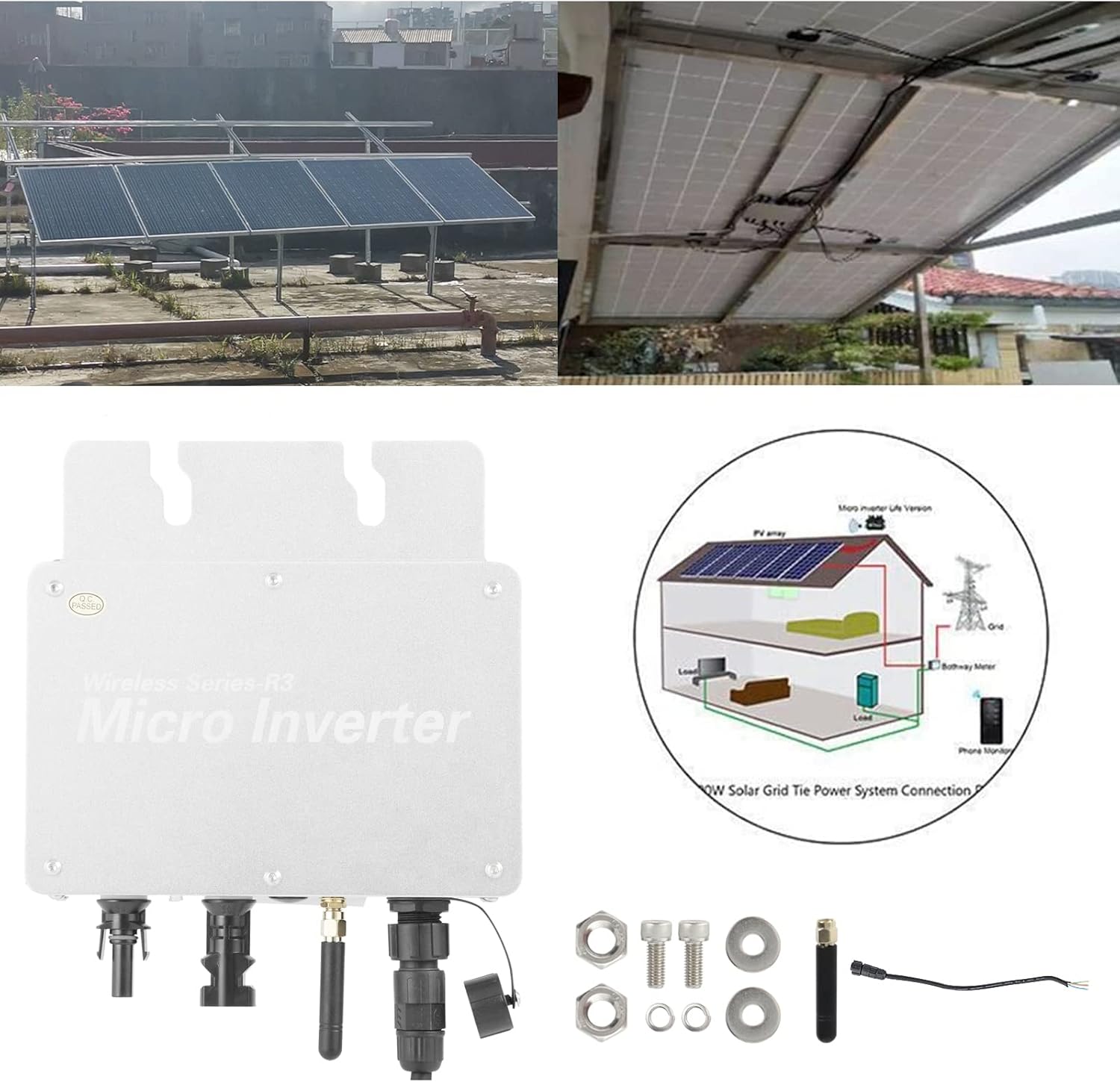

【Application】: Solar microinwerter is a device that converts the current from the solar panel to the current. It has small dimensions and capacity, usually 0.2-1.6 kW. It is often used in small solar systems or balconies power stations with solar panels.

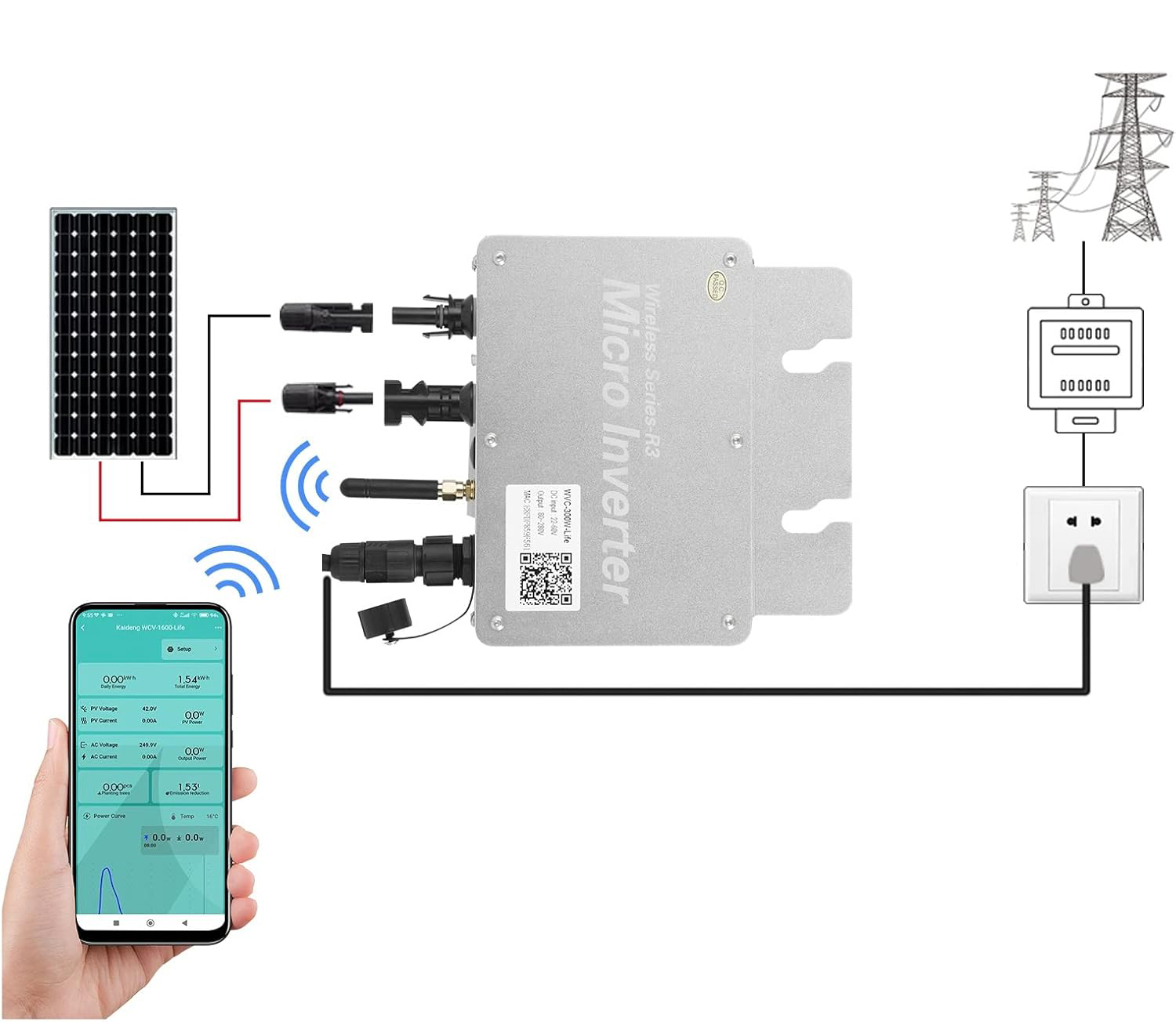

How to use:

1. Install and attach the inverter to the photovoltaic panel holder using the attached screws.
2. Connect a positive and negative pole of the DC plug on a photovoltaic panel to the Input terminal DC inverter.
3. Open a water-resistant AC inverter output connector and connect AC cable to a water-resistant AC plug.
4. Connect the AC output line to the main AC line.
5. Repeat steps 1-3 to install and connect all inverters.
6. Connect the main AC cable to the public network and start your journey with green energy.

Microinwerter LED indicator function:

1. The red light is on a permanent: Microinverter is on, the red light is on, the device is ready for operation.
2. The red light flashes: Microinwerter is fully prepared and passes into a state of delayed.
3. Green light flashes quickly: the status of the MPPT maximum point search status.
4. The green light is permanently lit: the status of the MPPT maximum point block.
5. Green light changes into red light for a longer time.

Normal process of flashing lights during operation: Connect the microinwerter to AC and DC terminals, and then turn on the power --- Red light is on for 3 seconds --- Red light flashes for 30 seconds --- Green light flashes quickly (searching for a point Maximum power MPPT) --- Green light is lit up (MPPT is locked).
