Manufacturer's code:

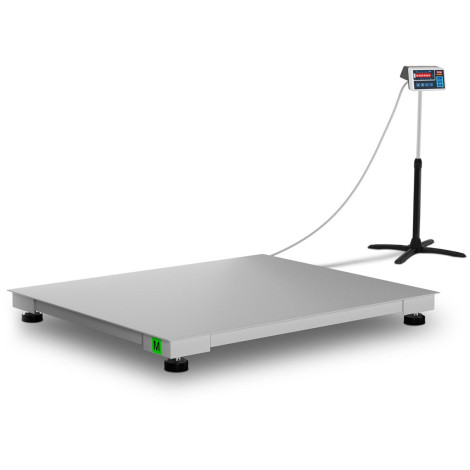

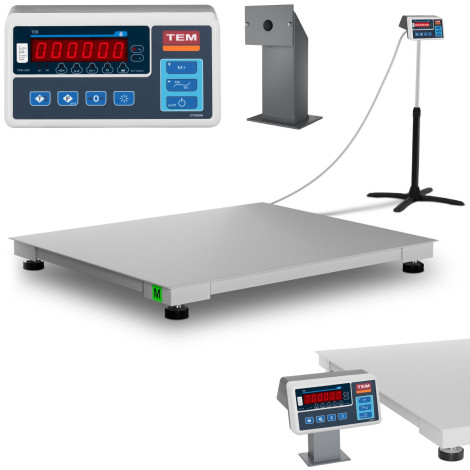

10200044Warehouse of the Platform brand TEM It will work in warehouses, wholesalers, sorting rooms, at the post office, airport, in trade and wherever it is important to indicate.
Weight
Certified and legalized After rigorous tests. Legalization certificates
m (Black point inscribed in a square) on the nameplate. The device
delivered is
with EU compliance declaration and a unique serial number. Only the weight legalized are authorized to commerce.
The weight lifting capacity is
600 kg with a 200 g precision. Two weight ranges were used to choose from
W1: 2 kg - 300 kg with an accuracy of 100 g and W2: 4 kg - 600 kg with an accuracy of 200 g. The device is easy to use thanks to intuitive

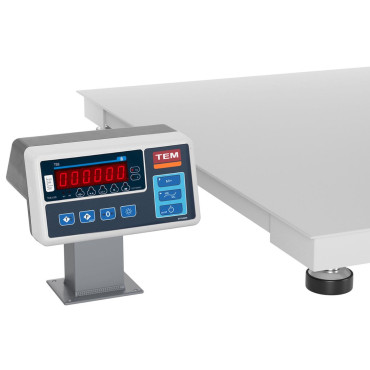

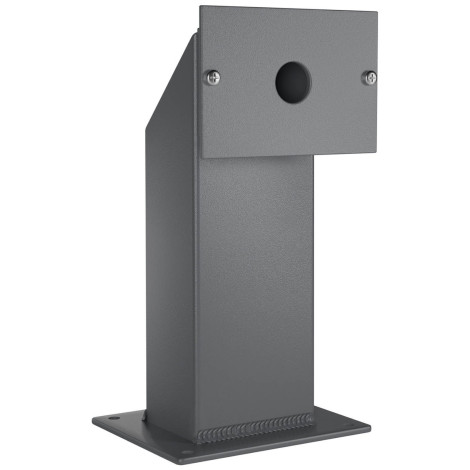

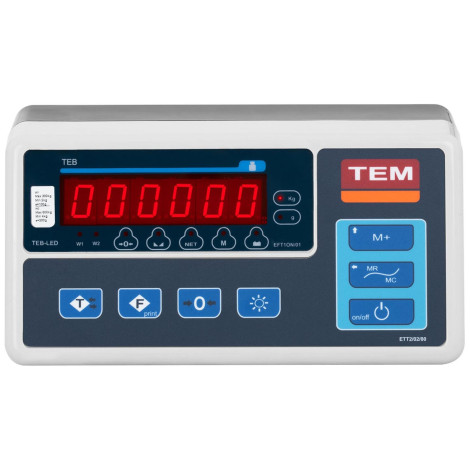

Control panel With buttons with readable symbols. The panel can be placed on a regulated tripod (80-120 cm) or attached to the wall (stand and holder in a set). Good visibility of measurements ensures
LED display. The indicators inform you about selected settings.
RS232 interface It allows you to conveniently connect the weight to the cash register or computer. The weighing platform was made of carbon steel with an anti-static coating and a Display of Hard ABS. Adjustable non-slip legs provide weight stability. Battery with a large capacity of 6 V / 4,5 Ah allows the device to work
40 hours. The device has been
calibrated (for a period of 2 years) and suitable for use right after unpacking.
Product features: - - Legalization - the right to trade with EU compliance declaration,
- - High precision - 100 g (300 kg), 200 g (600 kg),
- - Strength - carbon steel platform with an anti-static coating (100 x 120 cm),
- - Readability - bright, 6-digit LED display,
- - The functionality of - RS232 interface with Dialog 06 communication protocols, TEM, Tisa, Delta, NCI.
Technical data: - - Model - At1ta100x1200600m1-b1
- - catalog number - 10200044
- - article - New
- - tension - 230 V
- - Weighing range - 2-600 kg
- - Accuracy - 0.1 or 0.2 kg
- - Display - Led
- - weighing surface material - Carbon steel with an antistatic coating
- - power supply - Power supply + battery
- - working time on the battery - Up to 40 hours
- - Weighing surface - 1000 x 1200 mm
- - Calibration - So
- - Drawing - So
- - counting of pieces - Not
- - Saving - Not
- - zeroing - So
- - stop the result - Not
- - summation - Not
- - Change of units - Not
- - maximum permissible load - Do not exceed the maximum load
- - power details - Battery: 6 V / 4,5 Ah, power supply: 7.8 V 1.2 A
- - Cyfruit height - 20 mm
- - Working temperature - From -10 to 40deg c
- - graduation - 3000
- - weight unit - Kg
- - length of the power cord - 5 m
- - Energy-saving mode - So
- - WARNING BEFORE Overload - So
- - User manual - So
- - Dimensions (DXSXW) - 120 x 100 x 10.5 cm
- - weight - 70.5 kg
- - Dimensions of shipment (DXSXW) - 154 x 110 x 38 cm
- - shipping weight - 154 kg
Included: - - Weight with the certificate
- - power supply
- - Wall holder
- - Portable tripod
- - EN statement
