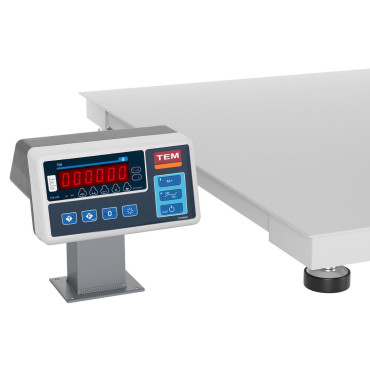

Industrial platform weight RS232 interface 1500 kg / 500 g LED M Legalization

Manufacturer's code: 10200047
Platform storage scale brand TEM It perfectly works well during exploitation in warehouses, wholesalers, various types of stores, and even in ports or airports. The product meets the requirements of the standard Ip20. Weight legalizedIt has a unique serial number, CE marking and is delivered to the EU compliance declaration. The weight has already been calibrated (for a period of 2 years) And can be used immediately after unpacking. Measurements take place in the areas: W1 - from 4 kg to 600 kg (accuracy of 0.2 kg) and W2 - min. 10 kg, max. 1500 kg (accuracy of 0.5 kg). High battery capacity (6 V, 4.5 Ah) Allows you to work up to 40 hours. Port Rs232 Allows you to connect to a fiscal or computer. Supported communication protocols are: Dialog 06, TEM, Tisa, Delta, NCI. The equipment is equipped with 4 legs with height adjustment. The panel was made of hard ABS plastics, while the platform 120 x 120 cm With antistatic coal steel.
Product functions:

• - Energy-saving mode,
• - WARNING BEFORE Overload,
• - calibration,
• - Drawing,
• - Reset.

Product features:

• - Approved by the "M # 8221 sign indicating the legalization of the weight,
• - Two weighing ranges (W1 max. 600 kg, precision 0.2 kg W2 up to 1500 kg, precision 0.5 kg),

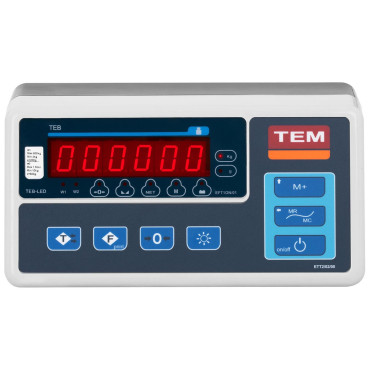

• - Display Led with a place for six digits,
• - carbon steel platform with antistatic coating (120 x 120 cm),
• - RS232 interface with communication protocols Dialog 06 / TEM / Tisa / Delta / NCI.

Technical parameters:

• - Model - At1ta120x1201500m1-b1
• - catalog number - 10200047
• - article - New
• - tension - 230 V
• - Weighing modes - W1, W2
• - Scope of the weight - W1: 4 kg - 600 kg / w2: 10 kg - 1500 kg
• - Precision - W1: 0.2 kg / w2: 0.5 kg
• - Display - Led
• - weighing surface material - Carbon steel with an antistatic coating
• - power supply - Power supply + battery
• - working time on the battery - Up to 40 hours
• - Weighing surface - 1200 x 1200 mm
• - Calibration - So
• - Drawing - So
• - counting of pieces - Not
• - Saving - Not
• - zeroing - So
• - stop the result - Not
• - summation - Not
• - Change of units - Not
• - maximum permissible load - Do not exceed the maximum load
• - power details - Battery: 6 V / 4,5 Ah | Power supply: 7.8 V 1.2 A
• - Cyfruit height - 20 mm
• - Working temperature - From -10 to 40deg c
• - graduation - 3000
• - length of the power cord - 5 m
• - Energy-saving mode - So
• - WARNING BEFORE Overload - So
• - User manual - So
• - Dimensions (DXSXW) - 120 x 120 x 10.5 cm
• - weight - 84 kg
• - Dimensions of shipment (DXSXW) - 152.5 x 131 x 38 cm
• - shipping weight - 167.5 kg

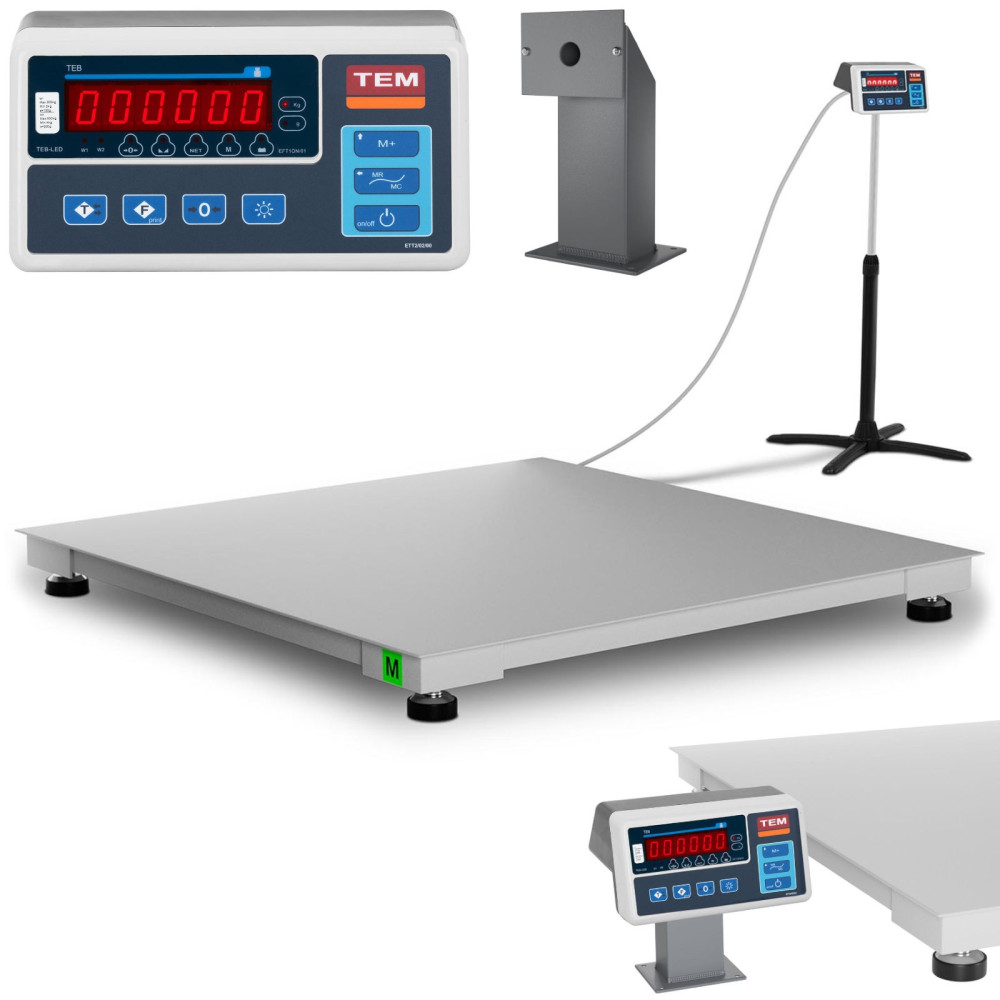

Included:

• - weight with Oiml certificate,
• - power supply,

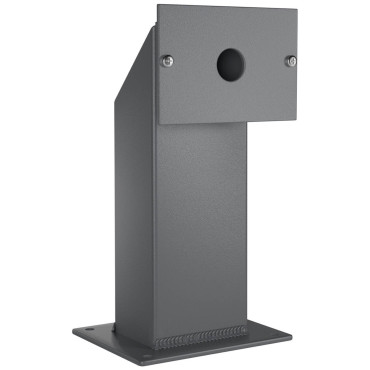

• - wall bracket,
• - portable tripod,
• - Operating instructions.
