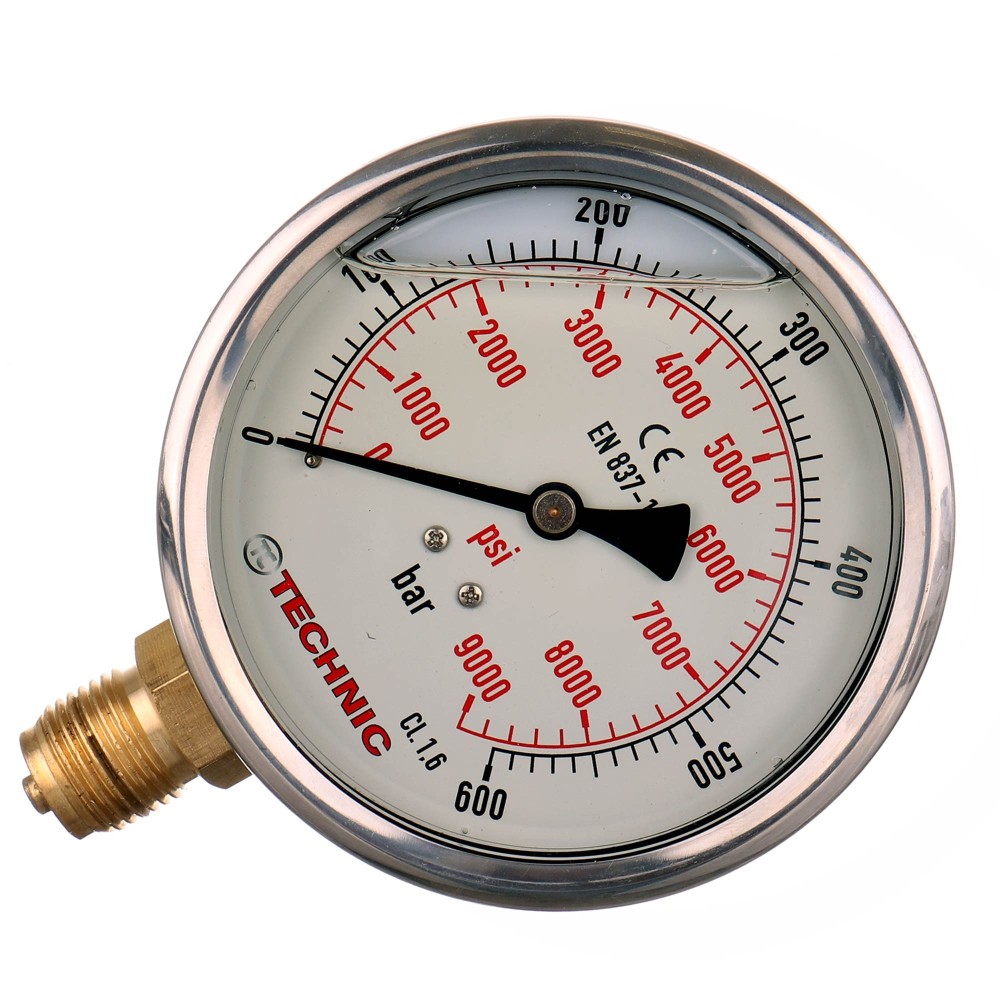

Gliceryn manometer. YT100GL-1/2 "0-600 bar 100mm bottom thread

Glicerine manometer 0-600 bar 100mm - lower 1/2 'fastening

A solid Glicerine TC Technic brand pressure monitor. Durable metal design and accurate measurement in bars and psi, an accuracy class of 1.6.

The gauge inside filled with glycerine, thanks to which the measurement is exact despite shocks and vibrations.

It has a plug to align pressure inside a gauge with atmospheric pressure.

Mounting with 1/2 inch thread.

Overall destination for measurements of gas and liquid pressure. Ideally suited for pneumatic and water installations, with air conditioning, ventilation, etc.

Technical data:

• Housing diameter: 100mm measured on the back (front 110mm),
• Steel housing,
• Mounting: 1/2 ", (approx. 20-21mm measured outside the thread of the caliper)
• Split: in Bars and Dogs,
• Maximum pressure: 600 bar,
• Accuracy class: 1.6,
• Weight: about 0.6 kg,
