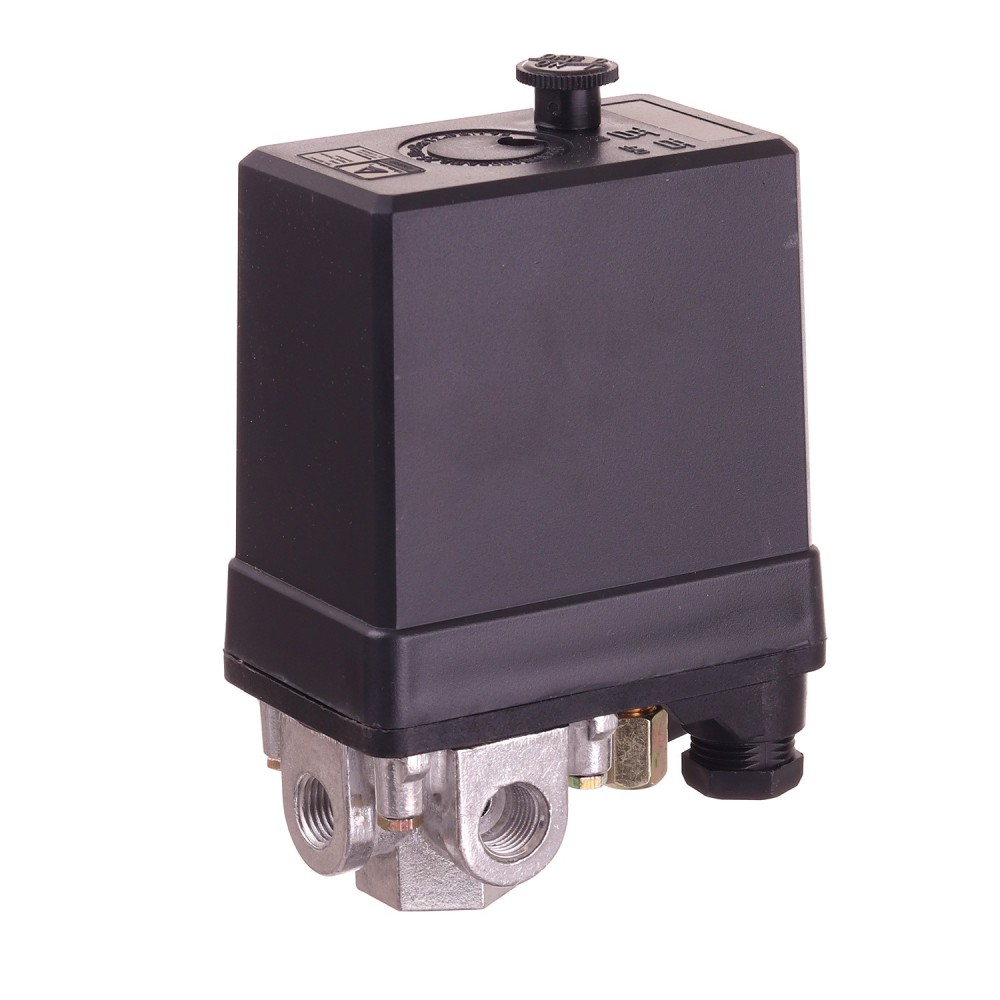

Pressure switch 400V LEADER 5.5KW Compressor compressor

Pressure switch 400V 25A 5.5KW

A three-phase pressure switch that supports the maximum power engines of 5.5kW. Connection threads 4x 1/4 'and a 6mm-hose connection or 1/8' (nut) thread. It has the ability to adjust the pressure switching on and off in the range of 3-12 bar.

Technical data:

• Pressure set factory - ON 6-8 OFF bar
• Dimensions (WYS X WIDE X DLO) - 140 x 100 x 50 [mm]
• Threads - 4 x 1/4 "1x 1/8"
• Maximum engine power - 5.5 [kW]
• Three-phase - Yes

No. cat. Cd032-2
