Manufacturer's code:
10200049Shop brand TEM has
legalization of and suitable
Calibration certificate. The equipment is equipped with a double-sided screen
LCD with backlight, a deep stainless steel platform, a large capacity battery and
Port RS232. The sale of products improves fast access with the button up to 8 selected articles (PLU). Legalization confirms the sign
Meters (
Black point inscribed in a square) on the nameplate. The device is delivered with the EU compliance declaration and a unique serial number. Two weight ranges (
W1 and W2 to choose from) They serve as much as possible to measurements as much as possible:
W1 min. 40 g, max. 6 kg, Precision 2 g
W2 min. 100 g, max. 15 kg, Precision 5 g. Seamlessly connect the weight to the cash register or computer using communication protocols
Dialog 06, TEM, Tisa, Delta, ACLASS, NCI - To choose from the menu. The balance is equipped with a double battery with a large capacity of 6 V 4.5 Ah, working until
up to 200 hours.
Product functions: - - backlight,
- - WARNING BEFORE Overload,
- - Saving,
- - summing,
- - Drawing,
- - Reset.
Product features: - - Approved by the "M # 8221 sign indicating the legalization of the weight,
- - Two weighing ranges (W1 6 kg, 2 g precision W2 max.15 kg, precision 5 g),

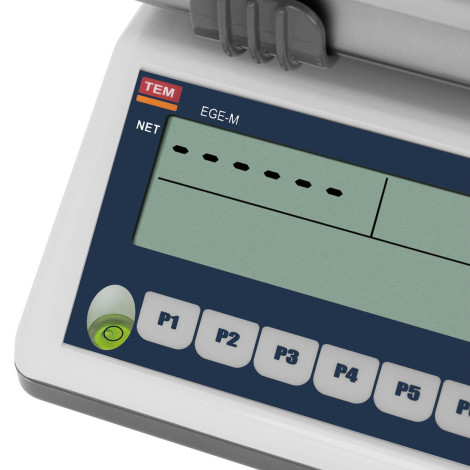

- - Double-sided display LCD with backlight,
- - Double battery with a capacity 6 V 4.5 Ah (200 hours of work),
- - button to select 8 articles (PLU)
- - RS232 interface with communication protocols Dialog 06 / TEM / Tisa / Delta / NCI.
Technical parameters: - - Model - Tem015c-PMD-b1
- - catalog number - 10200049
- - article - New
- - Weighing range - 0.04 - 15 kg
- - Precision - 2 or 5 g
- - Display - LCD
- - A surface of the weighing platform - 278 x 328 mm
- - counting - Not
- - WARNING BEFORE Overload - So
- - Saving - So
- - summation - So
- - Drawing - So
- - zeroing - So
- - Change of units - Not
- - Color - White / Silver
- - power supply - AC + battery power supply
- - Power - Details - 6 V / 4,5 Ah x 2 battery, 7.8 V power supply 1.2 and AC
- - Cyfruit height - 15 mm
- - Working temperature - -10 ~ 40Deg C
- - Material - Stainless steel and ABS
- - Weighing modes - W1, W2
- - Weighing range 1 - W1: min. 40 g, max. 6 kg, Precision 2 g
- - Weighing range 2 - W2: min. 100 g, max. 15 kg, precision 5 g
- - weight unit - KG, G
- - communication protocols - Dialog 06, TEM, Tisa, Delta, ACLASS, NCI
- - Max. Battery life - Up to 200 hours
- - User manual - So
- - Dimensions (DXSXW) - 33.5 x 35.5 x 15.5 cm
- - weight - 4.9 kg
- - Dimensions of shipment (DXSXW) - 37 x 34 x 23.5 cm
- - shipping weight - 6.2 kg
Included: - - Ege shop scale (OML certificate),
- - deep surface weighed,
- - power supply,
- - Operating instructions.
