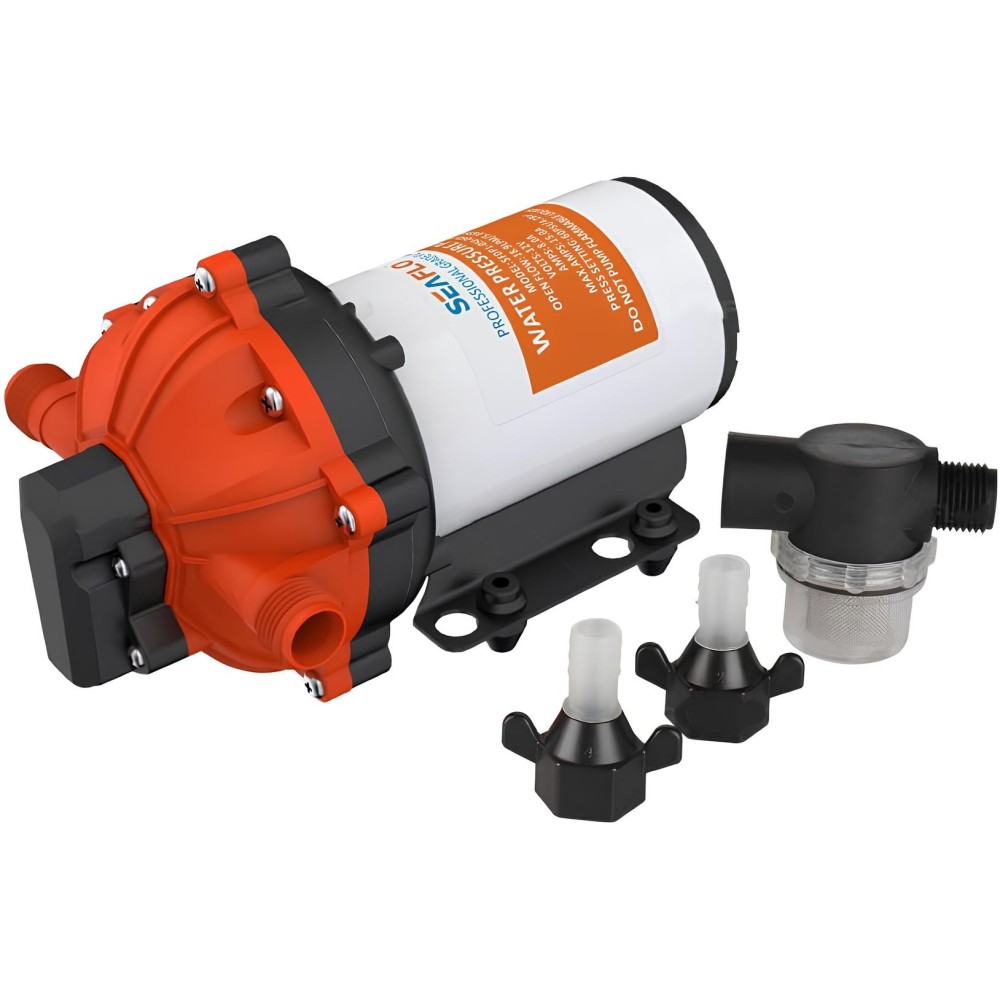

Used SEAFLO 55, 12V pump, 5.0 GPM 60 psi with pressure switch

Series 55 - Durable water pressure pump

Pumps from the series 55 are advanced devices that stand out with exceptional durability and efficiency. Equipped with the most durable market pressure switch, these pumps are ideal for various applications, from water installations to water supply systems in recreational vehicles and agriculture. Thanks to the large five-chamber membrane, they provide high water bandwidth with minimal energy consumption, guaranteeing a smooth flow. Series 55 provides up to 5.5 gallon per minute.

Main functions and benefits

• Multifunctionality: Can provide water to different systems, meeting the requirements at industrial, agricultural, marine and in RV applications.
• Precise pressure control: Series 55 pumps offer stable performance and pressure control, which translates into reliability of use.
• High tightness: thanks to waterproof and dustproof properties, the pump is resistant to difficult external conditions.
• Low boot pressure: reduces the risk of undesirable vibrations and noise at startup.
• Discharge of heat: It discharges heat well, which prevents the pump engine prevents.
• Safe dry effect: These pumps can act in dry mode without risk damage, which provides additional reliability.
• Application In different environments: it can be used for fresh and salt water, which makes it a versatile tool.

Technical specification

• Type: 5-chamber membrane pump with positive wiring, self-priming, resistant to water.
• Control: The pressure switch automatically starts and stops the pump.
• Maximum temperature: 60 ° C.
• Maximum suction depth: 6 feet (1.8 m).
• Starting pressure: 20 psi ± 3 psi.
• Cut-off pressure: 60 psi ± 3 psi.
• Ports: 1 / 5.1 cm-14 mnpt.

Engine and wiring

• Wires: 14 AWG, length 33 cm with a 2-pin connector.
• Work cycle: Continuous.
• Maximum current consumption: 17.0 A.
• Fuse: 25.5 A.

Typical applications

• Sea: Powering water systems on boats.
• RV: Waterworks on recreational vehicles.
• Agriculture: Spraying and irrigation systems.
• Industry: Filtration systems and production processes.
• Sunny water systems: integration with solar panels for water supply.

Series 55 pumps are reliable, easy to assemble and ideal for different applications requiring continuous access to water.
