Used SEAFLO 33 12 V / 24 V MEMBRANE PUMP 3.0 GPM 45 PSI Water Pump for Campers and Boat

SEAFLO 33 Series DC 12V 3.0GPM 45PSI MEMBER

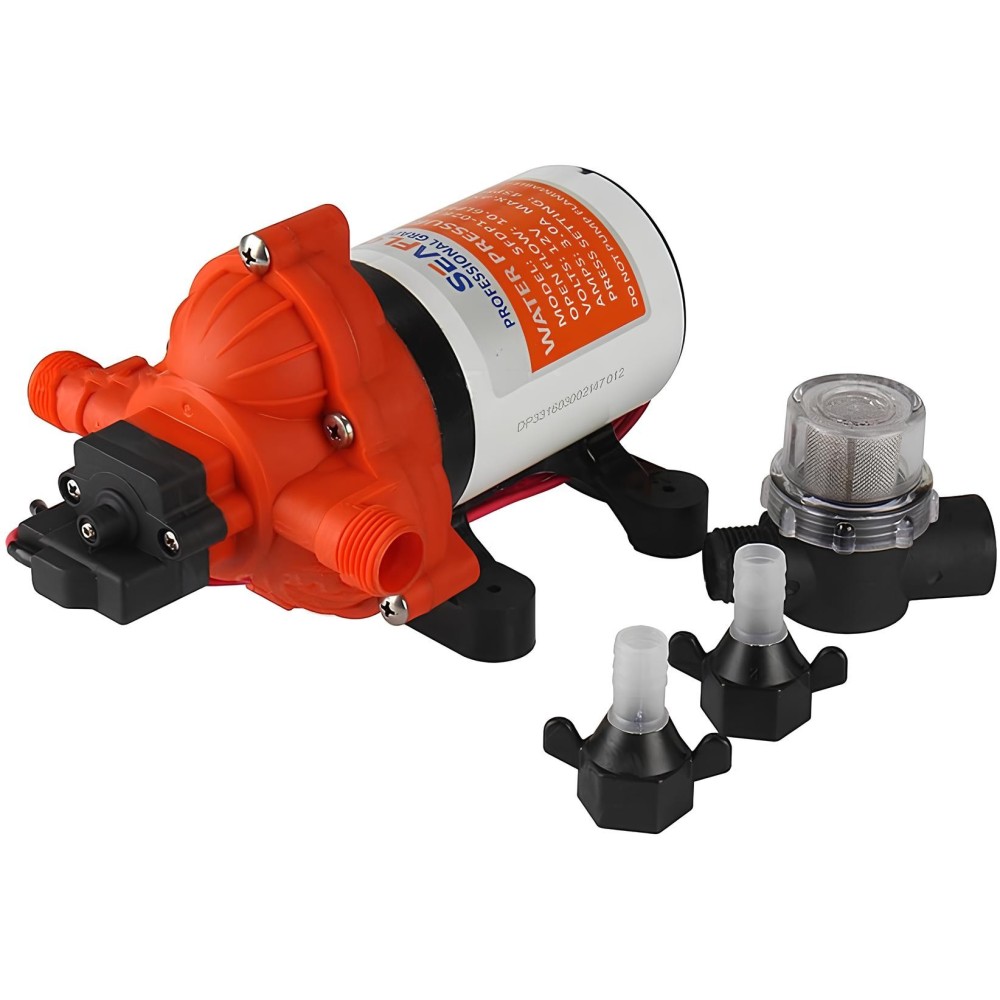

Series 33 are our general application of displacement pumps on demand. Provides reliable operation in applications requiring high water flow and moderate pressure. This membrane pump with 3 chambers supplies up to 3.0 gallons per minute and is capable of self-suction to 6 feet vertically and can work dry without damage. Supports 3 or more 1/2 "(13 mm) outlets. This automatic on-demand water pump has a built-in pressure switch that automatically starts and stops when the tap is open and closed. They are easy to install, service and wintering.

More functions and benefits

• Use on demand
• 16awg, 4,5-inch wires
• It can provide water to 1-2 taps.

Typical applications

Marine, RV, Agricultural Sprayers, General Industry, Filtration, Drinking Drinking, Solar Systems.

Details

Type: 3-Chamber Pump Demento Spumula, Self Suction, Drying Ability Control Type: Pressure Switch Maximum Recommended Temperature: 60 ° C (140 ° F) Suction Ability: 6 Feet (1.8 m) Suction heights RESTART pressure: turning pressure 45 psi: 35 psi ± 5 psi (± 0.3 bar) Inlet / outlet ports: 1/2 "-14 MNPT Weight: 4.2 LBS (1.9 kg)

Engine

Wires: 16 AWG, length 13 "(33 cm) with 2-pin connector / wires. Work cycle: Dotted maximum current consumption: 8.0 A Fuse: 12.0 A
