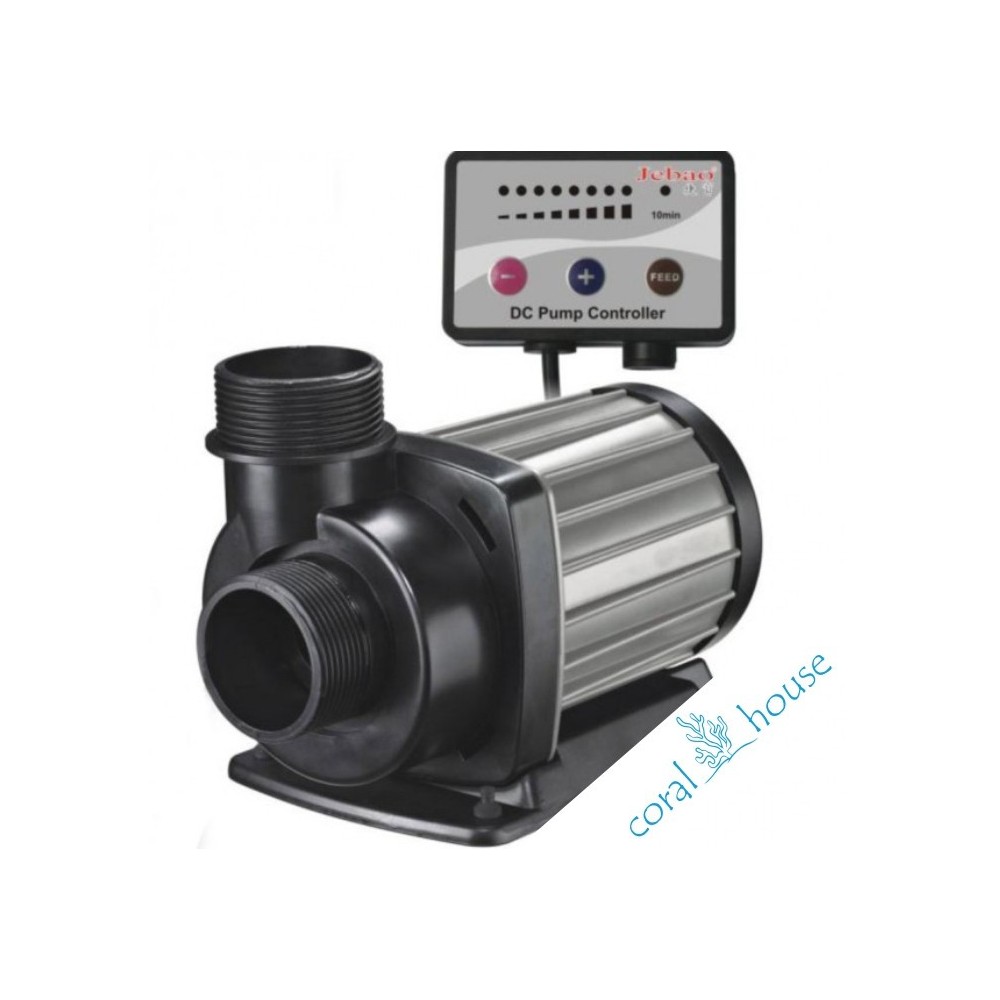

Circulation pump - Jebao DCT 8000 with a controller

DC-8000 is equipped with a number of practical solutions aimed at facilitating service and providing high quality and durability. The energy-saving engine is very well muted and does not generate excessive vibrations.

The drive is transferred to the rotor with a ceramic axis which significantly extends the service life of the device. In addition, the DCT-8000 construction does not contain any element made of copper. The pump has automatic protection against "dry" work, without water, thus eliminating the risk of associated failures. In addition, the device has a pump shut-off mechanism if the rotor is locked.

Using the DCT-8000 pump controller, it is possible to set the efficiency with which the device operates at a level of 2700 - 9000L. The controller also has a Feed function that breaks the pump operation for 10 minutes.

The most important differences between DC and DCT pumps
- Placing the entire electronics in the external controller. This solution gives you much greater opportunities during any failure - there is no need to replace the entire pump.
- Driver with 10 degree adjustment
- Greater work culture


Jebao changes the name to Jecod (Jebao Ecological Design)

Technical data:
Power: 68W
Yield: 2700-8000l / h (10 levels)
Maximum lifting of water column: 4.5

meters
Dimensions: 182x104x128mm (length x width x height)
