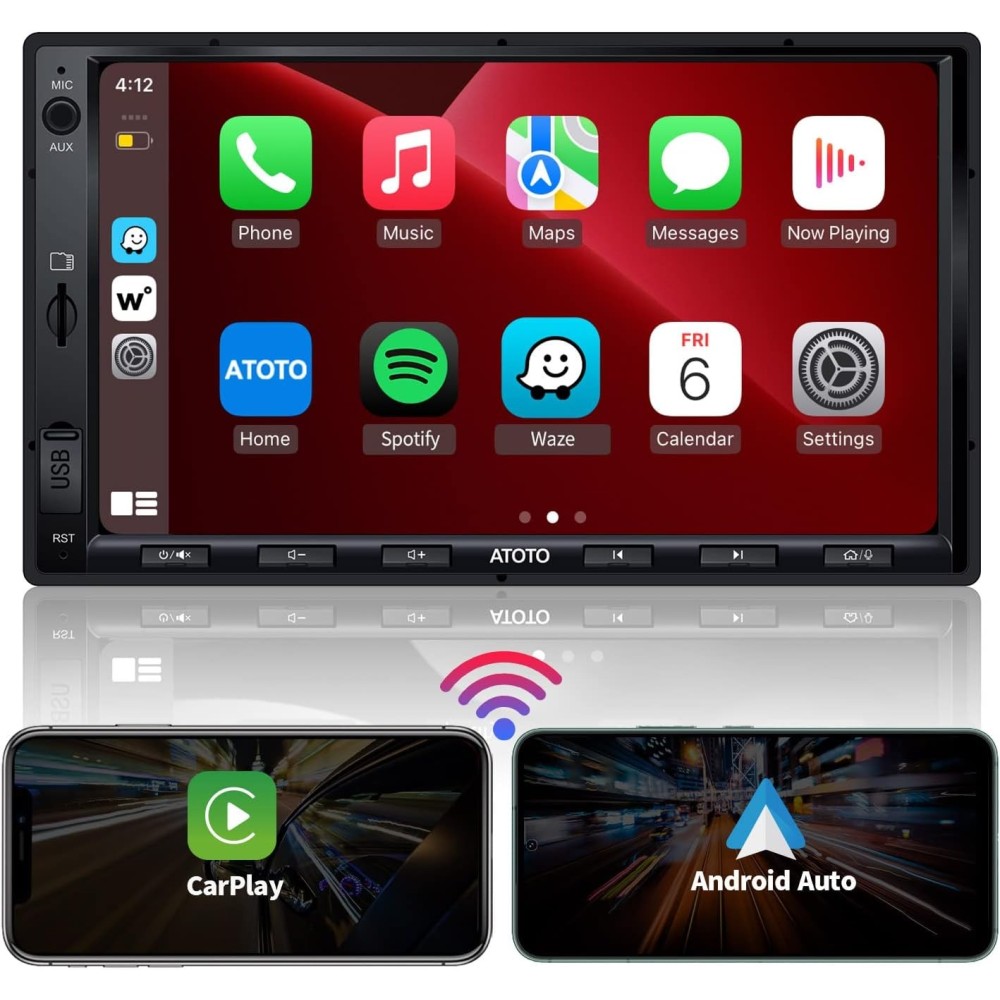

ATOTO F7 F7G2A7WE, 7 inch, Bluetooth, HD LRV, FM / AM, GPS

【Wireless Carplay】 F7 in Double Din Main unit offers wired and wireless carplay. You can get tips on navigational applications, such as Waze, enable your personal playlist on Spotify, ask Siri to call a friend etc., without the need to remove the iPhone. Really convenient, let alone about security. What a stress-free experience while driving! If you want to use Carplay navigation while listening to FM / AM radio or USB music, you will definitely recommend the Atoto F7 XE, A6 PF and A6 PP series.

【Wireless Android Auto】 F7 We also have a wired and wireless auto. Google Maps plans a route, YouTube Music recommends your favorite music genres, and Google Assistant performs connections and sends messages for you. In short, let the Android auto deal with stress, while you focus on guiding! If you want to use the Android Auto navigation while listening to FM / AM radio or USB music, it is definitely recommended to purchase the Ato F7 XE series.

【IPS HD screen, MirrorLink】 IPS 1024 * 600 screen offers classic, excellent Atoto brightness. Never worry about the lack of visibility of navigation tips in sunlight. Thanks to MirrorLink you can display your phone screen on an amazing F7 screen, completing Carplay / Android Auto. Also play local multimedia files and send them to headboard monitors for 2 RCA outputs on the back of the device. External memory supports 2TB SSD, and one SD slot reads to 512 GB, providing enough space for movies and songs.

【Live Rear View (LRV) with an ATOTO】 F7 reversing camera supports HD 720p retracking camera input. It's best to work with the Ato AC-HD02LR camera (not included), offering LRV, which allows you to see what is happening at the car all the time. In addition, F7 offers an input for the front camera, FM / AM, AUX audio input, streaming sound transmission via Bluetooth A2DP, built-in amplifier and eq etc. If you intend to maintain factory control from the steering wheel at Using the secondary market adapter, F7 offers a dedicated 3.5 mm socket. You can also simply get the ATOTO AC-44F5 remote control.

【Installation】 F7 EC is a universal Double DIN main unit with a real 7-inch screen (UDH07D). The dimensions of the front panel are 172 mm x 97 mm, compatible with most brands of mounting sets available on the market (metro / scosche / pac). After installation, you can enjoy seamless and integrated appearance of the dashboard. Atoto stands out against the background of other brands, offering professional pre- and after-sales services, along with continuous software updates and SBV (Search by Vehicle).

Product information:

• Product version: F7 Wireless Edition (EC).
• Model: F7G2A7We;
• Operating system: Sealed Core Systems;
• Assembly style: UDH07D (Universal Double DIN with 7-inch display wireless and wired Carplay and wireless and wired
• Android Auto: (Compatibility information is given in the appropriate sections below) Full HD 7 "1024600 IPS: Display with a viewing angle of 178 °, excellent brightness, a clear image even in full sun, you will never miss Important information; 5-point touchscreen Capacitive built-in amplifier max. 445W, RMS 4 * 24W: (VCC = 14.4V, THD = 10%, supports 4-8 OHM speakers); 10-band EQ from 7 presets
• Navigation: F7G2A7WE has a special hardware solution for integration of IOS Carplay or Android Auto with the system, so you can use iOS Maps or Google Maps / Waze / TomTom etc. on a large HD screen, O How much are available on your HD 720p phone and rear entrance with function
• Live Rear View: You can check the front view and from the back at any time, which increases driving safety (Atto AC-HD02LR back camera is required for LRV, sold separately)
• Bluetooth: Supports conversations without hand and streaming music; Safer riding when you can receive / end the calls, play / pause, switch tracks, adjust the volume, etc. on the main unit, by means of control from the steering wheel or with a wireless ATOTO AC-44F5 remote control (not in set
• Radio tuner: Built-in FM / AM radio tuner. F7 We do not support the DAB + function. If you want to listen to your favorite DAB + stations while driving, it is definitely recommended to purchase the Ato F7 XE, A6 PF and A6 PP series.
• 6 physical buttons: With 8 functions, they enable simple tasks, such as volume reduction while driving, easily
• Fixed firmware updates: Ato does not stop developing new firmware versions to add new functions and reduce the number of errors. You can download them when they are available.

Inputs, outputs and sockets

• Inputs: 3 video inputs, reversing camera entrance, AUX Audio / Video In & Front Camera Video In, they can process HD 720p video signals. For the input of the reversing camera, you can connect a specific back camera ato HD to F7G2A7WE for displaying 720p video (most other brands of the main units can only process video signals CVBS 480-600 lines);
• For F7 EC main units, a specific rear camera is AC-HD02LR (sold separately); AC-HD03LR is not compatible with the output: 2 RCA outputs to headboard monitors; 4-channel Audio RCA (4V) output for connecting to a factory / market amplifier; Separate subwoofer output (4V)
• External equipment for storage: one Micro SD slot - for storing media files, up to 512GB; 2 USB interfaces - one to connect to a telephone (Carplay / Android Auto / AutoLink), second for external storage and multimedia. This second reads to 2TB SSD. Both SD and SSD must be in FAT32 or NTFS format.

Adjustment to the vehicle:

• A real 7-inch screen: typically suppliers of mounting frames for the dashboard (subway, scosche, pac, etc.) offer double DIN mounting frames with a hole 174 mm * 98 mm, which limits the size of the units screen Main Aftermarket up to 6.75 inches or smaller (false 7 inches). Atoto is the first manufacturer that introduces real 7-inch android main units with a minimum size of the front panel 172 mm * 97 mm (tailored to commonly available assembly frames). If necessary, an additional frame adapter is also attached to extend it to 178 mm * 101.5 mm.
• Compatible with 3rd-party assembly sets: the standard chassis size for double DIN main units is 178 mm * 100 mm. In the case of front panel, however, there is no such standard. As a result, many users have problems with assembly of other brands of other brands with assembly sets commonly available on the market. F7G2A7We, with the size of the face plate 172 mm * 97 mm, is compatible with the products of most brands of assembly kits.
• Compact chassis for a larger space: the chassis has a depth of only 50 mm, shorter than a typical depth. That is why there is more room for wiring and other accessories.
• Additional accessories that may be needed to purchase: Because this is a universal fit unit, additional accessories may be required to complete the installation in a specific vehicle (not provided in the package). Responsibility for their preparation (if applicable) rests on the buyer. They may include (but not limited to) set of mounting frame, wiring harness, radio antenna adapter, data interface, etc.
