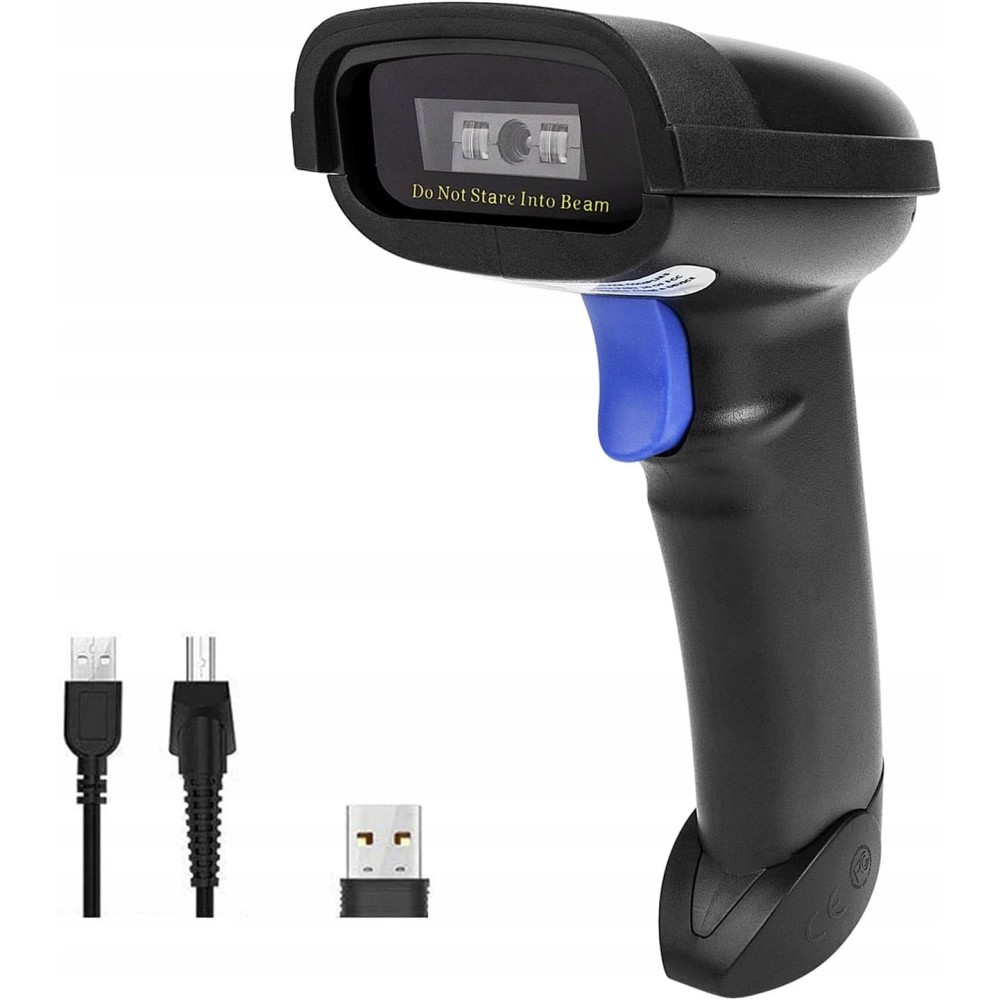

Barcode scanner Netum NT-1228BC, Bluetooth, 1D / CCD, Battery 2600mAh

Netum NT-1228BC Bluetooth Wireless 1D CCD barcode scanner

3-W-1 Connection construction Manual barcode scanner offers comprehensive connection options:

1. Bluetooth connection: Supports HID / SPP / BLE modes. Easily connects with laptops, PC, mobile phones, tablets, iPhones, iPads and POS systems. The effective transmission distance in obstacles with obstacles is about 10m / 33ft.
2. Wireless connection 2.4g: Supports RF Dongle HID-KBW and RF Dongle AS Virtual COM modes. Connects to devices with Dongla USB and works with Windows XP / 7/8 / 10, Mac OS and Linux systems. The transmission distance in an environment without any obstacles can reach 100m / 330ft.
3. USB connection: Supports USB HID-KBW and USB COM port emulation modes. Connects to devices using a USB cable. In wired mode, the user can scan bar codes during charging.

Advanced CCD sensor

• High resolution: 2,500 pixels for extreme performance.
• Quick decoding: Quickly decodes all 1D barcodes and stacked (including ISBN books), even worn, damaged or densely arranged.
• Wide scanning field: Scans from a distance of up to 12 inches and works in lighting up to 100,000 Lux.
• Scan engine 1D: Scans 1D codes directly from paper, screens (computer monitors, smartphones, tablets), glass surfaces and plastic packaging packaging.

3 trigger modes

1. Trigger mode with the key: The scanning light is activated only after pressing the trigger.
2. Continuous scanning mode: The scanning light is always enabled when the scanner is powered, allowing you to scan codes without pressing the button.
3. Auto-induction mode: The scanning light is turned off until the bar code is close, and then turns on to read the code.

2 data transfer modes

1. Immediate transmission mode: Reads barcodes and send them directly to an open file.
2. Storage mode: All scanned barcodes are stored in the internal memory of the scanner for later transmission in the lots.

Supported Symbologie 1D

• UPC / EAN / Jan, UPC-A & UPC-E, EAN-8 & EAN-13, Jan-8 & Jan-13, ISBN / ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 Of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, Jap, Code 11, GS1 DataBar, GS1 Databar Limited, GS1 Databar Expanded, Telepen.

System requirements

• Mobile devices: iOS, Android.
• PC devices: Windows 10 / 8.1 / 8/7 / Vista / XP / CE, Mac OS X, Linux.
• Note: Incompatible with Square POS.

Valid

• To switch from HID to SPP or BLE, scan the appropriate command code.
• To switch from the SPP or Ble on HID mode, ignore or remove "Bluetooth Netum", turn off Bluetooth, scan the HID command code, turn on Bluetooth and re-burn.

Supports 25 languages

• It supports many languages, including English, Spanish, German, French, Italian, Japanese, etc.
• Make sure that the scanner keyboard language is compatible with your computer's keyboard language to get correct results.
• The default factory of the scanner is English.

Programmable configuration

• Adding custom prefixes / suffixes, removing characters.
• Adding keypads / keyboard combinations (eg Tab, CR & LF, HOME).
• Turning the barcode types on / off according to your needs.
• Turning on / off signal, change of large / small letters.

This versatile and efficient barcode scanner is ideal for various applications, providing reliable performance and ease of use in various connection modes.
