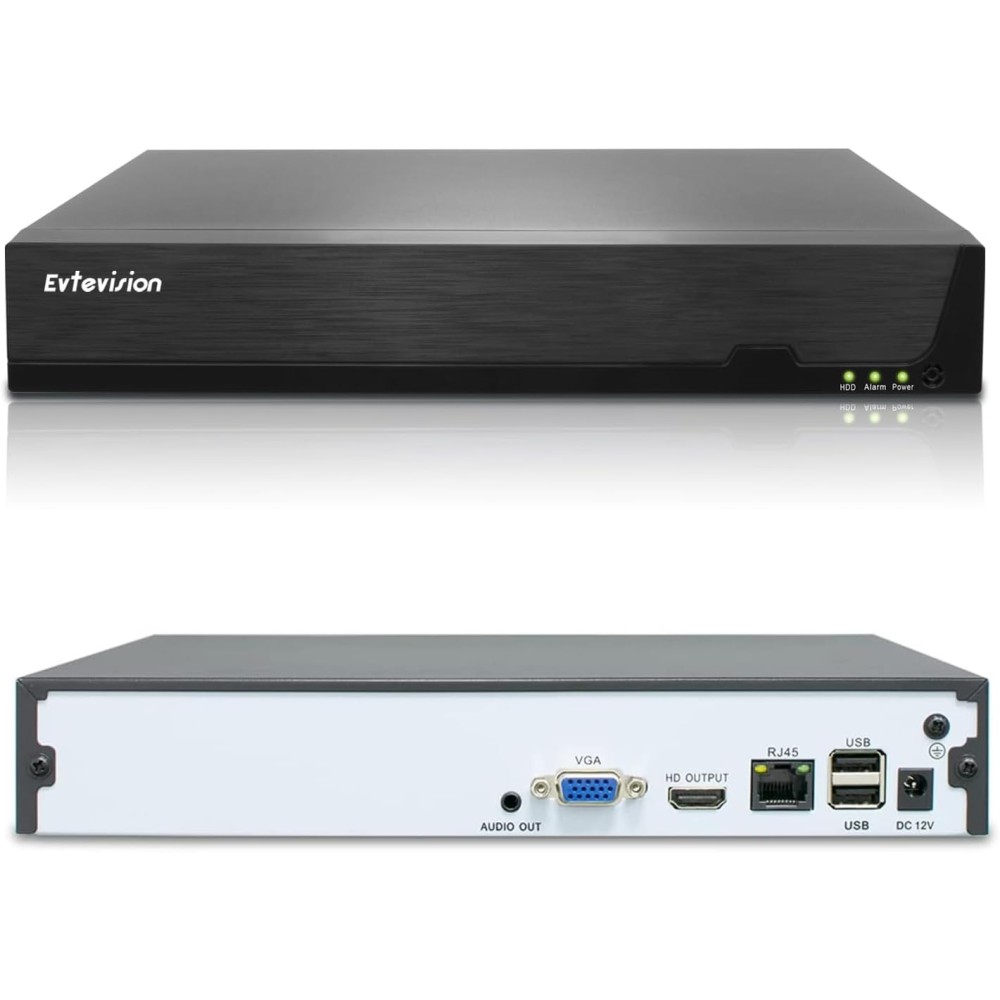

16CH NVR EVTEVISION Network recorder 8MP / 4K with support for 16 IP cameras

Ultra 4K NVR

This 16-channel 4K video recorder supports 16 IP cameras with a resolution of 4K / 5MP / 4MP / 3MP / 2MP, providing a preview in real time. Supports one hard drive with a capacity of up to 8TB (hard disk is not included). It has double HDMI and VGA outputs. Easy to install, ideal for home and company monitoring.

Easy remote preview

Simple Plug & Play configuration. Easy access and management. Scan the QR code on the NVR recorder in the "Xmeye Pro" application to immediately get live view and playback. It connects and manages all cam cam cameras, providing convenience in the home security system.

Detection of people and vehicles

The EVTEVISION 4K NVR recorder has been equipped with AI function that supports detection of people and vehicles. For the function to work, use it with intelligent IP EvteVision cameras. Recommended IP cameras: B0CN67QFF7, B07XQL7Z6W.

Wide compatibility

The EvteVision 4K NVR recorder supports other brands of other brands in accordance with Onvif and RTSP protocols (for live view). Automatic search of IP cameras on the network makes configuration easier.

Different recording and playback modes

The recorder can be adjusted by selecting various recording modes: manual, schedule or motion detection. Different play modes, such as events, tags and smart mode are also available.

Note

An internal hard disk is required; The device does not record or play without it. The hard disk should be purchased separately because it is not attached to the set.

Specification

• Video compression: H.265 +
• Video input: 16 channels 4K
• Video output: 1 HD channel (max 4k) / 1 VGA channel (max 1080p)
• Audio input / output: no Audio input / 1 channel 3.5 mm Audio output
• Preview resolution: 16 channels * 4K
• Playing resolution: 4K / 5M / 4M / 3M / 1080P
• HDD capacity: Support 1 HDD drive to 8TB (HDD not included)
• Network interface: 1 Port RJ45 10m / 100m
• USB interface: 2 x USB 2.0
• Power supply: DC12V
• Remote service (3G / 4G / WiFi): via IE browser and iPhone / iPad / Android / PC Client applications
• Recording mode: manual / alarm / motion detection / schedule
• Backup mode: Network backup / USB drive / USB recorder / SATA recorder

Contents of the package

• 1 x NVR
• 1 x DC12V power supply
• 1 x USB mouse
• 1 x HDD screw screw set
