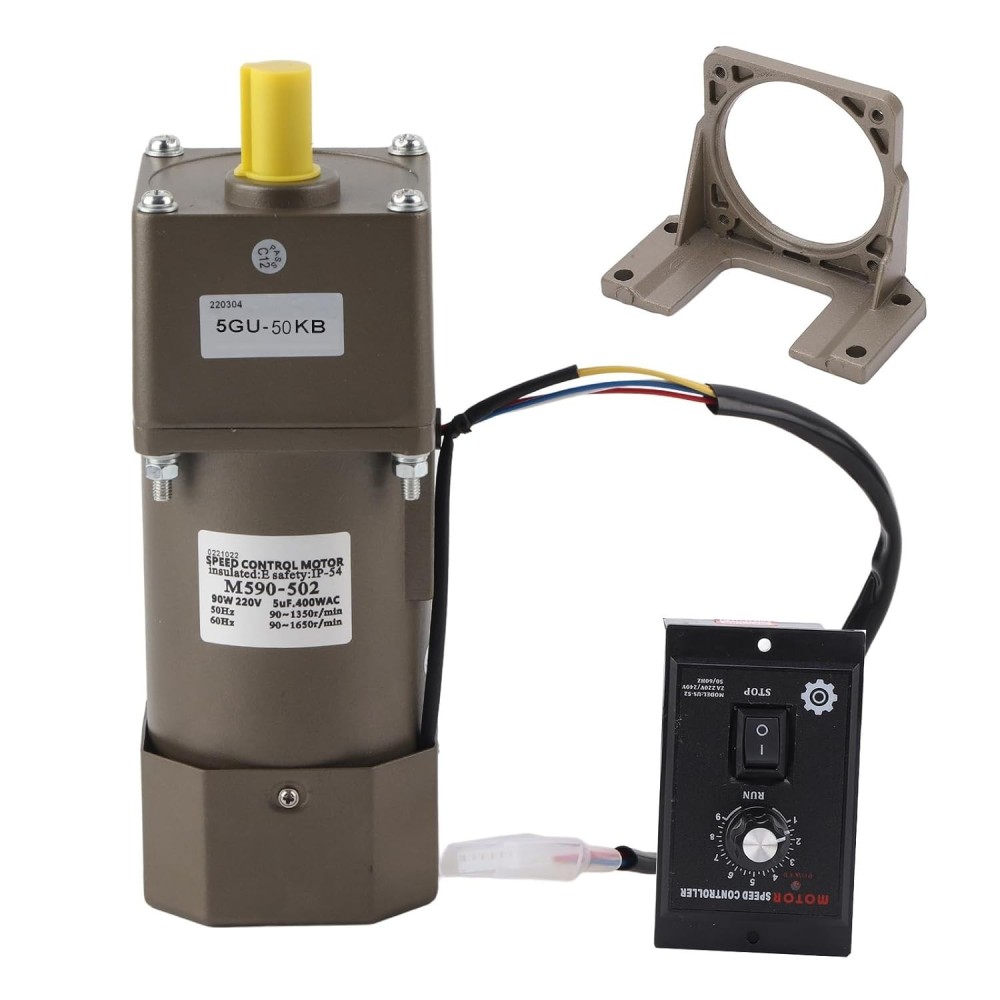

FTVOGUE 5GU-50KB AC 220 V 90 W motor with variable speed

Gear engines are used primarily to reduce speed in a number of gears, which in turn generates a greater moment of force.

AC 220 V, 90 W, high torque, reversible and adjustable speed.

Low vibrations, quiet, high quality engine.

High speed and energy savings, excellent performance.

Suitable for the packaging industry, machine tools, means of transport, textile machines, automatic welders, automotive industry, Wind Machines, etc.

Product specification:

• Reduction factor: 5K / 10K / 20K / 50K / 100K
• RPM (turnover per minute): 280/140/70/28/14
• Maximum torque: 2.58 / 5,16 / 10,3 / 20/20 Nm
• Model: M590-502
• Material: metal
• Number of poles: 4 Poles
• Rated power: 90W
• Rated voltage: 220 V AC, 50/60 Hz
• Weight: 5250 g
• Aperture: M6 / φ7
• Spacing holes: 73.5 mm
