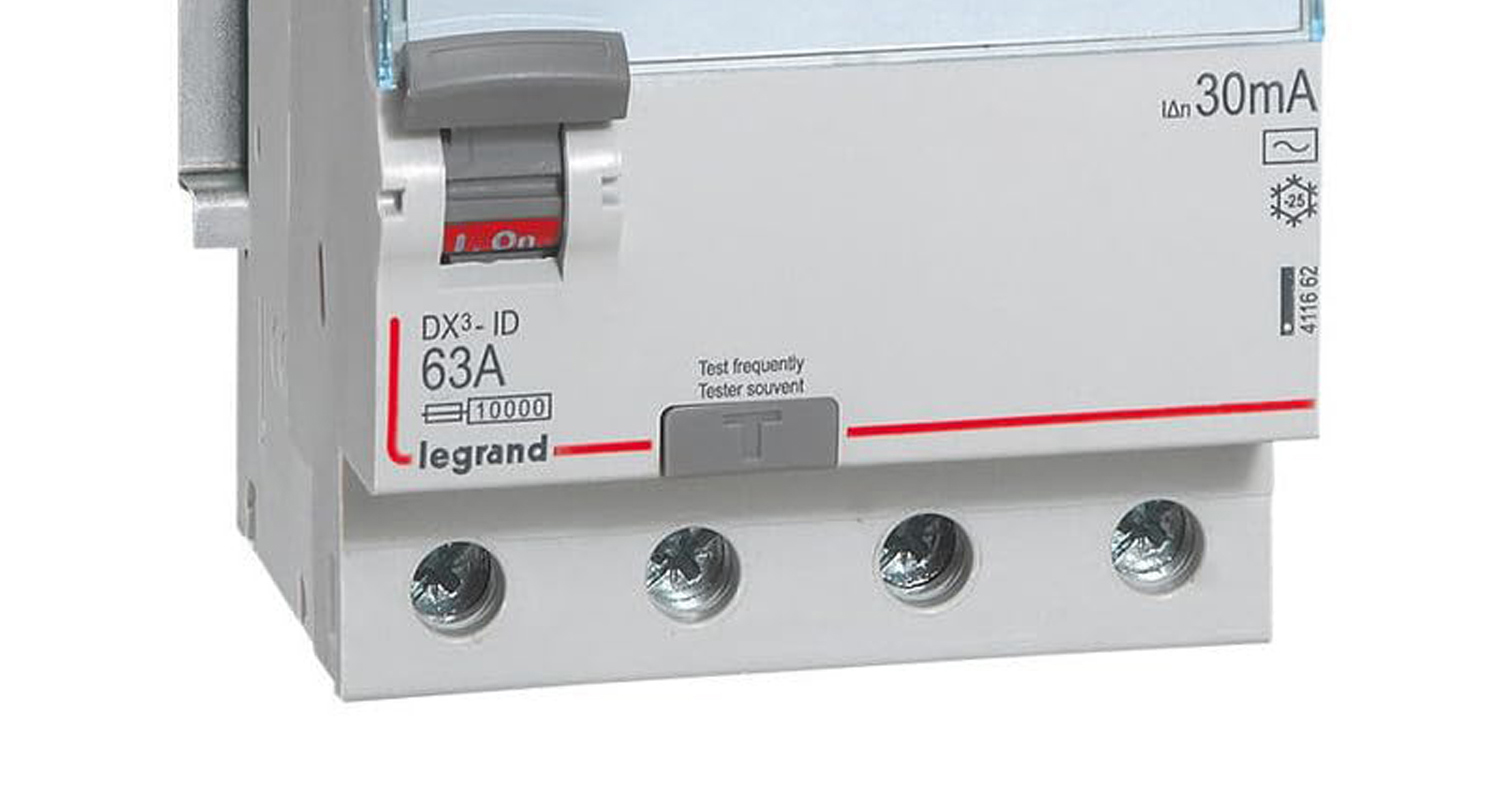

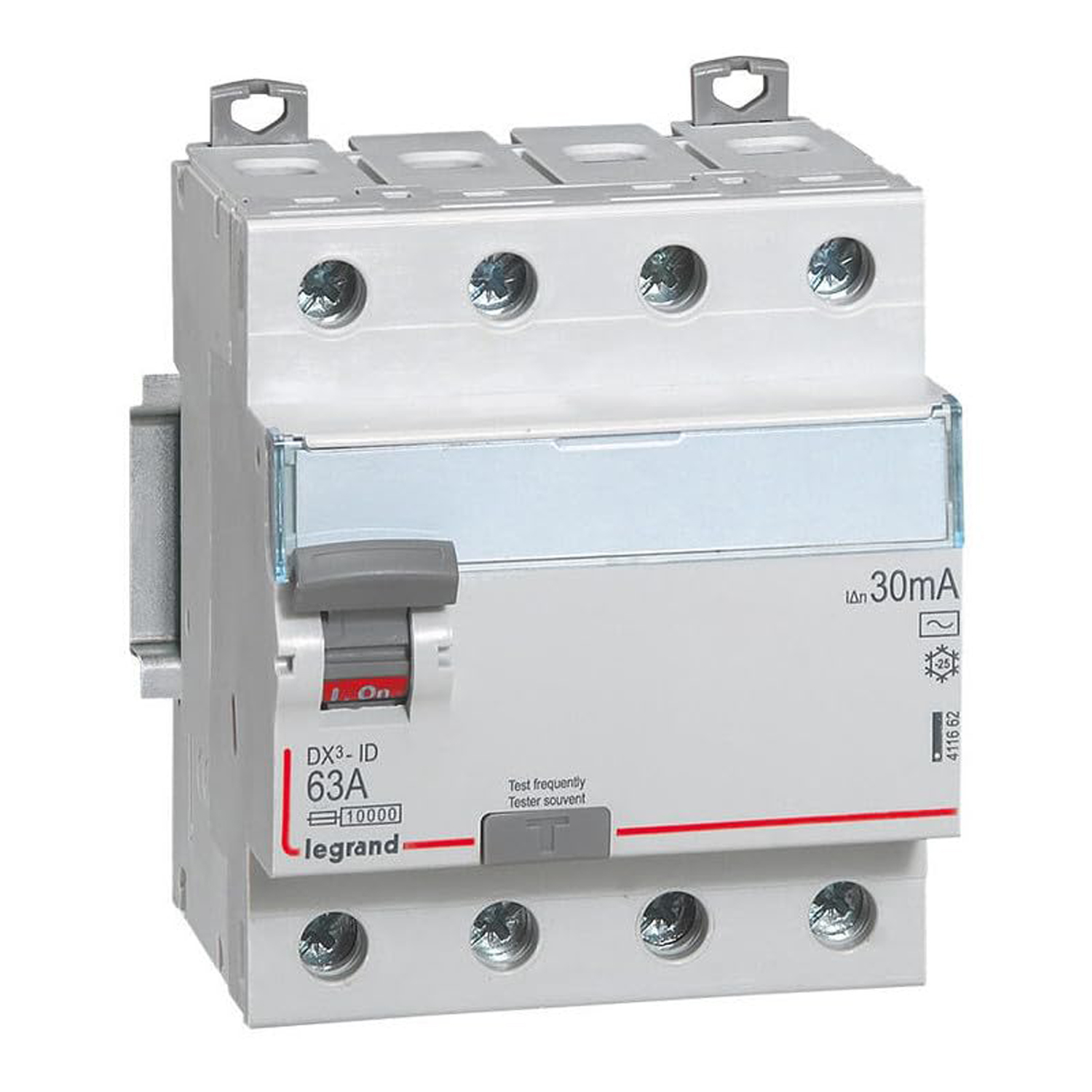

Differential switch LEGRAND BP 30076 DXL-ID 4P 400V Type AC 30MA 63A

Consistent with NF EN 61008-1.

• Type AC: detects alternating current damage.
• Type A: Detects the damage to AC and DC (Special circuits: cookers, heating plates, washing machine ...).
• Type F: detects a variable and solid damage, increased resistance to accidental liberation and detection of high frequency leakage.
• Type B: Detects alternating and solid current damage and smooth solid currents (variable speed machines, photovoltaic installations, telephone centers, medical equipment ...).

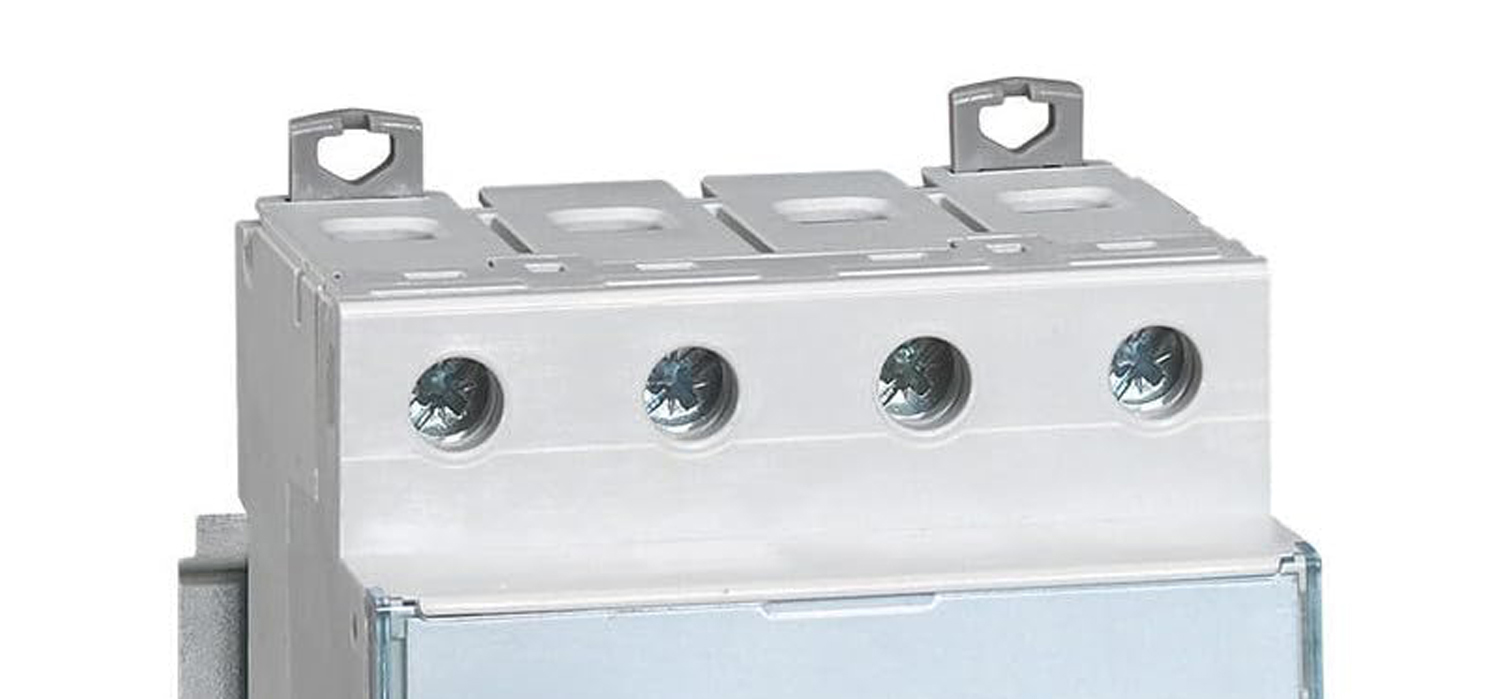

Accepts auxiliary contacts, motor drives and DXL connection modules (except type B). Screw connection: High input and low output using screw terminals.
