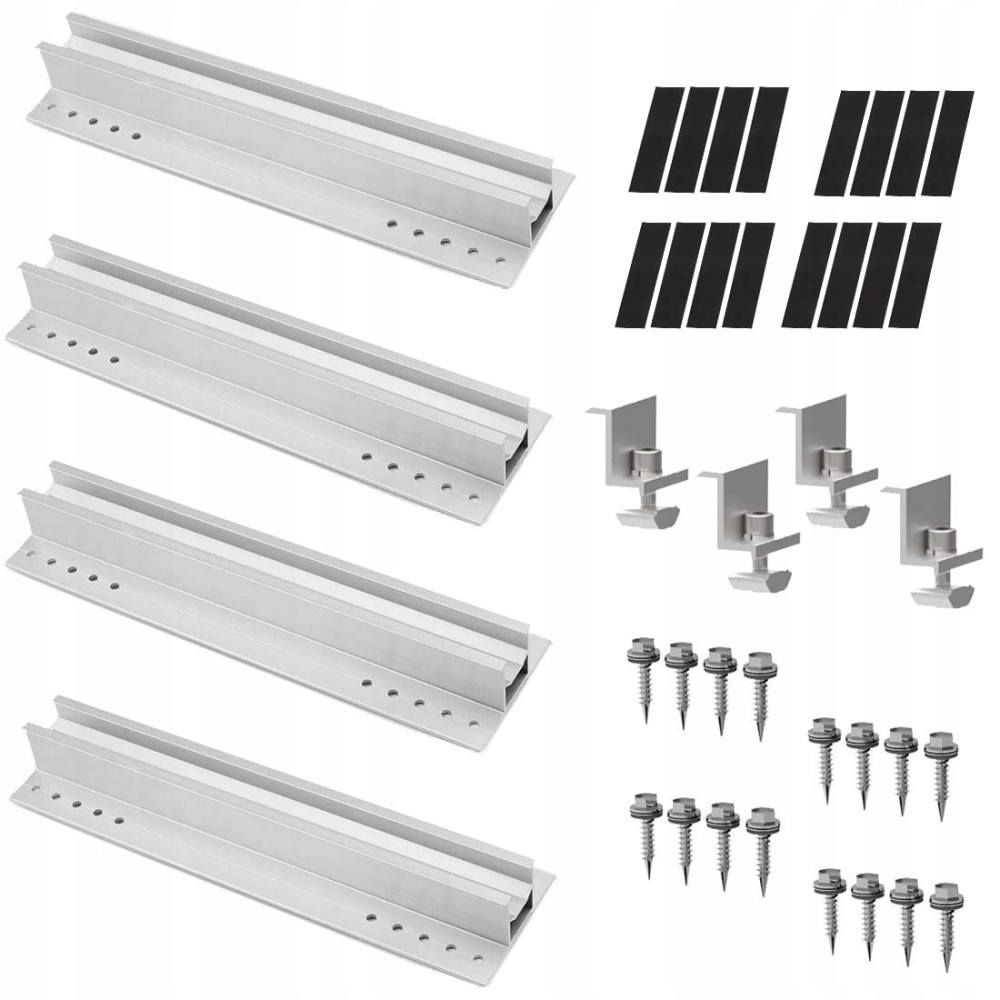

Mounting system for solar panels RDYMONKEY 4xSzyn + 4x terminal clamp

Application: Short T30 rail for Mounting from PV trapezoidal sheet. On the roofs made of trapezoidal sheet from the outer sheet. The solar module handle is suitable for attaching connected to the network and independent of the network of solar modules and provides huge advantages when installing solar modules on the roofs of caravans, boats, yacht decks, houses, etc., Also with different irregular surfaces.

Profile material T30: Solar handle is made of anodized aluminum alloy AL6005-T5, 1.00 KN, which is characterized by high resistance to corrosion, resistance to UV radiation, high-resistant insulation Frequencies, etc. does not adversely affect normal operation even with high load, or cold and heat. Application: Durable.

Requirements - trapezoidal sheet, minimum steel thickness: 0.5 mm / aluminum 1.00 mm. The surface of the side photovoltaic handle is pressed and polished by a precise machine. The structure of grooved slats is more powerful to the solar panel.

Easy assembly and disassembly: The photovoltaic aluminum alloy holder is supplied with a complete set, and the quantity is enough to meet your installation requirements. Fits 30 mm solar panels (table size see photo). This type of assembly reduces the strength of suction on the outer coating of the roof covering thanks to the weight of the PV system.

Set for attaching 2 x solar panel: 6 x aluminum profiles after 300 x 80 x 35 mm (length x width x height), 4 x end terminal 35 mm, 2 x 35 mm central clamp, 24 x stainless steel screws, 12 x Rubber washers.

Thanks to connecting the solar panel and fastening to the track, they ensure that modules are installed in the right position and orientation.

• Material: Aluminum alloy 6005-T5; Corrosion resistance, anodized surface treatment.
• Easy installation, saving time and labor costs.
• Light and comfortable.
• Suitable for most frame modules available on the market.

Specifications:

• Product type: Solar collector Mid terminal terminal End terminal
• Material: Aluminum
• Recommended Setting: Inside / Outdoor
• Properties: All daylight conditions, corrosion resistant, does not require maintenance
• Application: Agriculture / Agriculture, Aquaculture, Car, Emergency Power, Camping / Wandering, Commercial, Electronics, Home / Garden, Irrigation, Sea
• Strength properties: abrasion resistance, chemicals, corrosion, dustproofness, resistance to dust.

Compatibility:

• Up to 1 solar panel you only need 【4 rails + 4 end terminals】
• Up to 2 solar panels, you need 1 x (4 x bus + 4 x end terminals), 1 x (2 x rail + 2 x central terminal)
• Up to 3 solar panels, you need 1 x (4 x bus + 4 x end terminals), 2 x bus + 2 x center terminal)
• Up to 4 solar panels, you need 1 x (4 x bus + 4 x end terminals), 3 x (2 x bus + 2 x central terminal)
• Up to 5 solar panels, you need 1 x (4 x bus + 4 x end terminal) + 4 x (2 x bus + 2 x center clamp)
• Up to 6 solar panels, you need 1 x (4 x bus + 4 x end terminal) + 5 x (2 x bus + 2 x central terminal)
• Up to 7 solar panels, you need 1 x (4 x bus + 4 x end terminal) + 6 x (2 x bus + 2 x center clamp)
• Up to 8 solar panels, you need 1 x (4 x bus + 4 x end terminal) + 7 x (2 x bus + 2 x middle clamp)
