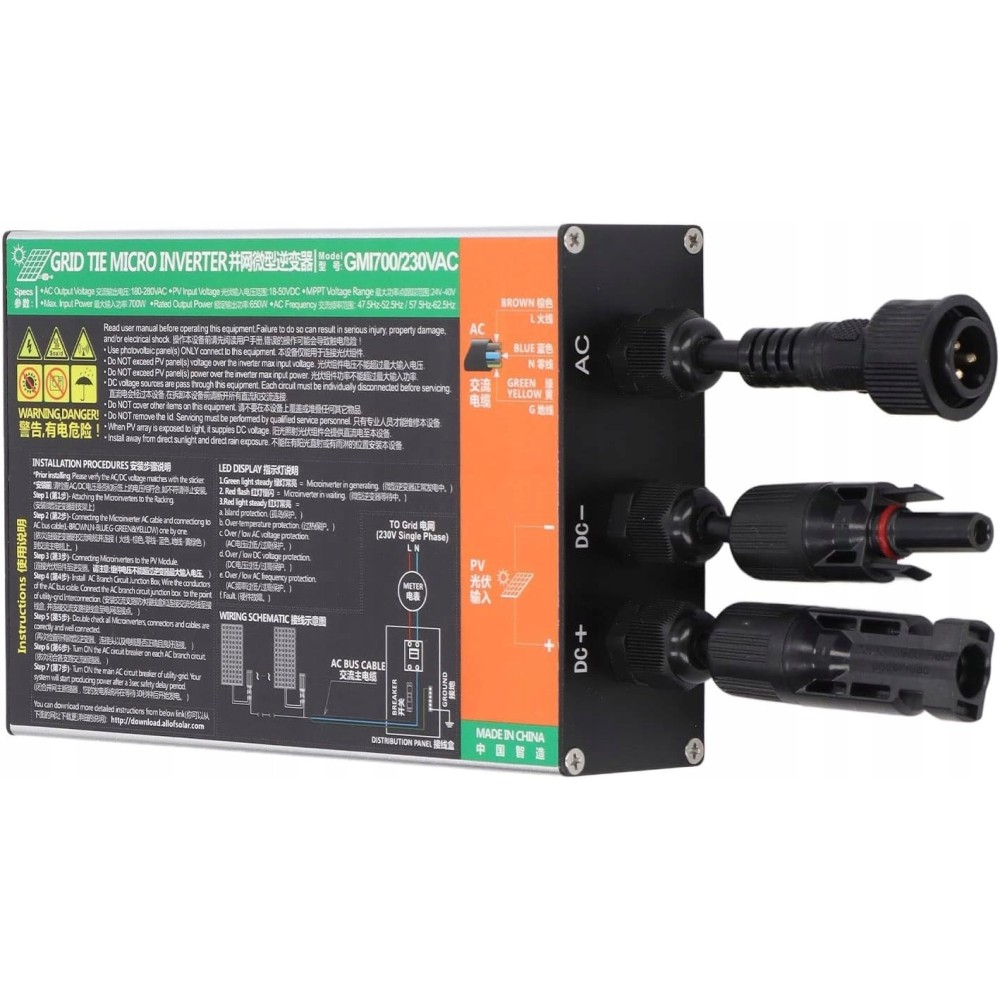

Sunny Microinwerter Ailao 700W MPPT, inverter with clean Sinusoid AC230V

【Strong practicality】: 700W Solar network inverter is a device that transforms the constant current generated by solar panels to the current, mainly used in solar energy production systems.

【Aluminum alloy material】: Solar microinwerter is made of aluminum alloy, which ensures good thermal conductivity, resistance to rust and corrosion, enabling long-term use.

【High conversion factor】: The MPPT network inverter is characterized by high conversion efficiency, which can reach 92.5%, which improves the efficiency of use.

【IP55 watertight】: 700W Network solar inverter, IP55 protection degree, can withstand daily use, offering various security methods, which allows for safe use.

【Precautions】: Solar network inverter must be connected to the network to work, and can only be used with solar panels, not with batteries.

Specifications:

• Material: Aluminum alloy
• Inverter housing size: about 16.3x10.1x4cm / 6.42x3.98x1.57in
• The shape of the output voltage: Sinusoidal wave
• Photovoltaic output (DC): 230
• MPPT voltage range: 24-40v
• Working voltage range: 18-50v
• Maximum input voltage: 50v
• Starting voltage: 18v
• Maximum input power: 700w
• Maximum entrance current: 24a
• AC output (variable current):
• Nominal starting power: 650w
• Maximum output power: 700w
• Nominal AC current: 230V: 2.82A
• Output voltage range: 230V AC: 180V-280V
• Nominal AC frequency: 50hz
• Range of the output frequency: 50hz: 47.5-52.5Hz / 60Hz: 57.5-62.5Hz
• Output power factor: > 0.99

Notes:

Due to the differences in monitors and light effects, the actual color of the item may slightly different from the color shown in the pictures.

Please allow a deviation in measurements of 1-3 cm due to manual measurement. Thank you for understanding!

Packing list:

• 1 x solar network inverter
• 1 x AC output cable
• 1 set x assembly screws
