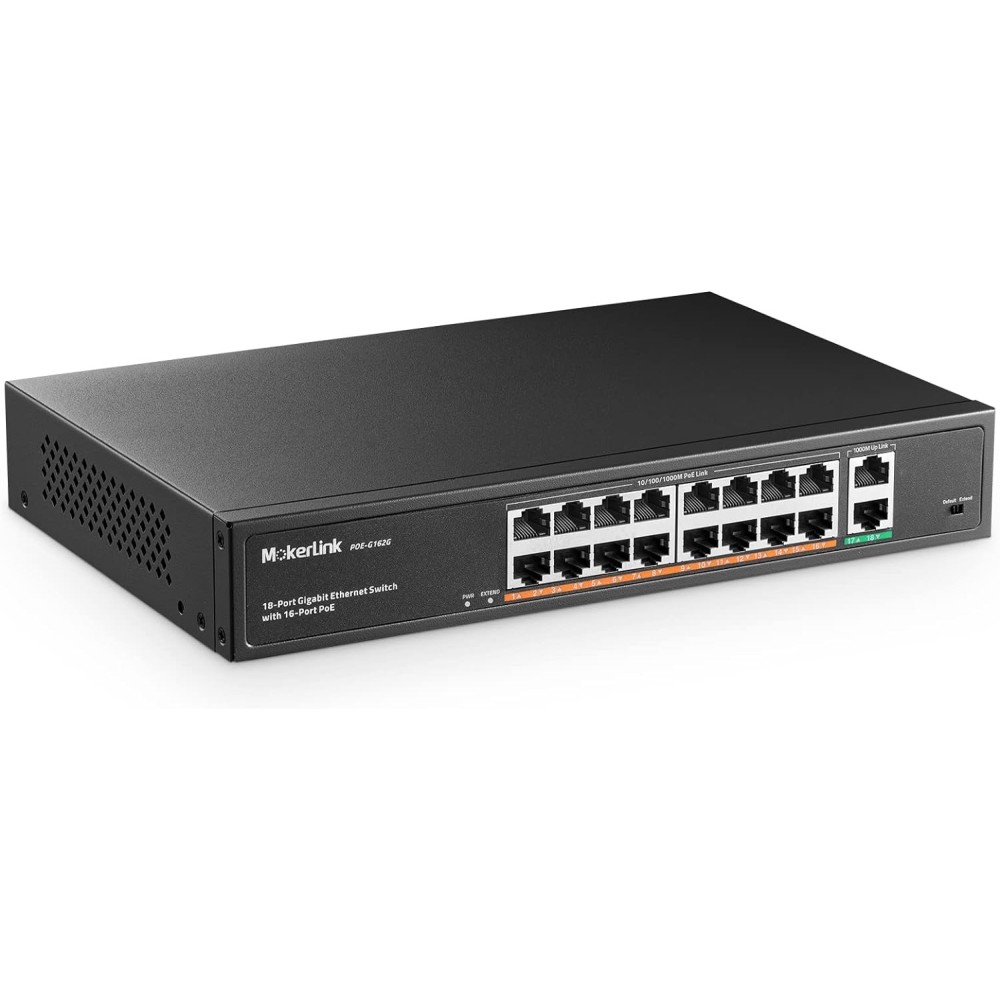

18-Port Gigabit PoE MokerLink Poe-G162G, Plug and Play Switch

18 Gigabit Ethernet ports:

• Contains 16 Gigabit PoE + ports and 2 Gigabit Uplink ports.
• All ports support the speed of 10/100/1000 Mbps for fast transmission.
• Two Uplink ports provide flexible combining various network devices, such as routers, NVR, servers, etc.

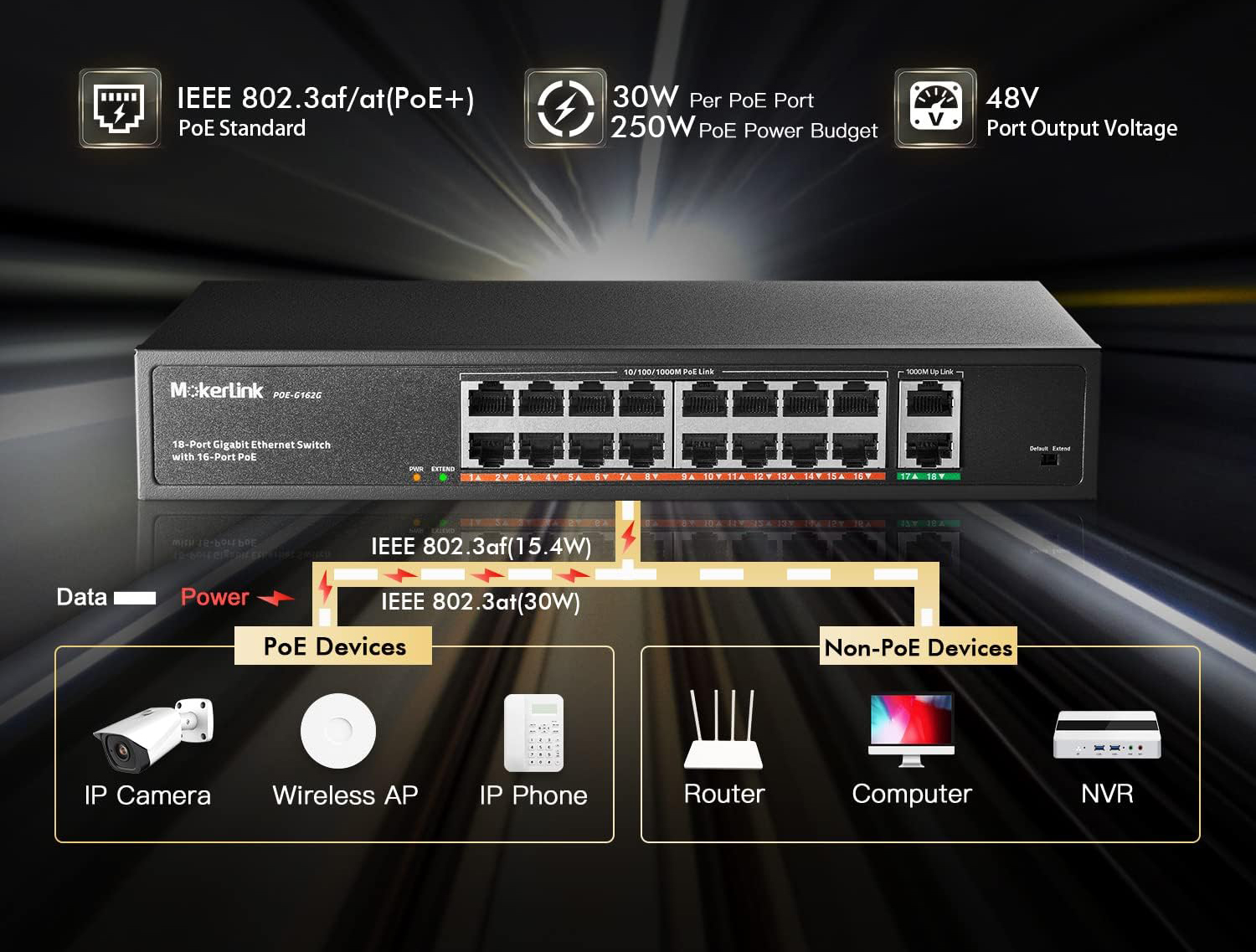

High power PoE:

• Maximum support for 250W output power.
• The built-in power supply facilitates installation.
• Supports IEEE 802.3AF / AT, each port provides a maximum of 30 in power.
• NOTE: Does not support PoE 24V passive.

Unmanaged Plug & Play:

• The power detection function automatically detects the device.
• Compatible with devices without PoE to ensure data communication.
• Easy configuration: Just connect the power cable and directly connect the Ethernet cable to the device to use without configuration.

Extensions function:

• The movement is isolated between PoE 1-16 ports, communicating only with Uplink 17/18 ports.
• Reduces network overload, increases the use of bandwidth and improves network security.

Wide application:

• Small and compact design.
• A durable metal housing.
• LED indicators and industrial fan provide good ventilation.
• Wide application in home and business networks, such as IP cameras, wireless access points, network devices, etc.

Full speed Gigabit:

• 16x 10/100 / 1000M PoE + and 2x 10/100 / 1000M ports Uplink ports.
• Provides sufficient bandwidth to avoid narrow leather on the web.

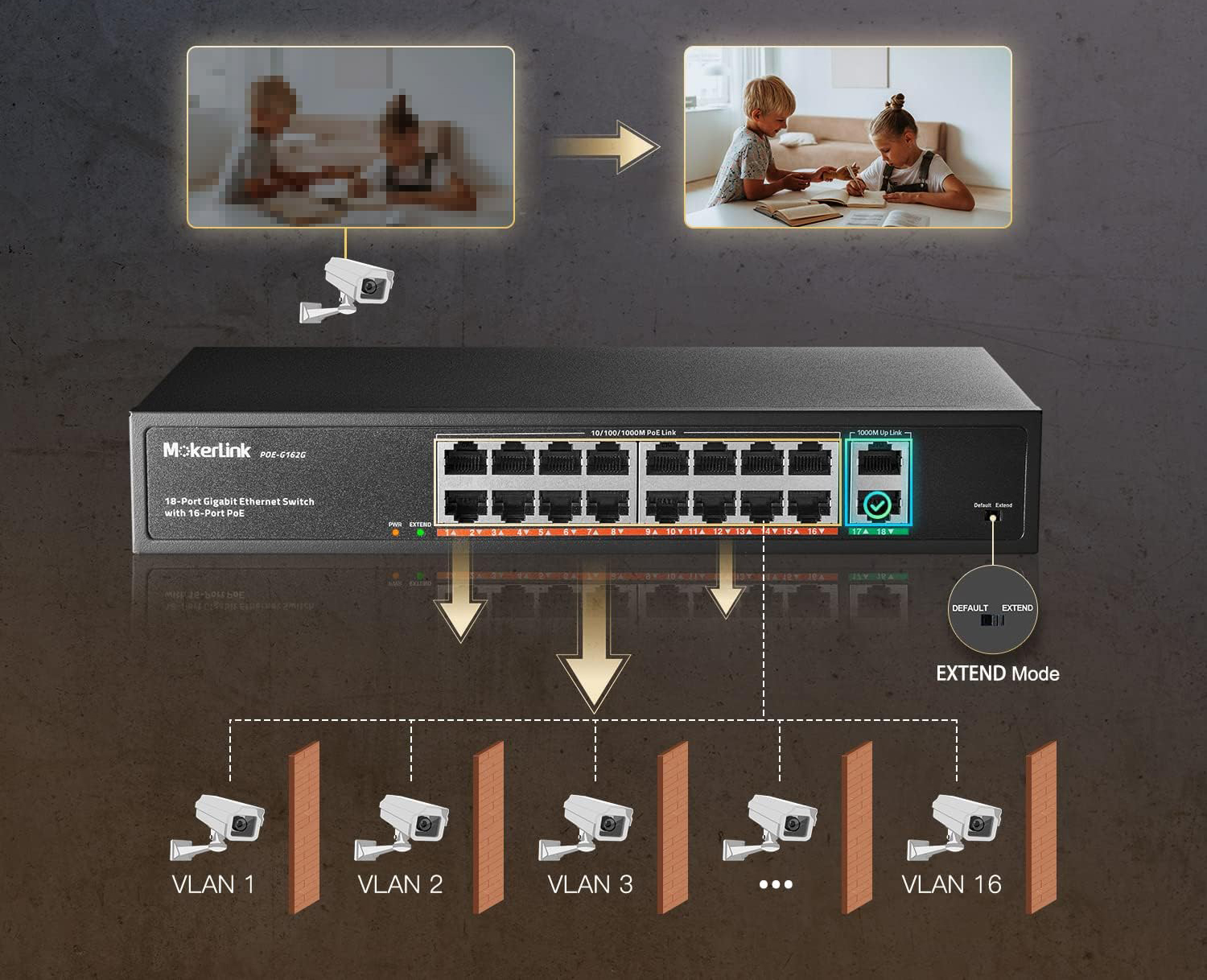

VLAN based on the port:

• In port on PoE ports mode, it is isolated from each other, but can communicate with Uplink 17/18 ports.
• Used when you want to run multiple devices / networks on the same physical infrastructure, but you want to separate them, which improves safety, efficiency and network management.

Protection against overvoltages 6KV for power supply:

• The project provides solving against surge protection for power switch.
• It helps to prevent the switch damage and connected devices caused by sudden surges and atmospheric discharges.

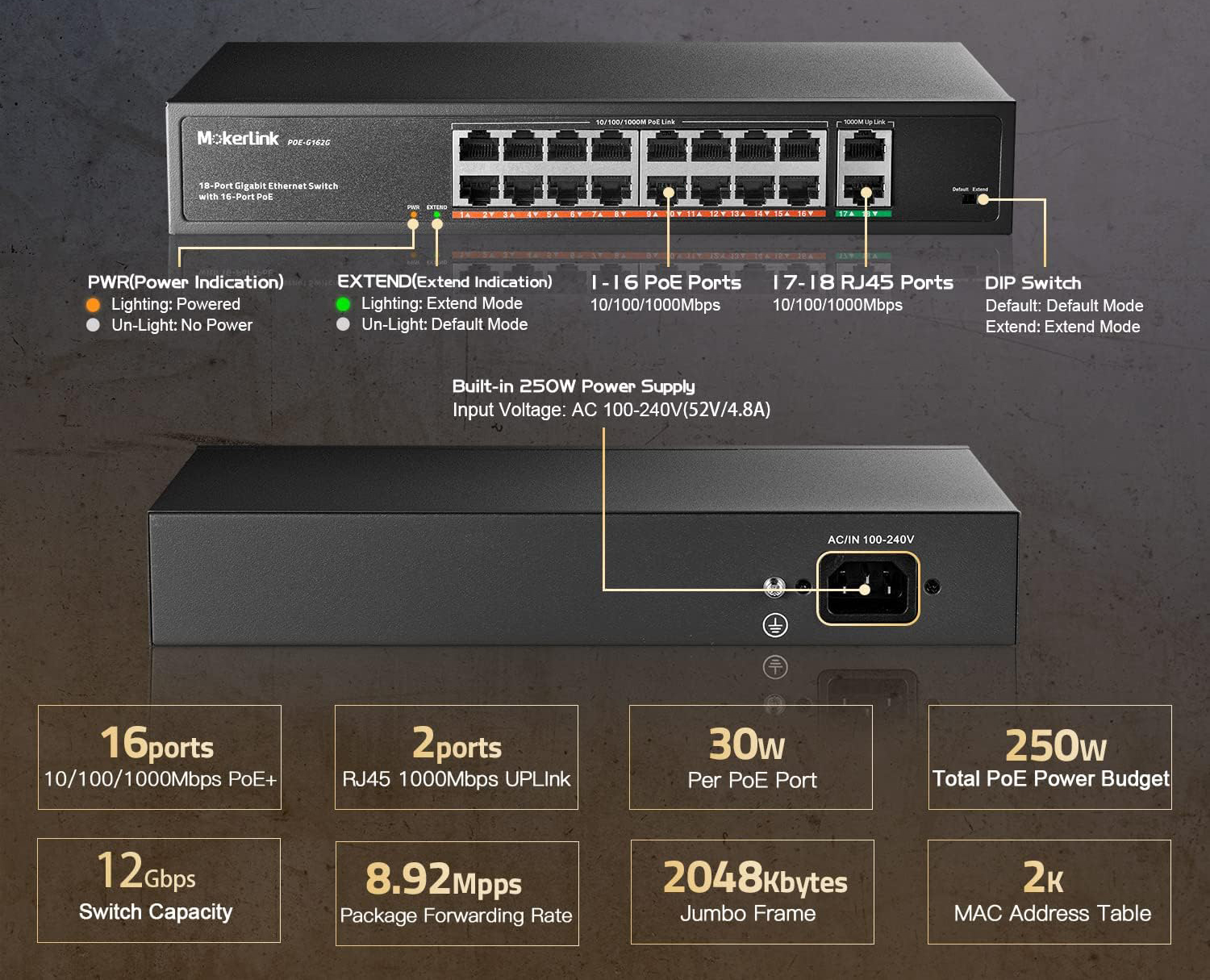

Technical details:

• Model: PoE-G162G
• Interface: 16x 100 / 1000MBPS PoE + ports + 2x 100 / 1000Mbps RJ45 ports Uplink
• PoE protocol: IEEE802.3AF, IEEE802.3AT
• PoE power: Total power is 250W, power of a single port max. 30W
• Power PIN: 1/2 +, 3/6--, END-Span
• Indicator: Power (Power Status), 1-16 Port (PoE Link & Data), Extend (Extension Status)
• Switch options: 12GBPS, Store and Forward, Mac 2K address table
• Transmission speed: 100Base-T: 148800pps / port, 1000Base-T: 1488000pps / port
• Work environment: working temperature -10 ℃ -55 ℃
• Power type: power supply (built-in), 220V, 50Hz, ≤250W
• Weight: 2.1 kg
