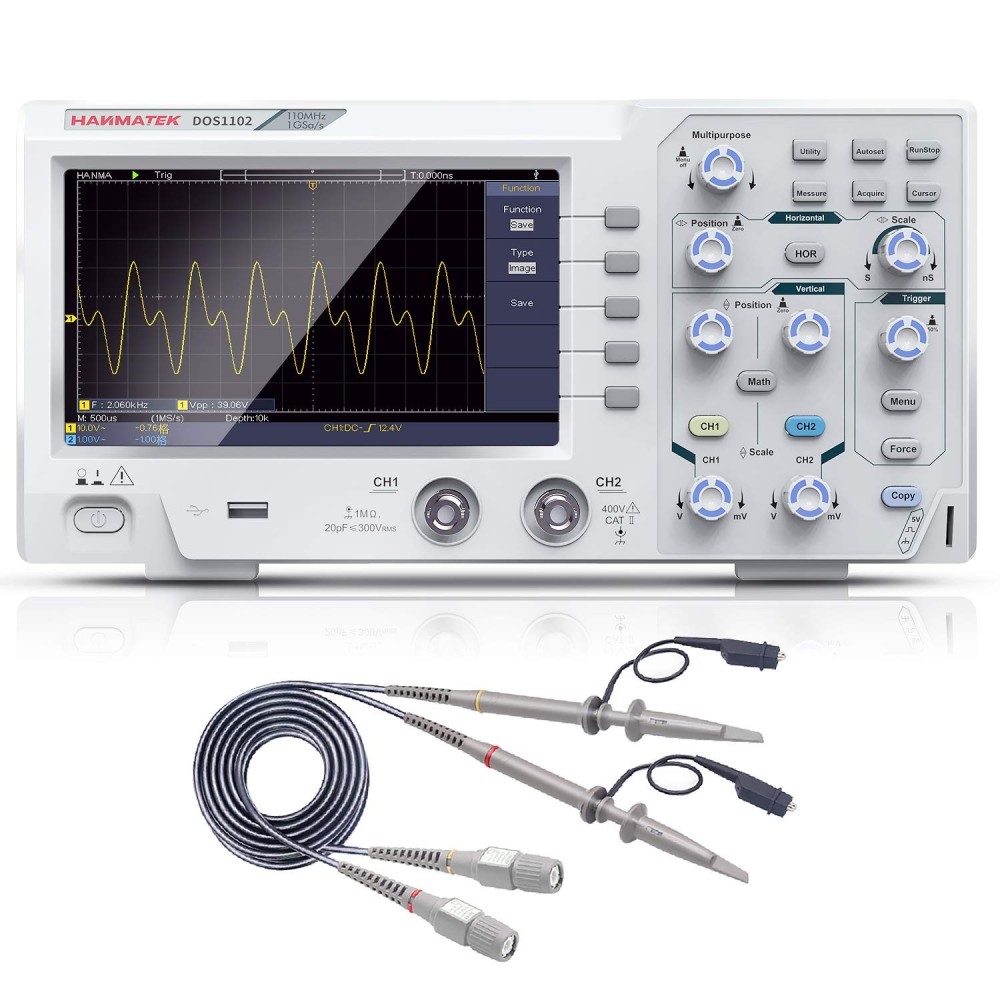

Oscilloscope HANMATEK DOS1102, 2 channels, screen 7 inches / 18 cm

HANMATEK DOS1102 oscilloscope:

Range of carrying: 110 MHz, with a real sampling frequency of 500 MS / S per channel, two channels.

Time base range: from 2 NS / DIV to 1000 S / DIV.

Vertical scale: from 20 mv / div to 5 V / div; The depth of memory is not less than 10,000 sampling points.

Possibility of storing no less than 16 waves groups, USB storage function, USB interface for the device and host.

The 7-inch TFT LCD screen (real colors) with a resolution of 800 × 480 pixels, supporting measurement with cursors (four modes: voltage difference, time difference, time and voltage difference).

Function of the automatic range and chart tracking (one or more waves).

Four multiples of probe damping: 1x, 10x, 100x and 1000x.

Built-in frequency meter (6-digit) with a measurement range of 2 Hz ~ 20 MHz; Current measurement function: range 100.0 MA / V ~ 1 KA / V.

Supports 30 automatic measuring functions and allows you to adjust the measurement menu.

Wave capture function, support for LabView communication, compliance with SCPIs; DC powered.
