Elevator Bulking boiler with remote control 10 m to 300 kg 1500 W

Manufacturer's code: 10062740
Roofing elevator with 1500 engine engine in brand MSW Raise up to 300 kg at a speed of 12 m / min. Thanks to a large lifting capacity, the device will carry out materials, tools or solar panels on the roof and various floors. The lift with a 150x70 cm platform will provide a maximum lifting height of 10 m. Thanks to the vertical construction, the construction elevator is suitable for various projects, including works on flat roofs and other construction tasks. The ladder elevator is characterized by a low weight and a well-thought-out construction that will facilitate transport and will provide rapid disassembly and assembly. Special construction will increase convenience on the construction site and at the same time improve transport and storage. The elevator will also delight advanced protective systems. Using a remote control with a cable (5 m), you can conveniently handle a lifter from a safe distance. The stop, an emergency switch and overload protection will also provide optimal user protection and lifted load.
Product features:

• - the 1500 roofing elevator will increase up to 300 kg at a speed of 12 m / min,
• - roofing hoist with a 150 x 70 cm platform and a lifting height up to 10 m,

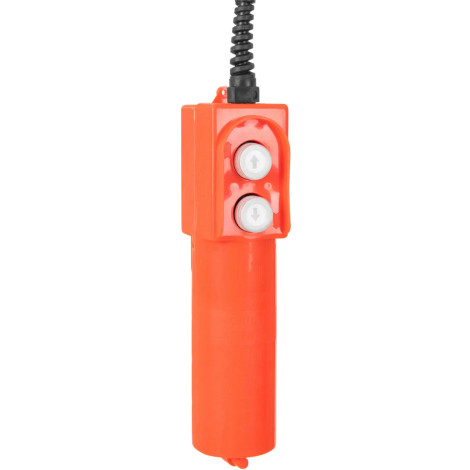

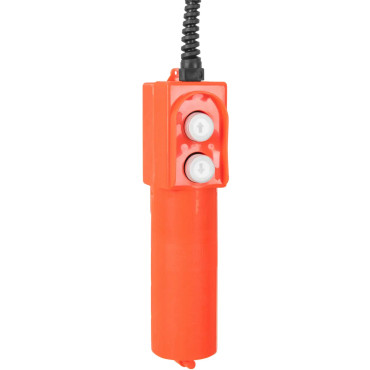

• - the construction elevator has a wired remote control, a stop, emergency switch and overload protection,
• - the vertical design of the ladder elevator is suitable for different buildings, eg with flat roofs,
• - Low weight deck elevator and thoughtful construction for quick disassembly and assembly.

Technical parameters:

• - catalog number - 10062739
• - article - New
• - Model - MSW-Rf10s
• - frequency [Hz] - 50
• - Material - Steel, galvanized steel
• - Color - Silver metallic
• - IP protection degree - Ip40
• - platform size [cm] - 150 x 70 x 30
• - engine wire - Copper
• - Input voltage [V] - 230
• - Insulation class - Breakfast
• - Maximum lifting speed - 12 m / min
• - IEC protective class - And
• - Device work cycle - S2 (short-term work, constant load)
• - Power cord - 1 m
• - Rope length - 20 m
• - Cable from the remote control - 5 m
• - Maximum load - 300 kg

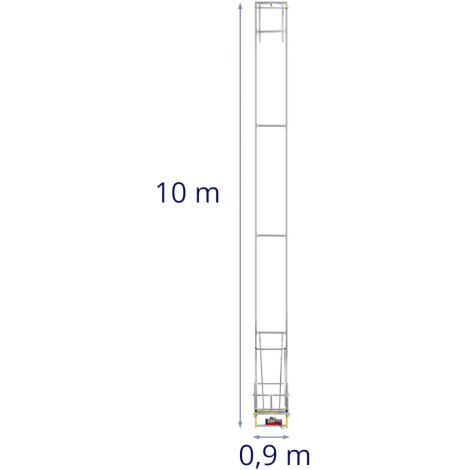

• - Maximum lifting height - 10 m
• - Rope diameter - 5 mm
• - Engine - Power - 1.5 kW
• - Wired remote control - So
• - overload protection - So
• - Dimensions (DXSXW) - 57 x 90.5 x 1000 cm
• - weight - 107.5 kg
• - Dimensions of shipment (DXSXW) - 258 x 96 x 37 cm
• - shipping weight - 152 kg

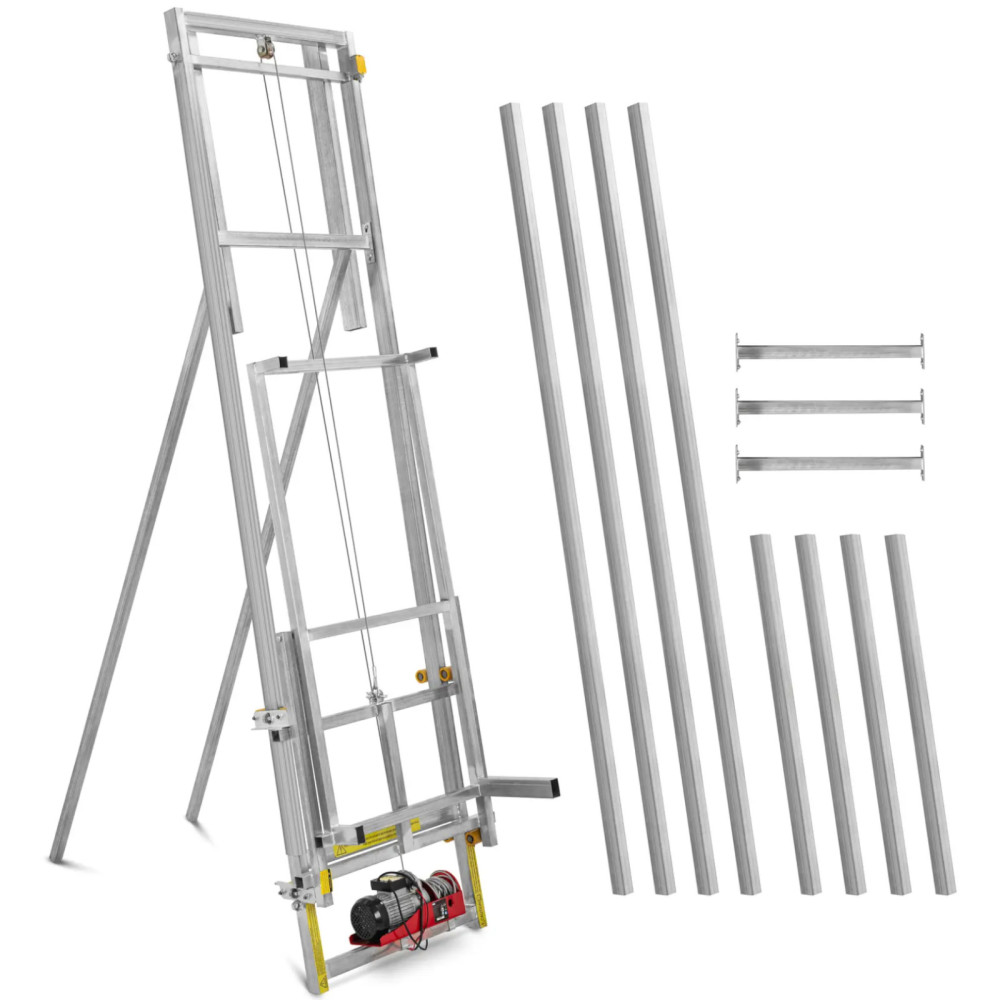

Included:

• - Dekarska elevator
• - 6 tubes (40 x 60 mm / 3 m)
• - 2 tubes (35 x 55 mm / 2.5 m)
• - 6 tubes (1 m)
• - 2 tubes (40 x 10 mm / 3 m)
• - 4 horizontal load-bearing tubes
• - 2 short tubes
• - Upper and lower tubular frame
• - winch
• - Trolley
• - Switch
• - connecting screws
