Timing lock for BMW Mini N47 N57 1.6 2.0 3.0D - set

Manufacturer's code: 10061751
Camshaft lock MSW Let it repair the car engine Diesel BMW and Mini with codes N47 and N57. Thanks to it, you can quickly replace and lock the camshaft or timing chain, replace the cylinder head gasket or perform other repairs. Tools are optimally matched to the appropriate engine components and are therefore easy to use. Timing lock guarantees the most effective method of fixing and adjusting the engine. Set of MSW It consumes a very small extent. The set includes tools for adjusting timing rollers, crankshaft, timing chain voltage lock and others. They were made of durable carbon steel. So they will ensure many years of use. When the device is not used, you can hide all utensils in a durable plastic transport suitcase.
Fits the following BMW models:

• - 114D F20 / 21 1,6D (12-14)
• - 116D E81 / 82/87/88 (08-12) / F20 / 21 2.0D (11-13)
• - 118D E81 / 82/87/88 2.0D (07-14) / 118D F20 / 21 2.0D (11-13)
• - 120D 2.0D E81 / 82/87/88 (07-14) / 120D / XDRIVE F20 / 21 2.0D (11-13)
• - 123D E81 / 82/87/88 2.0D (07-14)
• - 125D F20 / 21 2.0D (12-13)
• - 316D E90 / 91/92/93 2,0D (09-12) / 316D F30 / 31 2,0D (12-13)
• - 318D E90 / 91/92/93 2,0D (07-12) / 318D F30 / 31 2,0D (12-13) / 318D F30 / 31 2,0D (12-13)
• - 320D E90 / 91/92/93 2.0D (07-12) / 320D / xDrive F30 / 31 2.0D (12-13) / 320d / Efficient Dynamics E90 / 91/92/93 2.0d (10-12)
• - 325D E90 / 91/92/93 3.0D (10-14)
• - 330D E90 / 91/92/93 3.0D (08-13) / 330D / xD E90 / 91/92/93 (08-14)
• - 520D E60 / 61 2.0D (07-10) / 520D F10 / 11 2.0D (10-13) / 520D / Efficient Dynamics F10 / 11 2.0D (11-13) / 520d / xDrive F10 / 11 2.0d (11- 13)
• - 525D F10 / 11 3.0D (10-12)
• - 530D F10 / 11 3.0D (10-13) / 530D / XDRIVE F10 / 11 3.0D (11-13) / 530DGT F07 (09-12), 530D / XDrive GT F07 3.0D (09-12)
• - 535D F10 / 11 3.0D (10-12) / 535D / XDrive GT F07 3.0D (10-12) / 535D / xDrive F10 / 11 3.0d (11-13) / 535dgt F07 (10-12)
• - 640D / xDrive F12 / 13 3.0D (11-13)
• - 730D F01 / 02/04 3.0D (08-12), 730D / LD F01 / 02/04 (08-12), 730D / xDrive F01 / 02/04 3.0D (09-12)
• - 740D F01 / 02/04 (09-12), 740D XDrive F01 / 02/04 (09-12)
• - M550D / XDRIVE F10 / 11 3.0D (12-13)
• - X1 E84 2.0D (09-13), X1 F84 2.0D (09-13), X1 SDRIVE 18D E84 (09-12), X1 SDRIVE 20D E84 (09-12), X1 XDrive 18D E84 (09-14), X1 XDrive 20D E84 (09-12), X1 XDrive 23D E84 (09-12)
• - X3 E83 2.0D (07-10), X3 F25 2.0D (11-13), X3 F25 3.0D (11-13), X3 XDRIVE 18D E83 (08-10), X3 XDRIVE 30D E83 (11-12)
• - X5 E70 3.0D (10-12), X5 XDRIVE 40D E70 (10-13)
• - X6 E71 / 72 3.0D (10-13), X6 XDRIVE 30D E71 / 72 (10-14), X6 XDRIVE 40D E71 / 72 (10-14)

As well as mini models:

• - Clubman (10-14)
• - Clubvan (12-14)
• - Countryman (10-14)
• - Mini (10-14)
• - Paceman (13-14)
• - Roadster (12-14)

and the following engines:

• - N47 / N47S: C16K1, C16U1, C20K1, C20U1, D16, D20A, D20A / O0, D20A / 0U0, D20B, D20C, D20C / K1, D20C / O1, D20C / U1, D20D / T0, D20D / T1, D20O0, D20O1, D20C / O1, D20T0, D20U0, SD20B / D / T0, TD20K1, TD20U1.
• - N57: D30A, D30A / O0, D30B / TO, D30C / S1, D30B / T0, D30O0, D30O1, D30TO, D30T0, D30UO, D30U0.

Product features:

• - fits many BMW and MINI cars,
• - tools are optimally matched to the elements of the BMW N47 / N57 engines,
• - Durable carbon steel has a long service life,
• - Little consuming and secure tool
• - Practical transport case for clean and safe storage.

Technical parameters:

• - catalog number - 10061751
• - article - New
• - Model - MSW-Ett-BMW-105
• - Case included - So
• - Dimensions (DXSXW) - 40 x 33 x 10 cm
• - weight - 3.58 kg
• - Dimensions of shipment (DXSXW) - 41.5 x 34 x 11.5 cm
• - shipping weight - 5.01 kg

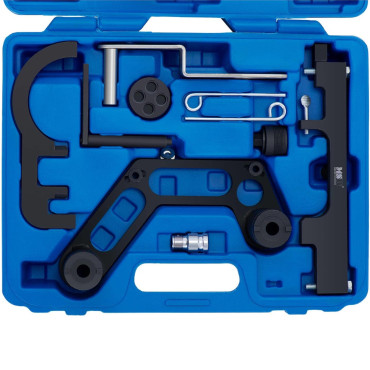

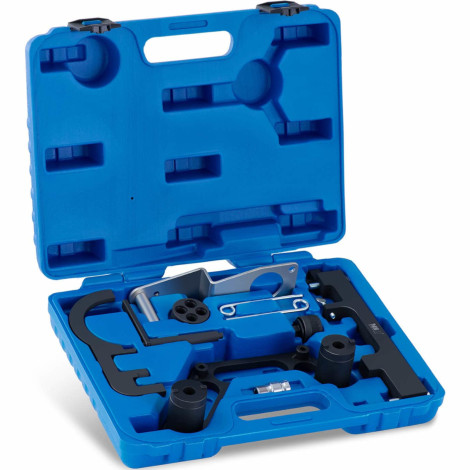

Included:

• - Timing Lock MSW-Ett-BMW-105
• - a tool for rolling the crankshaft, used as OEM 11.6.480

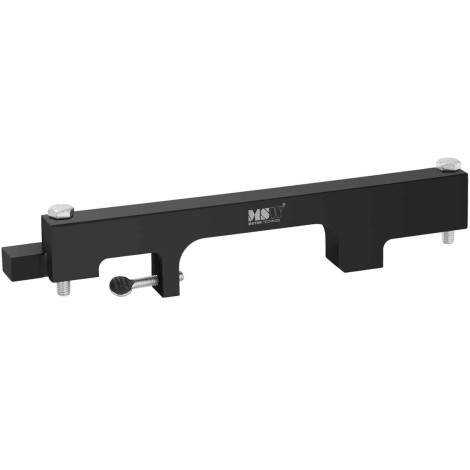

• - Camshaft lock, for use as OEM 11.8.750
• - a drawcard for gears, used as OEM 11.8.740
• - Crankshaft gear locking pin used as OEM 11.5.320
• - a tool for fixing the crankshaft, used as OEM 11.4.320
• - Balance shaft lock for use as OEM 11.8.790
• - 2 pins for blocking the OEM stringer 11.3.340
• - Transport suitcase
• - User manual
