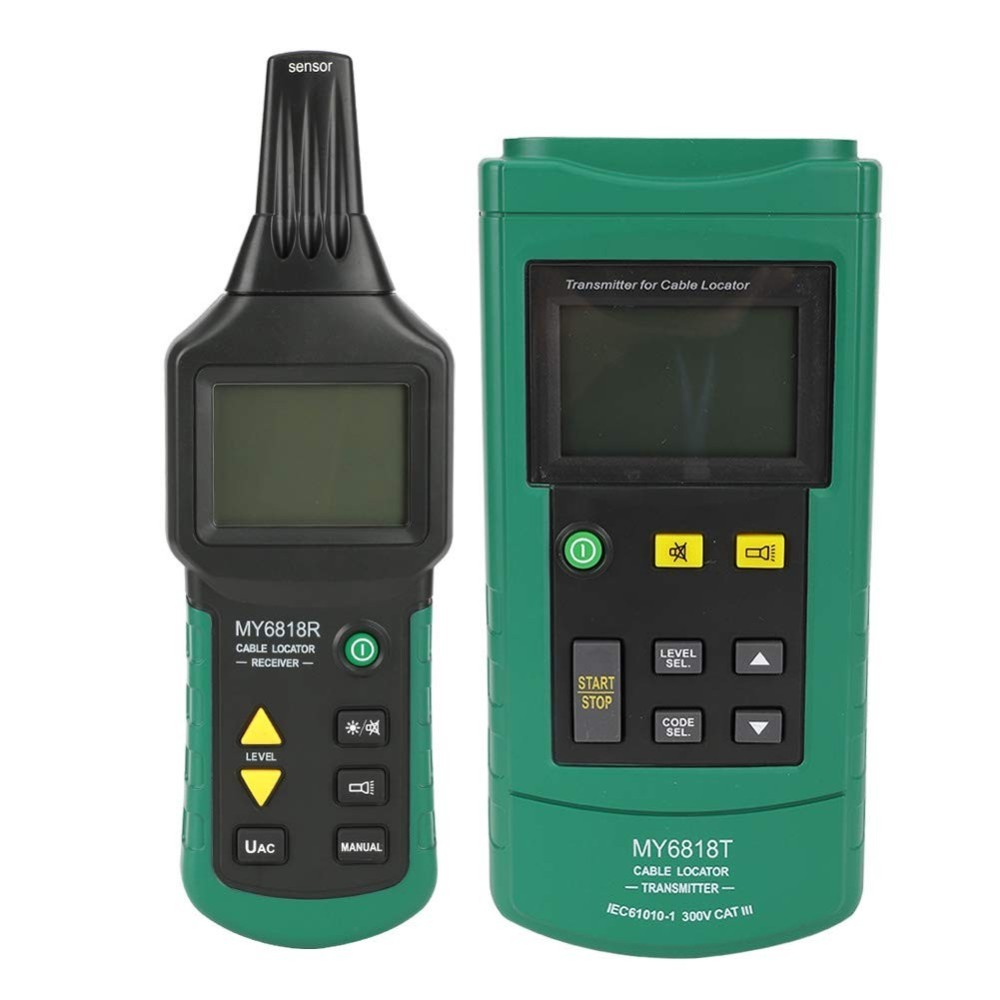

Seafront my6818T 12V-400V AC / DC electric cable detector, Exhibition

Properties:

The receiver's sensitivity can be set manually or automatically. The transmitter has a self-control function, transmitter and receiver have a mute function. Compact structure, durable and durable, easy to carry. The embedded DC / AC voltmeter of the transmitter is used for a linear measurement of 12 - 400 V DC / AC. The transmitter and receiver show power levels, codes, batteries. Unfolding type of voltage of recognition and values and high voltage alarms.

Application:

The device is widely used in the construction of communication cables, construction of cables, pipeline construction, communication cable installations, power cords and maintenance maintenance and is an indispensable tool for maintenance personnel. Recognize cables arranged in walls or floors, electric wires, water / gas wires. Recognize interruptions and short circuits in cables and cables in the walls. Or root the soil to recognize fuses and distribute electrical circuits. Recognition of breaks and short circuits in floor heating; Sensor plug and separating plugins are accidentally covered.

Specifications:

• Voltage measurement range: transmission: AC / DC 12 V-400 V
• Output plate: Sending: 125 kHz
• Load: max. Data transmission: AC / DC 400 V
• Depth Measurement: Receiver 0-2.5 m (wall / earth cable)
• Measurement of main voltage: Receiver 0-0.4 m
• Work environment: Broadcast receptor: 0 ~ 40 ℃
• RH: Sending and receiving: max. 80%
• Height measurement: Sending and receiving: max. 2000 m
• Transmitter battery: 1 x Battery GL6F22A 1604A (does not fall within the scope of delivery)
• Receiver battery: 6 pieces of AAA 1.5 V AAA LR03 battery (not fall within the scope of delivery)
• Length of the test cable: approx. 1.2 m
• Testing the length of the boom: approx. 12,3 cm
• Size flooring: approx. 22.7 x 11 cm
• Transfer size: approx. 19 x 8.9 x 4 cm
• Receiver size: approx. 24 x 7.8 x 3.5 cm
• Weight: approx. 1373 g
