Flipper Zero FLP-Z-W-R04 - Multifunctional tool for geek, pentesteres, RFID, NFC, Bluetooth, RF, GPIO, IR

Product show

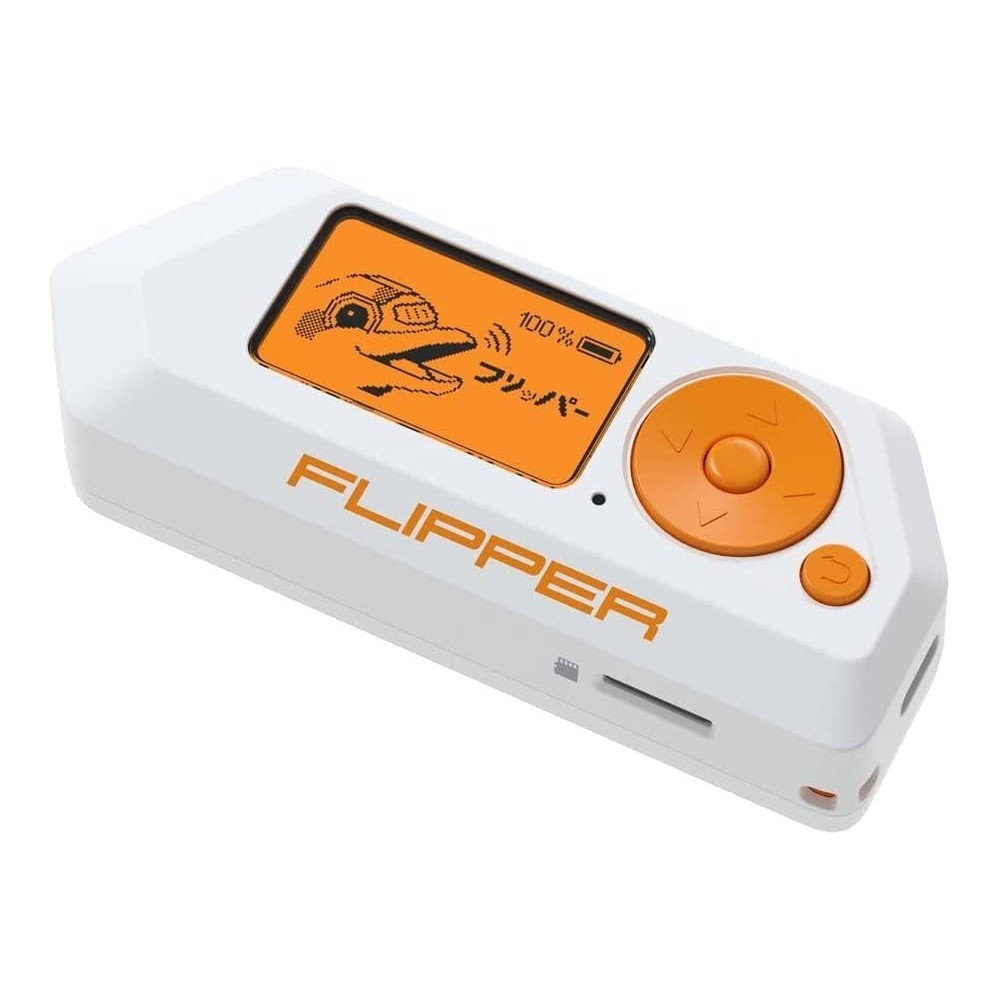

Flipper Zero FLP-Z-W-R04 This is a portable multifunctional tool for pentesteres, ethical hackers and geek.

You will support protocols RF, RFID, NFC, GPIO, IR, Bluetooth and Ibutton.

It will autonomously without the need for additional devices.

Information displays on a monochrome LCD display and the control takes place using 5-directional rain and one button.

✅możliwości the device

Allows access to access control systems, garage gates, barriers, IOT sensors, weather stations and remote unklifting systems.

Effective range of action is up to 50 meters.

✨sterowanie AND INTERFACE

▶ ️wyposażony Equipped with a display 1.4 "LCD with a resolution of 128x64 with backlight.

▶ Division takes place with 5-directional rain and one button.

▶ If you can modify by connecting to a computer or mobile application to Android / iOS.

▶ Technical ️specyfikacja

✅procesor: STM32WB55RG, Arm Cortex-M4 64 MHz and Cortex-M0 + 32 MHz.

✅akumulator: Lipo 2000mAh, up to about 7 days of work without loading.

✅pamięć: 1024kB Flash, 256KB SRAM and MicroSD support for 64GB.

✅złącza: USB 2.0 Type-C.

✅wymiary: 100 x 40 x 25 mm, weight: 102 g.

▶ ️specyfikacja modules

✅rf: Chipset Ti CC1101, band 315, 433, 868, 915 MHz, transmitter power 0 dBm (~ 100 m range).

✅rfid: 13.56 MHz (ISO-14443A / B, Mifare, Felica, NFC) and 125 KHz (AM, PSK, FSK, EM400X, HIDPROX, T5577).

✅gpio: Level 3.3 V CMOS, 5 V tolerance, up to 20 mA on a pin.

✅podczerwień (IR): Range 800-950 Nm, 300 MW power.

✅bluetooth: LE 5.0, Power 0 DBM, sensitivity -96 DBM, speed to 2 Mbps.

✅ibutton: Dallas DS1990A, digital.

⚙️dodatkowe

✨obudowa and buttons are designed ergonomically and carefully.

The project was created after two years of work of the team of designers and testers.

The device is openSource and Open Hardware.

✨w for iOS application is available remote control, Which allows to hide a flipper in a pocket or backpack.
