Crane forks for pallets HDS Suspension Self-leveling adjustable up to 1500 kg 1.5 t

€975.33
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10030730

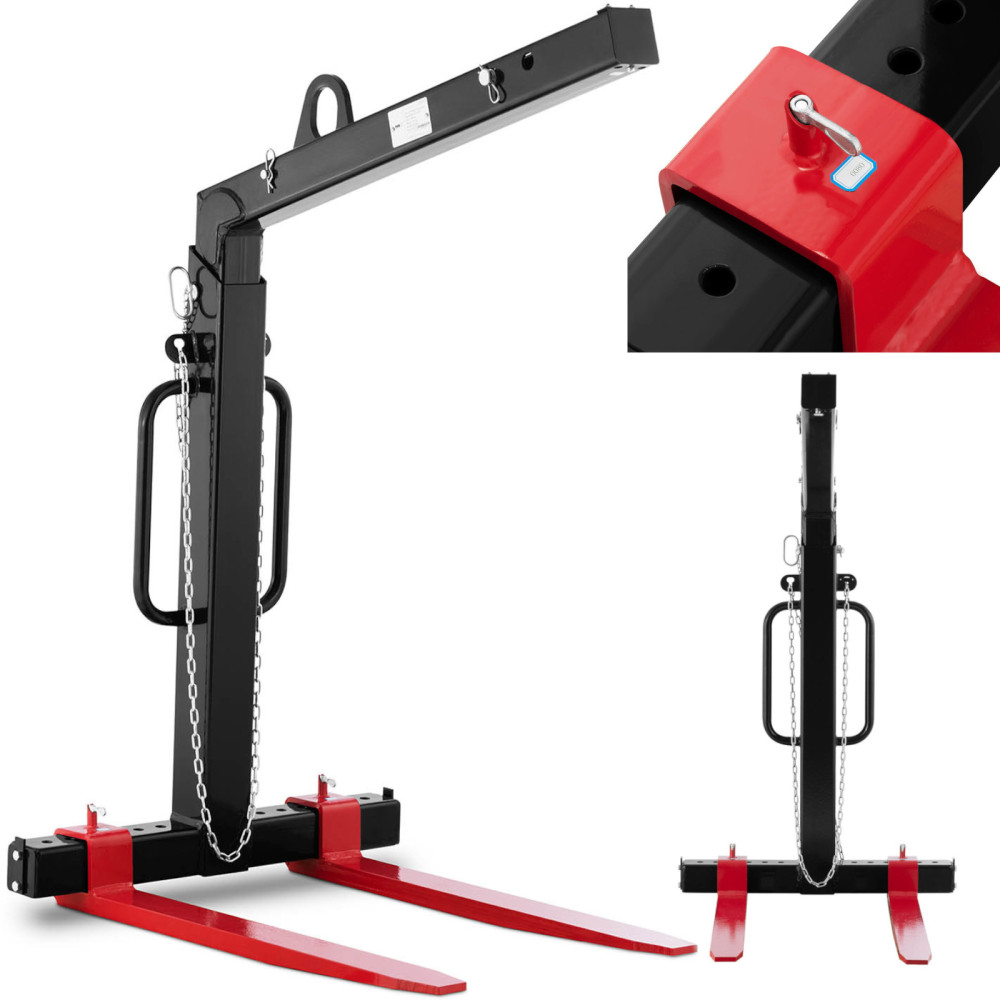

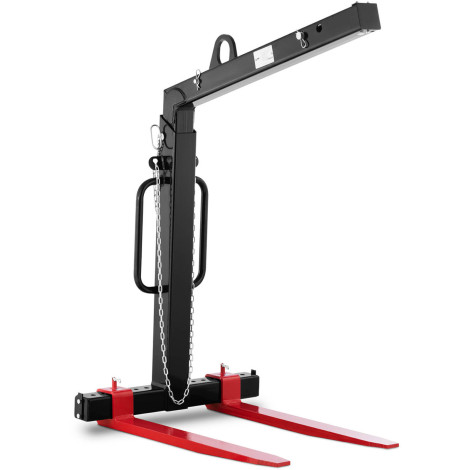

Forks for brand palette Steinberg Systems
They will work perfectly as fittings for hoists, to work with the movement of loads on Europaletten, construction as well as to industrial and agricultural goods.
Loading forks in an easy and quick way can be connected to the lift. Suit For mounting on cranes with a swivel arm and without it and cranes with HDS grabs. Equipment automatically adapts to the load weight, so that the palette is arranged exactly parallel to the floor. Automatic weight compensation 300 kg makes it always remain in balance, and thus enables stable transport. The height of the fork can adjust in terms of 1300-2000 mm. Europallets can be arranged along and across. Using an ambulance for forks and springs, the HDS forks adapt to the center of gravity, thus providing evenly distributing weight on both arms. You can also match them. Forks were made of durable steel. The durability of the material can be further reinforced by storing them in a place that will protect against weather conditions. The equipment should be regularly cleaned with appropriate cleaning agents.
Product features:
  • - Easy service - Pallet forks are quickly mounted on the crane,
  • - Flexibility - load up to 1500 kg suitable for large loads,
  • - Safety - automatic weight compensation ensures safe handling of transported goods,
  • - Conversion of settings - height adjustment adapted to the cargo transported,
  • - Durability - Made of durable steel.

Technical parameters:
  • - Model - SBS-Cf-1500
  • - Producer code - 10030730
  • - Product condition - New
  • - height [mm] - 1650-2350
  • - fork length [mm] - 1000
  • - lifting height [mm] - 1300-2000
  • - Material - Steel Q345, steel 45 #
  • - fork section [mm] - 100 x 40
  • - Teeth range [mm] - 350-900
  • - automatic weight compensation [kg] - 300
  • - load capacity [kg] - 1500
  • - Dimensions (DXSXW) [cm] - 110 x 93 x 244.5
  • - weight [kg] - 156
  • - Dimensions of shipment (DXSXW) [cm] - 172 x 126 x 40
  • - shipping weight [kg] - 170

Included:
  • - Pallet forks
  • - User manual
1013935

Data sheet

Kod producenta
1013935
