Manufacturer's code:

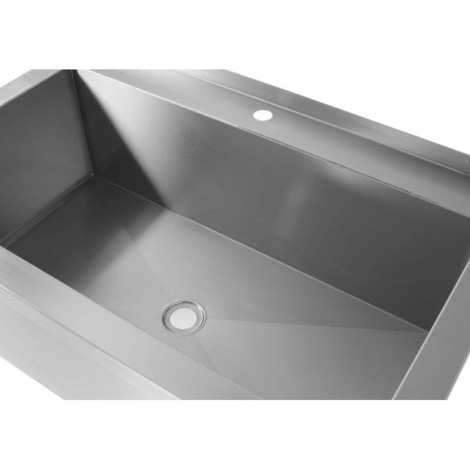

813430A table with a one-chamber pool brand Hendi It has a welded pool chamber made of stainless steel providing
high resistance for food acids and chemical agents.
PrzetłoczeniE in the pool on the so-called Envelope for complete water drain. In addition, standard ribbon in the shape of a siphon and a battery hole. Orientation,
permissible load It is 70 kg / m2. Wound
prevents dirt the Wall. Table body removed from the wall, for facilitating the wall-mounted installation. The pool has adjustable footers and
mask Covering a swimming pool made of steel.
Product features: - - 1-chamber pool,
- - stainless steel,
- - finish-resistant to food acids and chemicals,
- - welded construction,
- - moving the body from the wall per 100 mm,
- - 40 x 40 mm profile skeleton,
- - adjustable feet,
- - High strength and stability.
Technical data: - - catalog number - 813430
- - article - New
- - producer - Hendi
- - Type - Welded
- - Basic chamber material - AISI 304 stainless steel
- - Material Masks - AISI 430 stainless steel
- - Battery hole - AVG. 30 mm
- - Preparation to the siphon - AVG. 50 mm
- - Ring height - 40 mm
- - load - up to 70 kg / m2
- - Adjusting footers - 25 mm up or 5 mm down
- - Height of the feet - 160 mm
- - Chamber dimensions - 886 x 443 x 400 mm
- - dimensions - 1200 x 600 x 850 mm
Included: - - a table with one-chamber pool welded - Hendi 813430.
