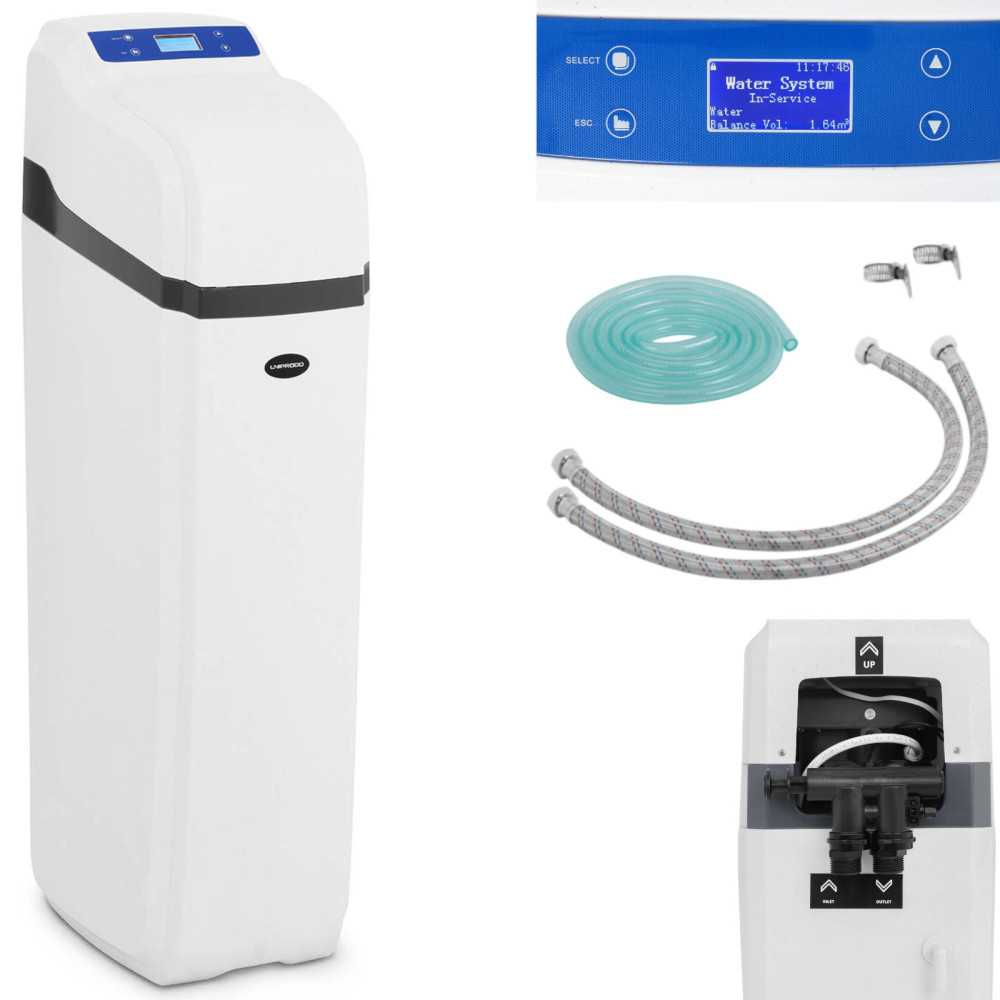

Summable Descaler for water ASD2 valve 25 L 3.3 in LCD

Manufacturer's code: 10250397
Water softener The UniProdo brand is equipped with high class Automatic ASD2 valve with a built-in processor and an electronic water meter that monitors water flow, adjusting accordingly Regeneration process. Water flow in the range 1.4 - 2.7 m3 / h, Working pressure 0.15 - 0.5 MPa 1.5 - 5.0 bar, ion exchange resin tank Capacity 25 L. You will connect the product both with the main valve or water tightening and a specific device. The device has a panel with a display LCD. The lock function protects against accidental switching of parameters. It is used for regeneration of ion exchange bed Saltwhich you need to spill regularly. Hardness 50 ppm It should be completed after each passing 4000 l water. Renovating the ion exchange deposit is carried out on one of two ways: volume mode it starts when a specific amount of water flows, in turn Time mode It starts regeneration after a specified number of days. Power consumption when resin regeneration is 3.3 in. In the remaining time, the power is only downloaded for the display and its value It's 1 W.
Product features:

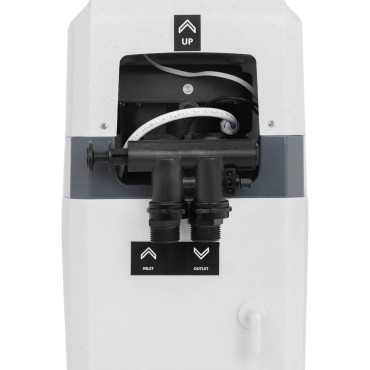

• - automatic ASD2 softening valve,
• - two regeneration modes - volume or time,
• - Resin tank 25 l,
• - water flow 1.4-2.7 m3 / h,

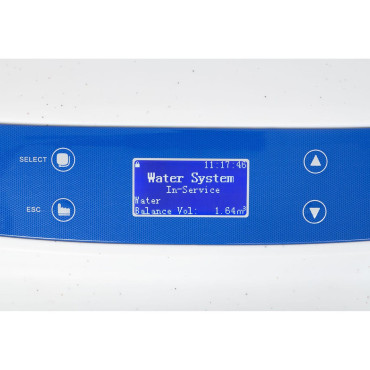

• - panel LCD.

Technical parameters:

• - Model - Uni_watersoftener_2500a
• - catalog number - 10250397
• - article - New
• - power supply - Switching adapter 12 V 1500 mA
• - tension - 100-240V ~ 50/60 Hz
• - power - During regeneration: 3.3 W
• - Valve type - Asd2
• - housing material - Plastic
• - adapted for - 4 - 12 people
• - resin volume - 25 l
• - Display - LCD
• - Inlet size - 3/4 # 8221
• - Departure size - 3/4 # 8221
• - Size of the outflow - Ø12 mm
• - Drain connection (sewage) - So
• - central pipe size - 35
• - water flow - 1.4 - 2.7 m³ / h
• - Working pressure - 0.15 - 0.5 MPa
• - Resin regeneration - Automatic, using a special salt
• - Regeneration time - 92 min
• - salt consumption during regeneration - 3.3 kg
• - Recommended maximum flow - 2.5 m³ / h
• - Performance at 10Deg DH - 9000 l
• - Performance at 20Deg DH - 4600 l
• - Max Salt stock - 30 kg
• - pressure drop - 5%
• - operating temperature range - 5 - 48DEG C
• - Power cord - 1.5 m
• - User manual - So
• - Dimensions (DXSXW) - 30.5 x 50 x 111 cm
• - weight - 35 kg
• - Dimensions of shipment (DXSXW) - 52 x 36 x 120 cm
• - shipping weight - 42.85 kg

Included:

• - water softener,

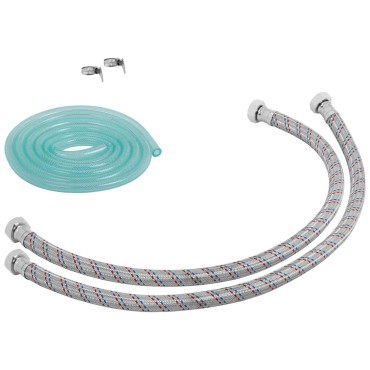

• - Accessories,
• - Operating instructions.
