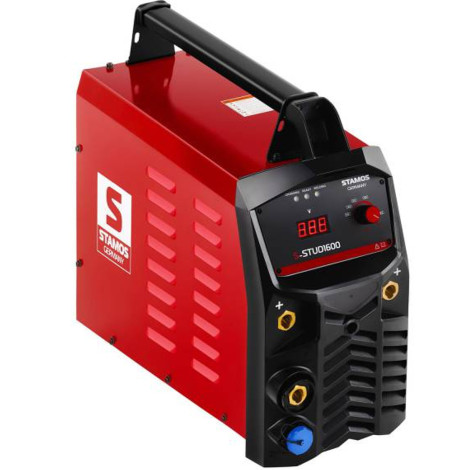

Capacitor welding machine for bolts Nail metal pins M3 - M8 S-Stud1600 Juli Stamos Germany

Manufacturer name: SEC-stud1600
Capacitor welding machine Stamos Germany It enables efficient and quick burning of screws, spins, nails and pins for a metal surface. The S-STUD1600 device is suitable for work related to metalwork and assembly, eg sheets, insulation and fences. The model leaves high quality welds.
Capacieters of 72000 UF and energy 1600 J provide high efficiency. The machine will handle such materials such as copper, aluminum, titanium, steel (also stainless) and brass. Preliminary and finishing is not necessary.
For welders Stamos Germany They fit M3, M4, M5, M6 and M8 (max length 40 mm). They are a gun with three pins. The set includes handles to hold pegs.
Features:
- Fast burning
- Durable welds
- adjustment of pressure
- Infinuous voltage setting
- steel and plastic housing

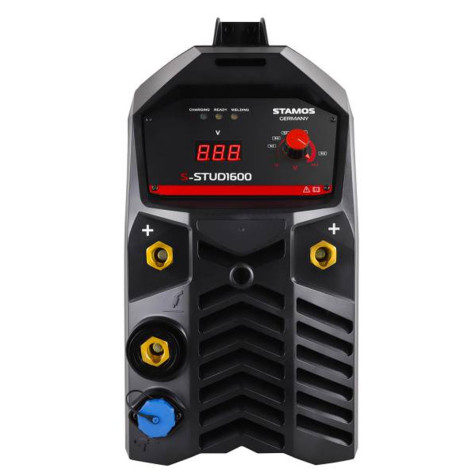

- Ready control panel
Technical parameters:

• - Model - SEC-stud1600
• - catalog number - 2158
• - article - New
• - housing material - Steel, plastic
• - tension - 230 V / 50 Hz
• - welding tension - 20 - 195 V
• - Rated power - 500 kVA
• - capacitors of capacitors - 72000 UF
• - Stored energy - 1600 J
• - Scope of welding - Ø 3 - 8 mm / m3 - M8
• - Max. Length of pegs - 40 mm
• - welding efficiency - 10 - 20 Weld / min.
• - Welding gun length - 4 m
• - Length of the mass cable - 2 x 4 m
• - power cord length - 2.2 m
• - Dimensions (DXSXW) - 56 x 21 x 38 cm
• - weight - 19 kg
• - Dimensions of shipment (DXSXW) - 65 x 32 x 43 cm
• - shipping weight - 26 kg

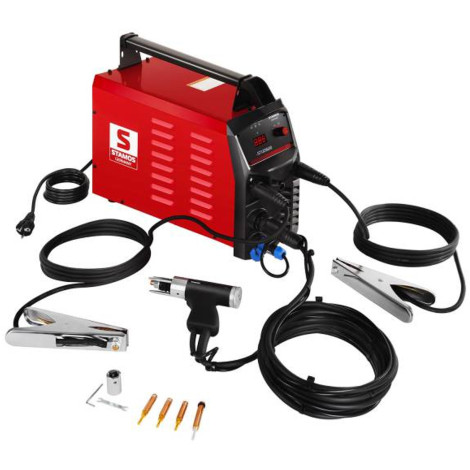

Included:
- capacitor welding machine

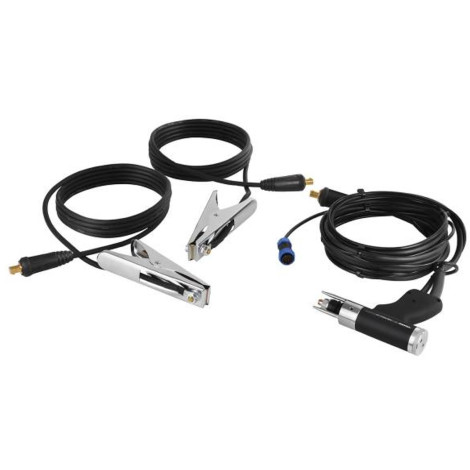

- Welding gun with a wire - 4 m

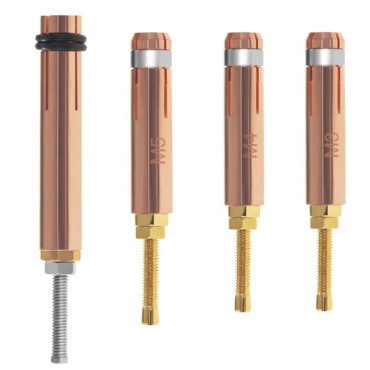

- M3, M4, M5, M6, M8 handles
- mass cable with terminal - 2 pcs. After 4 m
- Mounting wrench
- EN statement
