Manufacturer's code:

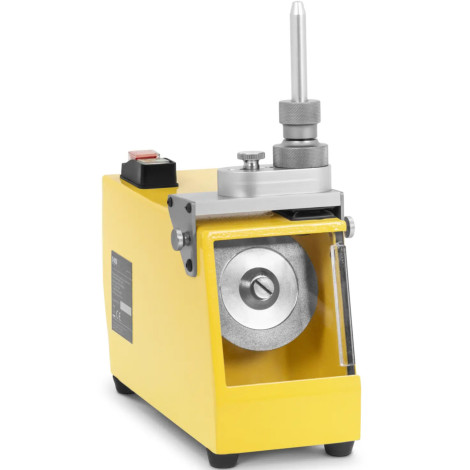

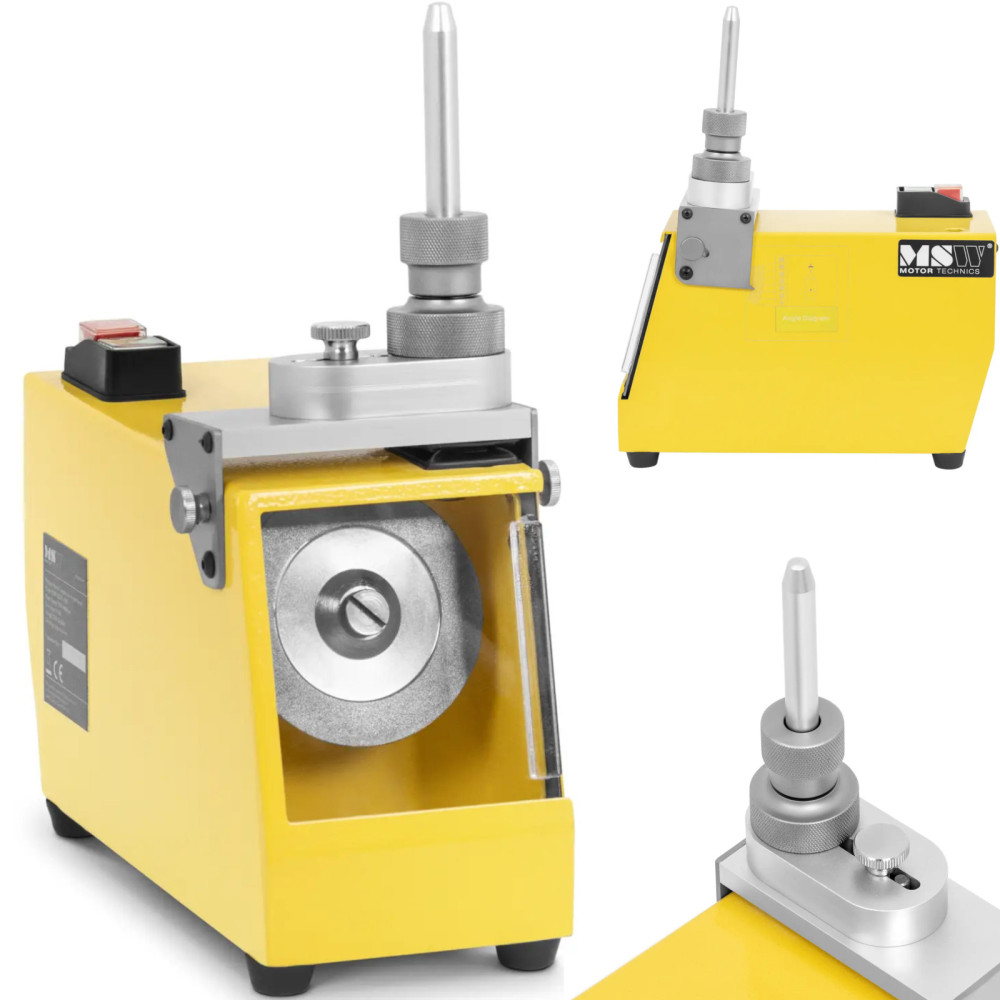

10062713Shield for tungsten electrodes Brand MSW It grinds very accurately, providing a more stable arc, higher performance and better ignition properties. In addition, the life of the tungsten electrode is prolonged with each sharpening. A compact device can easily be moved to the place of use and use them even in small workshops. The durable grinder is intended for everyday use and helps to reduce the purchase of new electrodes.
The unique handle maintains the TIG rod safely on the spot during grinding at a speed of up to 5000 rpm. With the scale on a sharpener to the TIG electrode, you can set an angle in the range from 0 to 60deg to always get excellent results. In addition, the electrode grinder has a length adjustment, thanks to which it will avoid excessive shortening of the electrode.
Energy-saving engine 100 in delights with a strong, quiet drive that almost does not interfere. Durable diamond grinding wheel with a diameter of 90 mm is integrated with the device. The grinding process can be checked by a transparent protective cover that stops sparks and chips. The residues after grinding are accumulated on the bottom of the sharpener, you can spill them by a closed hole in the bottom if necessary.
Product features: - - Wolfram electrodes with the possibility of setting the grinding angle in the range from 0 to 60deg with a scale,
- - the unique grinder holder securely holds rods with diameters from 1.6 to 5 mm and allows for precise length control,
- - engine 100 in drives the grinding wheel of the TIG electrode sharpener to a speed of 5000 rpm,
- - transparent cover for freely observing the sharpening process and a closed opening to remove chips at the bottom of the grinder,
- - The compact sharpener is easy to transport and you can use it wherever you need.
Technical parameters: - - catalog number - 10062713
- - article - New
- - Model - MSW-Ggts-100r
- - frequency [Hz] - 50/60
- - Material - Cast iron, galvanized steel
- - Color - Black, yellow
- - Tension [V] - 220
- - IP protection degree - Ip2x
- - Nominal speed [obr./min] - 5000
- - power [W] - 100
- - Angle of sharpening the drill [deg ] - 0 - 60
- - destiny - Ø1,6 - 5 mm
- - Diameter of the shield hole (in the middle) [mm] - 8
- - Power cord - 150 m
- - Thickness of the grinding wheel - 8 mm
- - grinding diameter [mm] - 90
- - number of elements (drills, heads, shields, etc.) - 1
- - Dimensions (DXSXW) - 30.5 x 13.5 x 32 cm
- - weight - 5.4 kg
- - Dimensions of shipment (DXSXW) - 31 x 18 x 28 cm
- - shipping weight - 6.1 kg
Included: - - sharpener for tungsten electrodes
- - SDC grinding wheel
- - 2 mm clamp holder
- - clamping handle
- - Protective shield
- - Power cord
