Manufacturer's code:

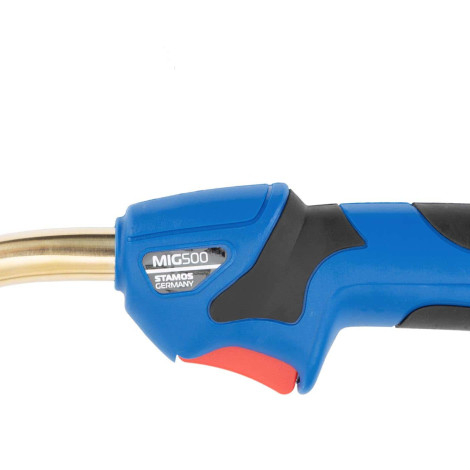

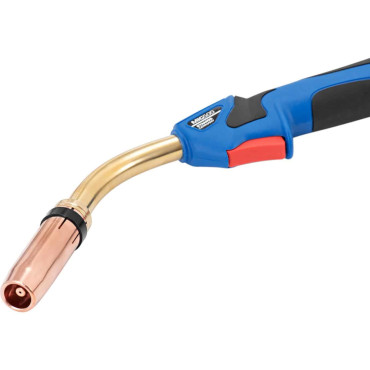

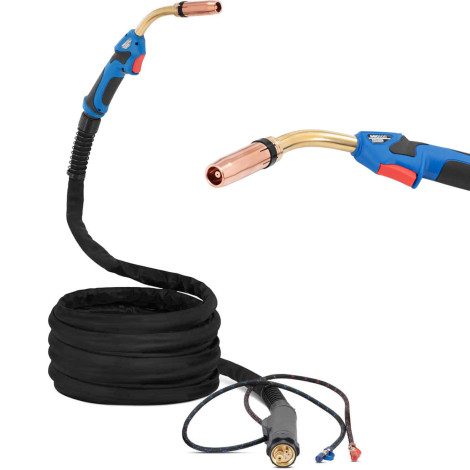

10021314Welding holder for Migmat brand Stamos Germany It allows you to get high-quality welding welds without effort. The device has impressive parameters for welding methods
MiG / mag and optimal cooling of the handle for continuous operation. See the evenly giving wire and unusual quality welding during MIG / MAG welding. Welding handle tolerates the intensity
up to 500 a for protective gas
CO2 or 450 A For mixed gas and impresses the work cycle
100%. The torch tension is
113 V. It allows you to effectively perform most welding work and obtain optimal welds. The MIG / MAG cable is connected to the welder using a tried and tested Euro plug. Accessory thanks to length
4 m It provides the freedom of movement necessary for precise work. High-quality burner components are optimally matched. MIG / MAG holder is probably in your hand and the protective casing perfectly toler even hard work. At the gas flow
10-20 l / min The burner is reliably cooled and creates a stable arc that provides high-quality welds.
Product features: - - high quality MIG500 welding handle for MIG / MAG welding,
- - the working cycle at maximum power is 100%,
- - ideal for welding works up to 500 and with CO2 and 450 A with a mixed shielding gas,
- - gas flow for welding 10-20 l / min and cooling the burner,
- - 4 m long wire provides comfort and freedom of movement.
Technical parameters: - - catalog number - 10021314
- - article - New
- - Model - Swt500mig4
- - shielding gas flow [l/min] - 10-20
- - Rated working cycle [%] - 100
- - Rated voltage [V] - 113
- - Rated entrance current [A] - 500 A CO2 / 450 A Mix
- - Coverage gas type - CO2 / Mix
- - size [mm] - 4 m x 16 mm²
- - Welding method - MiG / mag
- - shock voltage [V] - 60-70
- - wire diameter [mm] - 1.2-1.6
- - Dimensions (DXSXW) - 400 x 3.5 x 5 cm
- - weight - 3.6 kg
- - Dimensions of shipment (DXSXW) - 49.5 x 38 x 7.5 cm
- - shipping weight - 4 kg
Included: - - Welding handle
- - User manual
