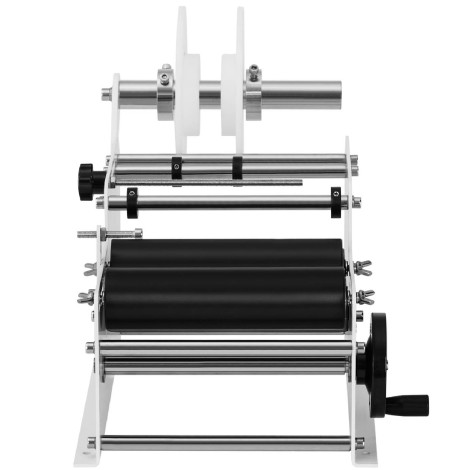

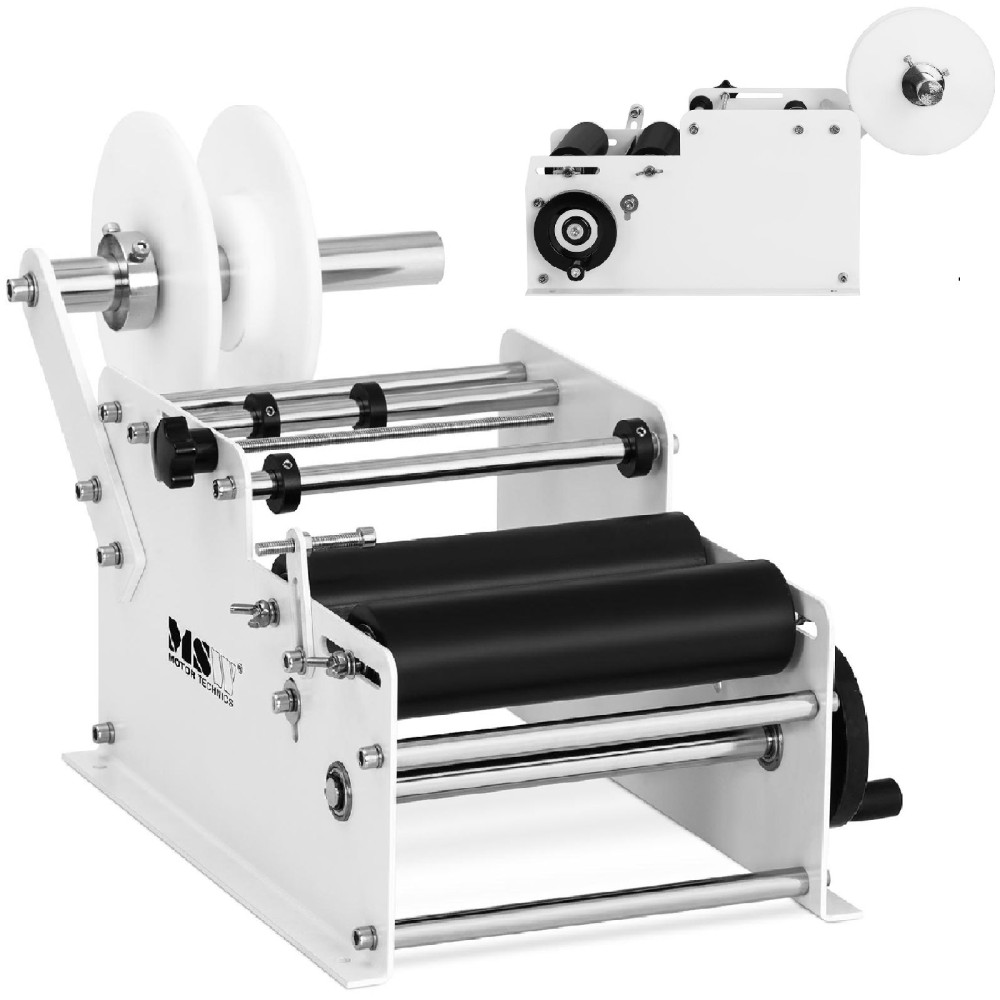

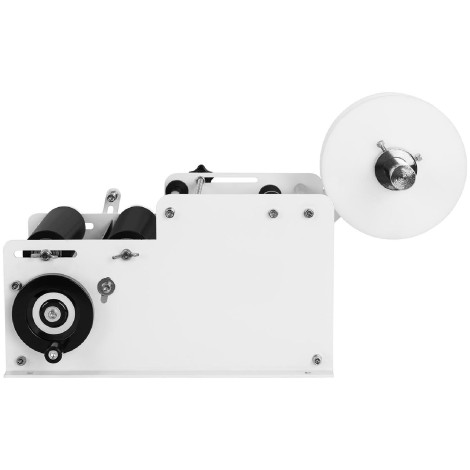

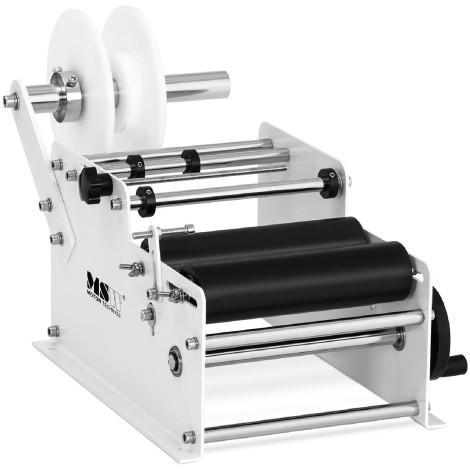

Label labeling machine for hand bottles 20-40 labels / min

Manufacturer's code: 10061275

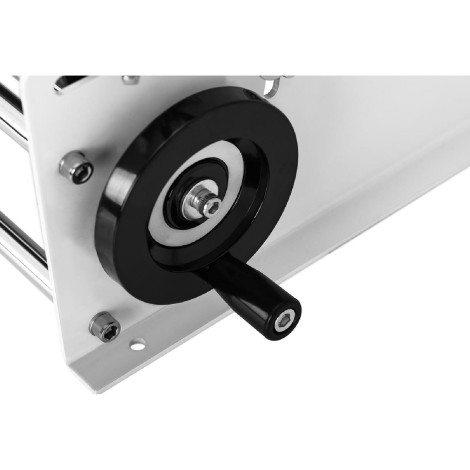

Brand label MSW This manual device for sticking labels eg on bottles and jars and other such packaging. It will work in every industry that produces a lot of packaged products. Labeling performance is 20-40 pcs ./min. It depends on the speed of the crankcase. The device sticks with an accuracy of +/- 1 mm. Fits labels with a width 26-165 mm and length 25-260 mm. The versatility of the equipment makes it suitable for bottles and other diameter packages 15-100 mm. Inner diameter roll with label is 70 mmand external 200 mm. Coal construction steel (Q235) Provides high strength label.
Product features:

• - Reliability - coal construction steel (Q235),
• - Performance - I label 20-40 pieces per minute,
• - Versatility - for labels with a width of 26-165 mm and 25-260 mm long,
• - Fit- for bottles and round containers with a diameter of 15-100 mm,
• - Precision - Labeling in the range of +/- 1 mm.

Technical parameters:

• - Model - MSW-Lmm-01
• - catalog number - 10061275
• - article - New
• - Label sticking speed - 20-40 pcs ./min
• - Material - Steel
• - Precision - +/- 1 mm
• - Dimensions (DXSXW) - 47 x 27 x 27.5 cm
• - weight - 6 kg
• - Dimensions of shipment (DXSXW) - 39 x 27 x 30 cm
• - shipping weight - 7.94 kg

Included:

• - label,
• - Hexagon key - 4 items
