Isolator Bulk for downloading insulation from cables and wires - 7 entrances

€2,543.34
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10062918

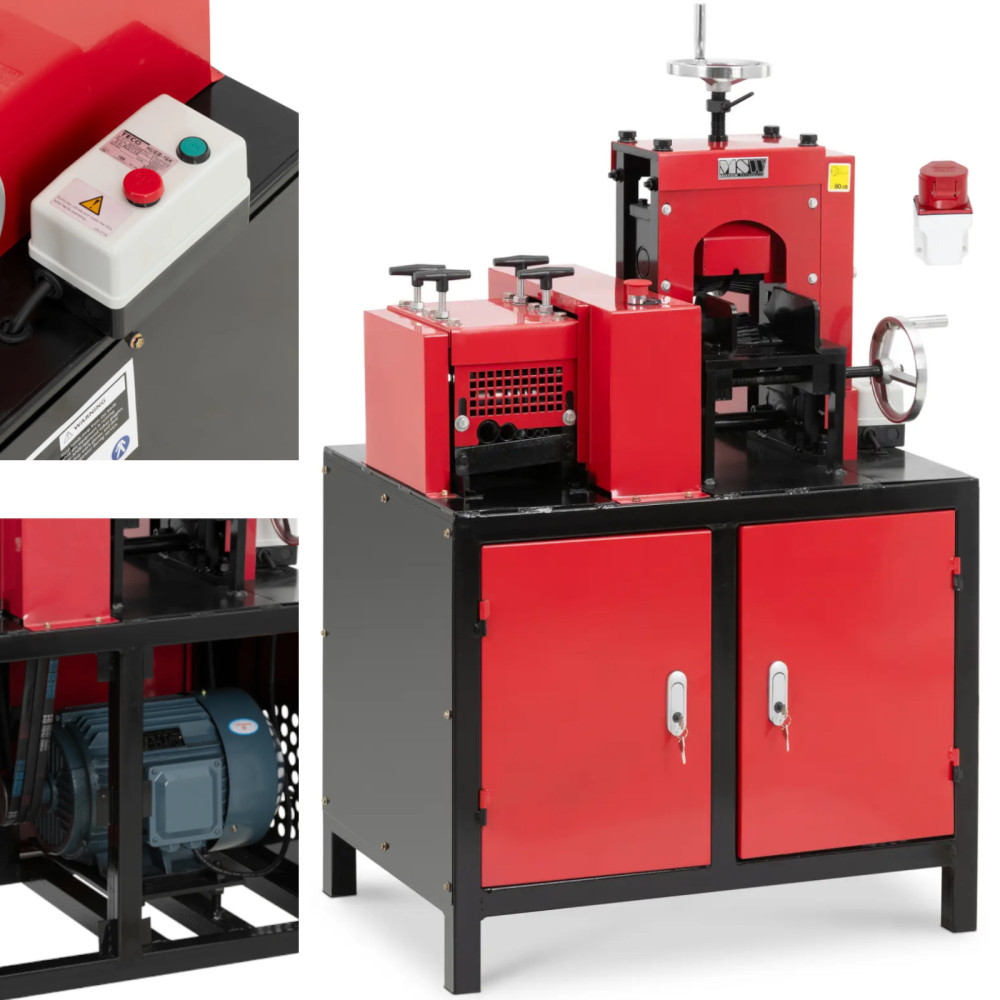

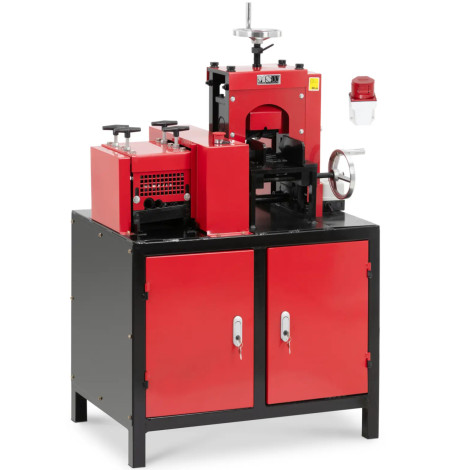

Electric coramole for brand cords MSW It allows you to separate the metal core from isolation in workshops, recycling and industrial applications quickly, clean and without effort. Professional device reliably will remove the outer coating from turns, copper, aluminum wires and thick high voltage cables up to 120 mm thick. Seven holes Allows you to use a machine for machining of various sizes. The device allows you to work extremely fast and without fatigue. Has Large power 3000 W and high speed of automatic feeding. After inserting the cable, the machine starts using the switch. Strong cutting rollers grab the cable and then remove the insulation evenly and precisely, without damaging the core. Thanks to the adjustable power levels, the peel can easily be adjusted to different types and wires thicknesses. The machine was designed for intense and long-term use. Solid Carbon steel housing and cast iron and high-quality cutting rollers provide exceptional durability even during everyday work in demanding conditions. Strong construction limits consumption and significantly reduces the need for maintenance. This means that it will be reliable for many years and will maintain high performance.
Product features:
  • - corakers for 3000 W motor corders and high cutting speed,
  • - pressure and cutting depth of cable peelers can be set according to needs,
  • - 7 holes for high-voltage wires with a maximum thickness of 120 mm,
  • - made of carbon steel and cast iron ideal for years of intensive use,
  • - Simple operation, simply place the cable in the corresponding tray opening and press the switch.

Technical parameters:
  • - catalog number - 10062918
  • - article - New
  • - Model - MSW-Sstc-cm11
  • - Power type - Network
  • - Material - Carbon steel, cast iron
  • - Color - Black, red
  • - Tension [V] - 400
  • - IP protection degree - Ip20
  • - power [W] - 3000
  • - cable diameter [mm] - 1 - 120
  • - IEC protective class - And
  • - Diameter peeling a cable with insulation - 120 mm
  • - Number of blades - 5 PC
  • - Minimum wire length - 1.3 mm
  • - noise level - 80 dB
  • - Dimensions (DXSXW) - 53 x 85 x 130 cm
  • - weight - 211 kg
  • - Dimensions of shipment (DXSXW) - 91 x 60 x 138 cm
  • - shipping weight - 240 kg

Included:
  • - Carpet for cord
  • - Allen key
  • - 2 handles
