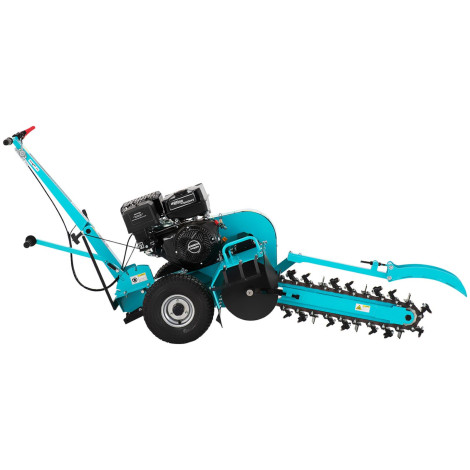

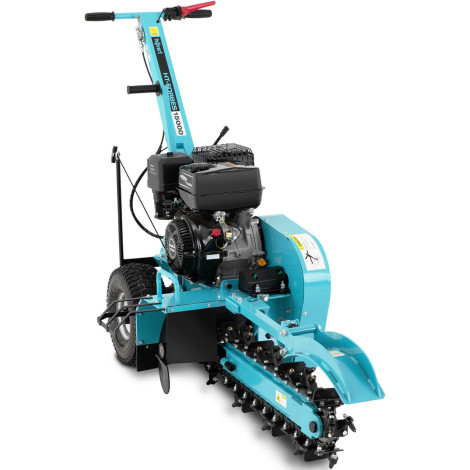

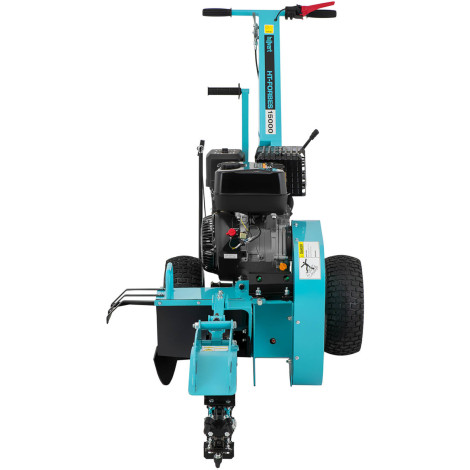

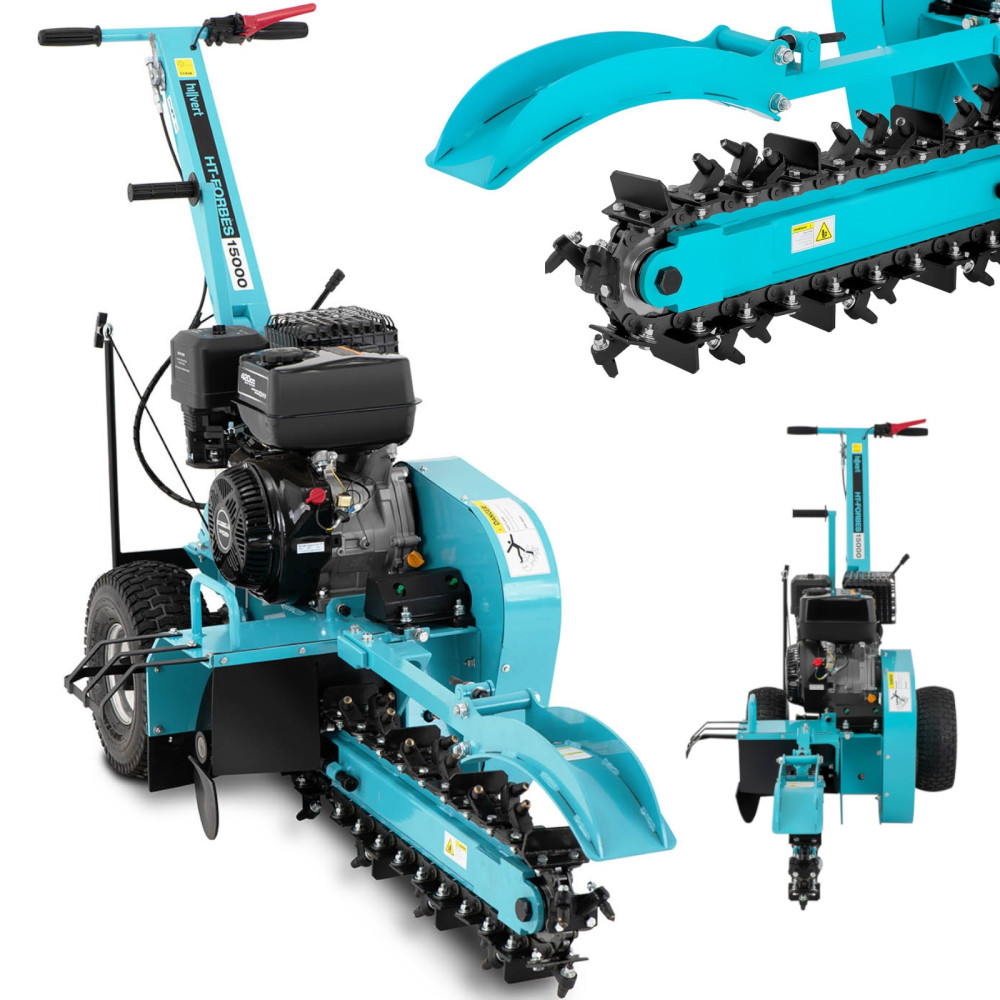

Chain excavator for linear excavations for pipe cables 600 mm 15 km 3.6 L

Manufacturer's code: 10090163
Brand chain excavator Hillvert It is a practical machine that allows you to quickly and safely diverge ditches to water supply, electric or irrigation systems. He even deals with a very hard ground. It will work on construction sites, backyards and wherever heavy equipment can not be used.
The device has efficient gasoline for 15 km. It allows you to perform linear excavations with different depths in a short time (200, 450, 600 mm). Snail brushing the ground one-way, which minimizes the substrate damage and facilitates the bulking grooves. The excavator has been equipped with a wear-resistant chain and a safety clutch that turns off the machine after encountering a stone or root. The mini excavator housing was made of durable powder painted metal.
Product features:

• - High power - 4-stroke petrol engine 15km with a speed of 3600 rpm,

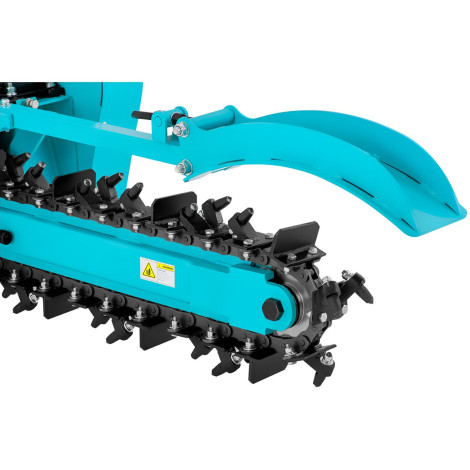

• - Durability - digging chain with tempered teeth,
• - Adjustment - digging depth from 200 to 600 mm,
• - Reliability - a durable construction made of powder-painted steel,

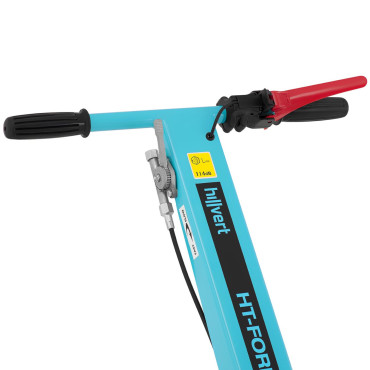

• - Mobility - a compact look, large wheels and an ergonomic handle,
• - Safety - Disabling if you come across an obstacle.

Technical parameters:

• - Model - Ht-Forbes-15000
• - Producer code - 10090163
• - Product condition - New
• - chain speed [m/s] - 9,17
• - Grooves depth [mm] - 200, 450, 600
• - grooves width [mm] - 100
• - engine power [kW] - 11,03

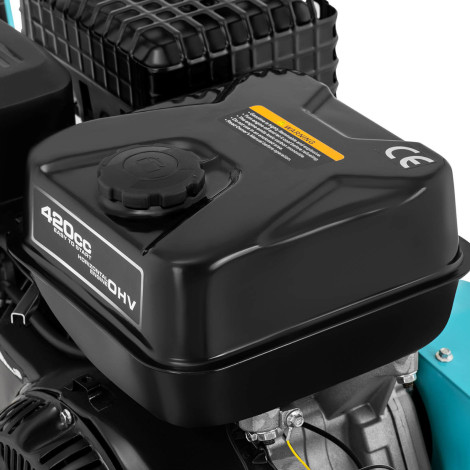

• - cubic capacity [cm3] - 420cc
• - digging efficiency [m/h] - 60
• - chain length [mm] - 203.5
• - fuel type - Petrol
• - Number of teeth - 27
• - acoustic power level [dB] - 114
• - engine power [KM] - 15
• - engine type - 4-stroke Dajiang engine
• - start - Manual
• - oil tank capacity [l] - 1,1
• - Fuel tank capacity [l] - 3,6
• - rotational speed [obr./min] - 3600
• - Dimensions (DXSXW) [cm] - 130 x 70 x 80
• - weight [kg] - 160
• - Dimensions of shipment (DXSXW) [cm] - 115 x 76.5 x 89.5
• - shipping weight [kg] - 192

Included:

• - chain excavator

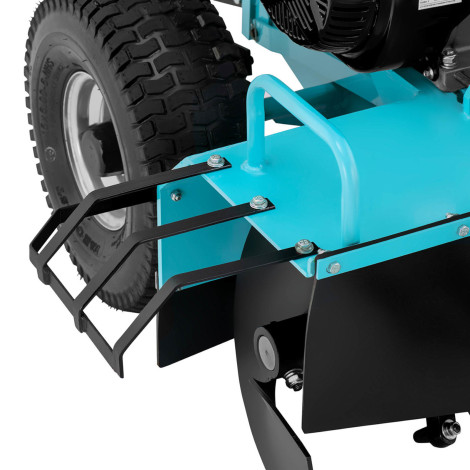

• - Fenders - 2 pcs (220 x 173 mm and 555 x 150 mm)
• - Key to the candle
• - screwed handle for the control bar
• - Control bolt screw
• - User manual
