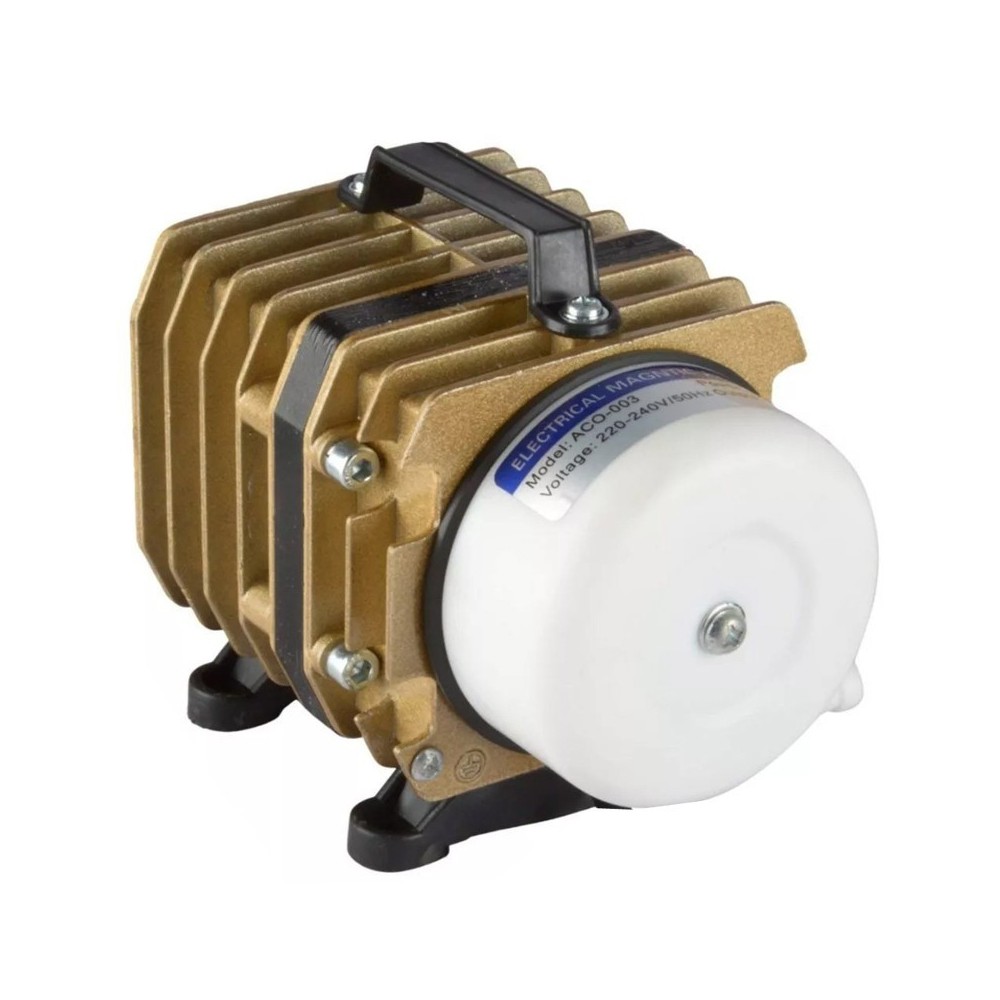

SunSun ATO-003 aerator

Heavy Series has the same proven and simple engine construction. However, to produce individual and also key elements, slightly other materials were used. The piston is made of thermoplastic materials, constantly adjusting its volume to the shapes of the engine where, at high temperatures, there may be distorted to only 0.1mm. Despite these small changes in the volume of metal, with the income of the temperature, the piston fills the cylinder tightly, maintaining the highest work efficiency.

The cylinder and movable elements are made of highly durable aluminum alloy ZL102. The use of this more expensive, compared to ordinary ACO materials, has noticeably affected the volume of work, efficiency, and above all the strength of the device. In Heavy Series ACO, the windows of the engine oil, orienters, etc., the use of artificial grease is not effective in a greater interval, as it can be easily used. Instead, the walls of the cylinder and the piston are highly polished. The finish is real and does not artificially reduce friction, while affecting the operating temperature and current consumption.

The pump in the set has a connection hose for the splitter. This element supports standard 4 / 6mm sizes.

Technical data:

- Power: 45W

- Efficiency: 40l / min

- pressure of the pressed air: 0.03MPA

- Weight: 1.6kg

- Dimension: 181x94x118mm

- Number of outputs to the hoses: 6

- Color: Golden
