Manufacturer's code:

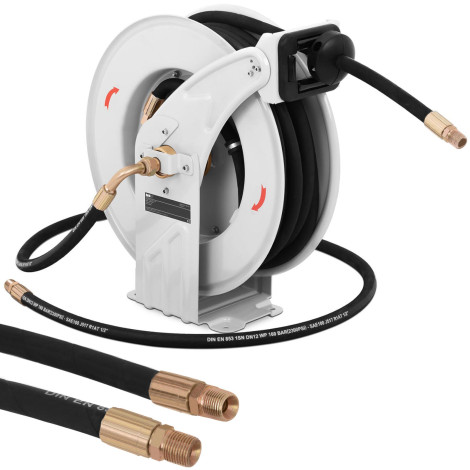

10060832Pressure cable with brand retractor MSW It will work in workshops, production plants, car websites and in a household. It will successfully increase the range of pneumatic tools and other types of devices connected to the compressor or water source.
Wire
15 m It enables freedom during operation.
Latch It has a lock that will lock the hose on the selected length (25 brake position). The lock prevents the entire hose to the drum during adjustment. 4 Rolls reduce the consumption of the wire, and thus prolong its life. The automatic rolling function based on the spring operation allows you to quickly hide the hose after the task has been completed and maintained in the workplace. The housing was made from
iron resistant to damage and covered with polyester-resistant UV radiation. The snake was made of rubber for working in the temperature range
-20 to 40Deg C. The hose remains flexible and do not swell. It is also suitable for hot water to 100Deg C. The attached accessories allow you to
Fast assembly. The shaped handle has 4 holes with which it is easy to screw it into the floor, walls or to the ceiling.
Product features: - - versatility - Range 15 m,
- - work at - -20 to 40deg C,
- - automatic rolling mechanism,
- - latch mechanism - 25 lock positions,
- - Easy operation - Safe and simple assembly.
Technical parameters: - - Model - MSW-Phr15
- - catalog number - 10060832
- - article - New
- - housing material - Iron
- - Snake material - Rubber
- - Hose length - Max. 15 m
- - internal / outer diameter of the pressure wire - 13/21 mm
- - Working pressure - Max. 160 bar
- - Working temperature - From -20 to 40deg c
- - thread - Npt1 / 2`m
- - Dimensions (DXSXW) - 44 x 23 x 48 cm
- - weight - 23.6 kg
- - Dimensions of shipment (DXSXW) - 54.5 x 26 x 51 cm
- - shipping weight - 28.8 kg
Included: - - snake
- - Roll

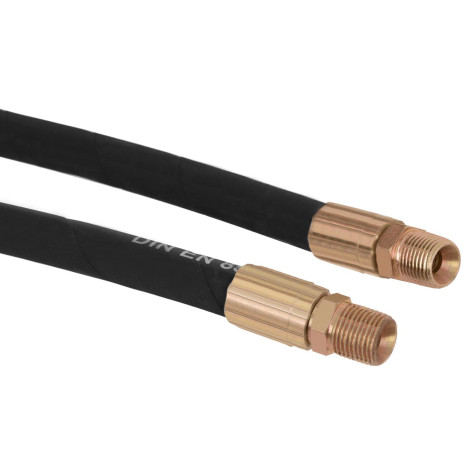

- - DN8 high-pressure hose - 2 m
- - Instructions
