Snake Pneumatic pneumatic pneumatic cable Foil on automatic drum 18 bar 20 m + 3 m

€89.54
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10061872
Branded pneumatic snake MSW Provides greater freedom of movement in the workplace. Made from durable material, tolerates Working pressure 18 bar. It can work in a varied temperature From -5 to 45Deg C. The automatic drum allows you to easily curl and keep your snake. A well-thought-out design is the layers. Developing runs in 2-3 positions per meter. The drum support for pneumatic operations can be easily attached on the wall or ceiling. The set includes assembly accessories.
Product features:
  • - Freedom - a larger range of movements in the workplace thanks to the 20 + 3 m hose,
  • - Practicality - automatic reel,
  • - Variability - hose settings in 2 or 3 lock positions per meter,
  • - Safety - Effective hose protection in a plastic housing,
  • - Flexibility - Easy installation on the wall or ceiling.

Technical parameters:
  • - Model - MSW-Pro-A 20-3
  • - Producer code - 10061872
  • - state - New
  • - Air operating pressure [bar] - 18
  • - cable length [m] - 20 + 3
  • - Cable material - Plastic (PVC)
  • - thread - 1/4 NPT / BSPT
  • - housing material - Plastic (PP)
  • - Air / water connection diameter ['] - 1/4
  • - ambient temperature [deg C] - -5 - 45
  • - Internal / outer diameter of the pressure wire [mm] - 9.5 / 15.5
  • - Dimensions (DXSXW) [cm] - 55 x 34 x 24
  • - weight [kg] - 7,25
  • - Dimensions of shipment (DXSXW) [cm] - 45 x 38.5 x 25
  • - shipping weight [kg] - 8,05

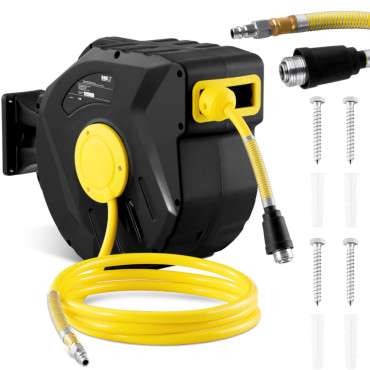

Included:
  • - Pneumatic hose on the drum
  • - Mounting accessories
  • - User manual
MSW
1014704
55 Items

Data sheet

Kod producenta
1014704
