Manufacturer's code:

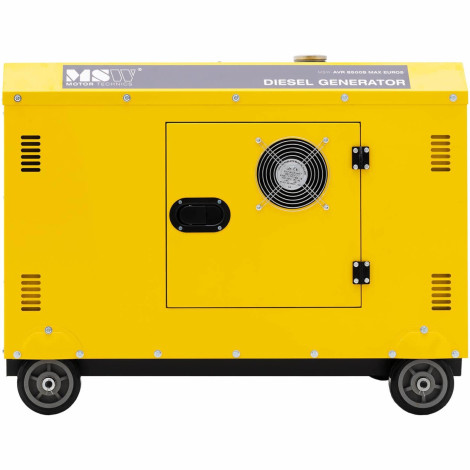

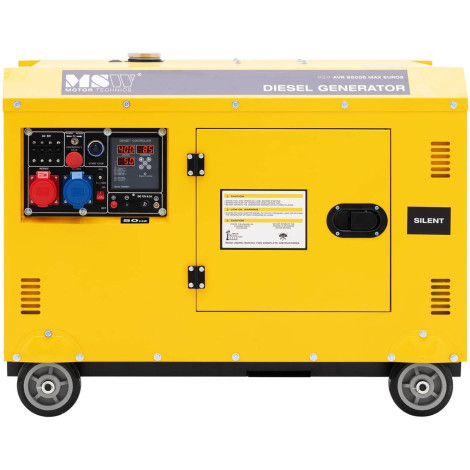

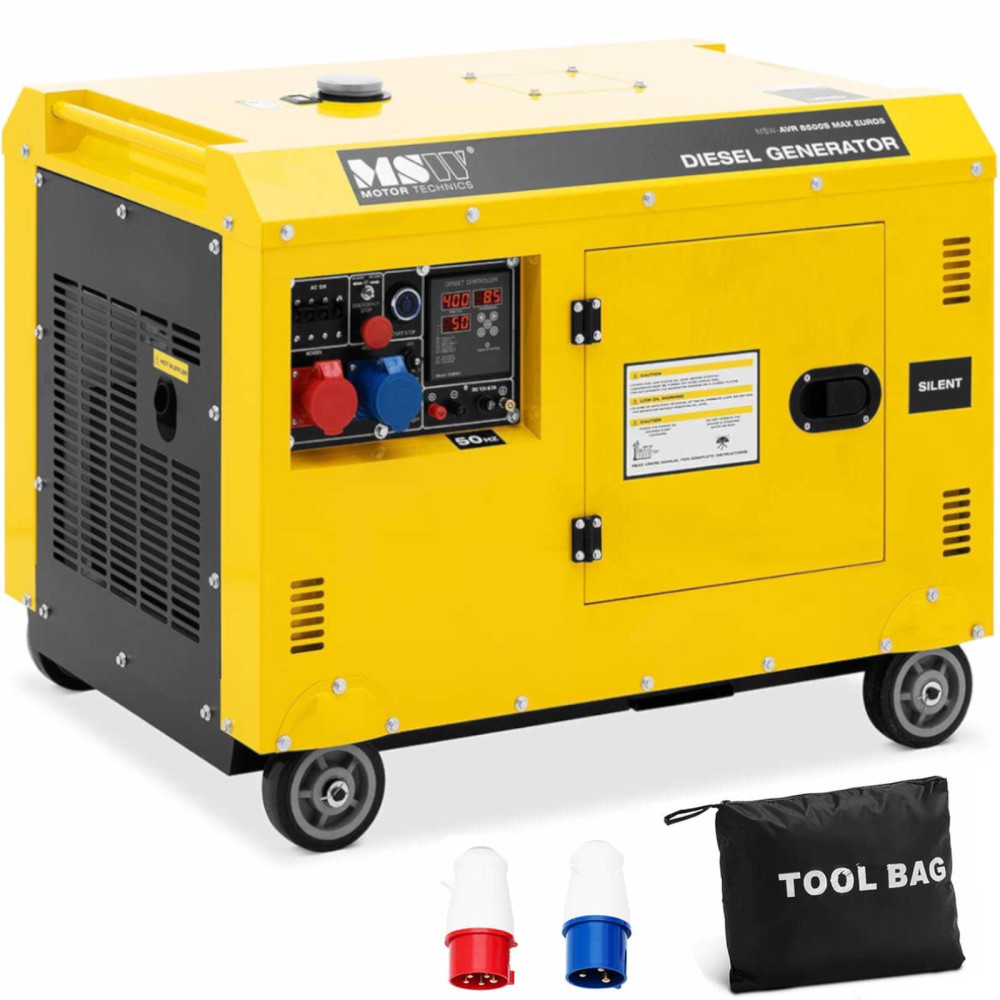

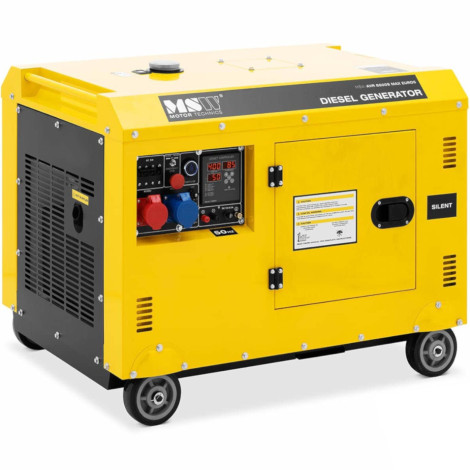

10062297Diesel power generator MSW Provides the necessary electricity in the event of interruptions in the power supply. This allows a strong 4-stroke diesel engine. The device consumes only
30 l fuel for 12 hours. Equipment works with
Power 7220/8500 W. Thanks
three sockets (240/400 V and 12 V) You can support several different machines, even parallel. Maximum power of the slot

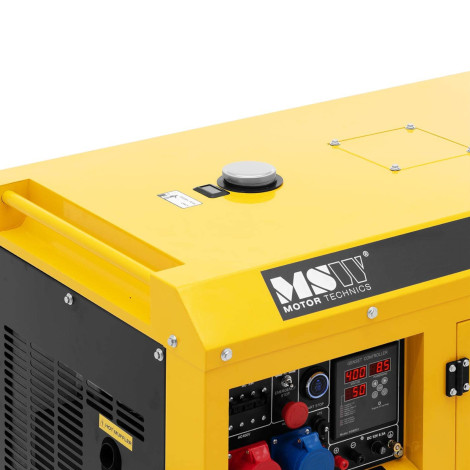

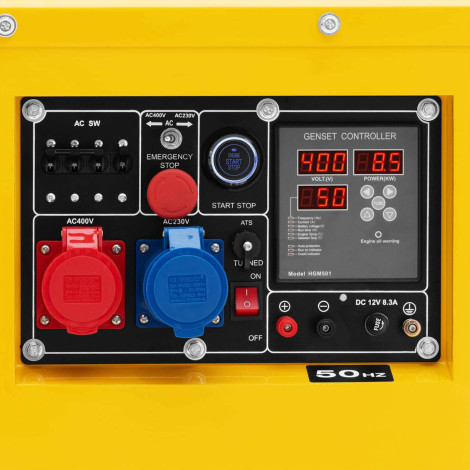

230 V is 7220 W, and 400 V sockets are 8500 W. Thanks to this, the equipment is ideally checked in emergency situations at home, in the office, camping, on a boat or in the industrial sector. The generator turns on using an electric starter. All settings can be read from the display during real-time operation. The device works with volume

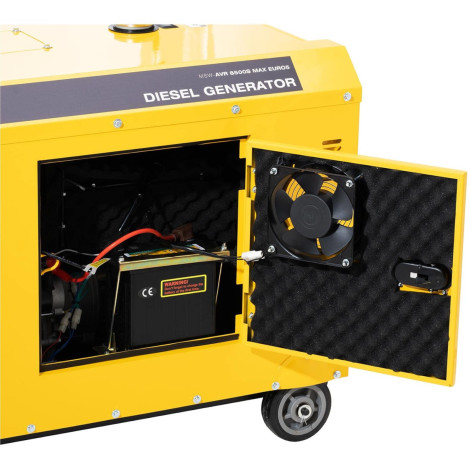

from 78 to 96 dB. The drive unit is safely made and clean finished. Effective air cooling protects the engine from overheating. Overload protection prevents engine damage if overheated. Thanks to the IP23 protection class, the aggregate is protected from water spraying at an angle to 60deg. The device was also protected against solid bodies up to 12.5 mm. A large tank ensures long power supply, even with significant loads. The compact unit with a diesel engine is equipped with AVR voltage regulator, an emergency switch, low pressure sensor and remote control.
Product features: - - maximum power 7220/8500 W or 10 kVA,
- - up to 12 hours of working time on a full 30 L tank,
- - simultaneous use of various machines using three outlets from 240/400 V AC and 12 V DC,
- - high-quality materials and solid execution ensure durability,
- - Effective air cooling, overload protection and IP23 protection class.
Technical parameters: - - catalog number - 10062297
- - article - New
- - Model - MSW-AVR 8500S max Euro5
- - noise level [dB] - 78
- - Material - Aluminum, aluminum alloy
- - 12 V output - So
- - Handles for carrying - So
- - continuous power - 10
- - Diameter Cylinder X SUW [mm] - 100x84
- - jumping volume [cm³] - 660
- - Emergency switch - So
- - engine model - 1100f
- - engine speed [obr./min] - 3000
- - Ignition system - Samowzbudzenie
- - IP protection degree - Ip23
- - Fuel consumption [l/h] - 2,2
- - fuel type - Diesel
- - frequency [Hz] - 50
- - Fuel tank capacity [l] - 30
- - Rated output current [A] - 8.3
- - Rated output power [W] - 99.6
- - overload protection - So
- - oil tank capacity [l] - 2,5
- - working time with a full tank [h] - 12
- - Engine - Synchronous work AC
- - 50 Hz rated power [kVA] - 10
- - Power factor - 1
- - maximum power [W] - 7220/8500
- - Rated output voltage [V] - 12
- - Pulse width modulation - So
- - engine oil type - SAE 10W30 (above the degree of CD)
- - pilot - So
- - start - Electric
- - acoustic power level [dB] - 78
- - acoustic pressure level [dB] - 96
- - Fuel consumption [g/kWh] - ≤230
- - voltage regulator - So
- - Work temperature range [deg C] - -10 - 40
- - Tension [V] - 240/400

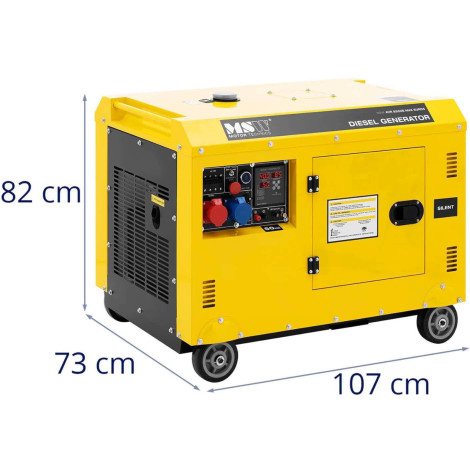

- - Dimensions (DXSXW) - 107 x 73 x 82 cm
- - weight - 199.1 kg
- - Dimensions of shipment (DXSXW) - 112 x 76.5 x 93 cm
- - shipping weight - 220.2 kg

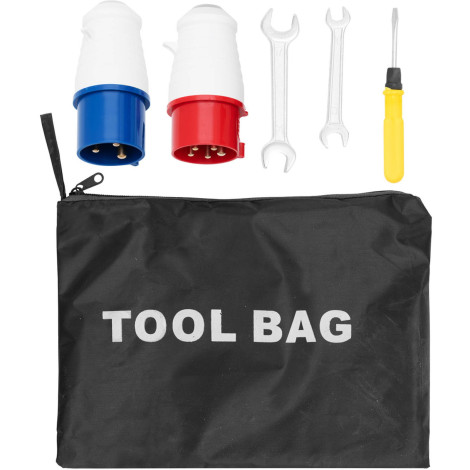

Included:
