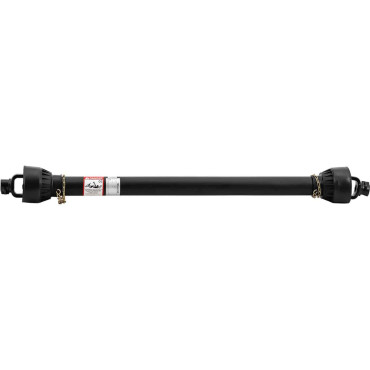

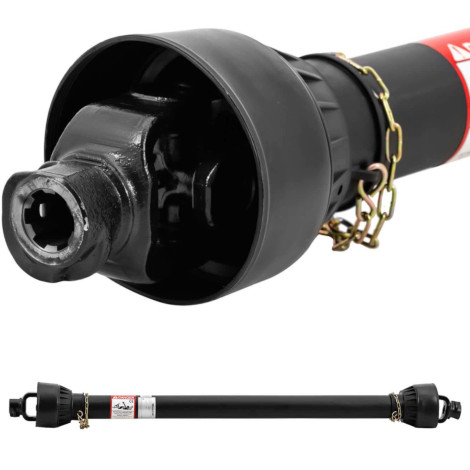

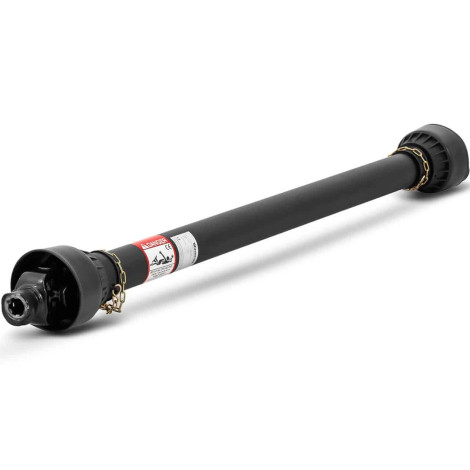

Roller shaft Power relay shaft 160-235 cm 1 3/8 '' 6 teeth

€214.61
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10280338
Mark's Power Rolling Wall Wiesenfield It enables safe handling of fertilizer spreader, field sprayers, tape or disc sawers, forest armchairs, wood splitters and similar forestry and agricultural devices. The roller can be connected to tractors, trucks or commercial vehicles. All elements were made of steel, which guarantees smooth operation and finally challenges. Wo-telescopic shaft PTO category 6 has an adjustable length in the range 160-235 cm. The shaft is suitable for many popular devices and vehicles because it has a connection with a triangular profile 1 3/8 "With 6 teeth on the drive side and devices. The maximum torque is 780 nmWhile it is ideal for agricultural and forest equipment with lower and medium power. Suitable for a wide range of applications. The shaft has a solid construction, its precise execution and carefully selected materials provide smooth operation.
Product features:
  • - for fertilizer spreader, field sprayers, tape or disc sawers, forest armchairs, shirts, etc.,
  • - suitable for agricultural or forest equipment with a lower and medium-term performance and torque to max. 780 Nm,
  • - with a length compensation 160-235 cm,
  • - WOM has a normalized 1 3/8 "/ 6 tooth fastening,
  • - The articulated telescopic shaft was made of durable steel.

Technical parameters:
  • - catalog number - 10280338
  • - article - New
  • - Model - -Knows PTO-235
  • - Material - PP, steel
  • - PTO cat. - 6
  • - Tractor page - 1 3/8 "/ 6 teeth
  • - Application page - 1 3/8 "/ 6 teeth
  • - length [cm] - 160-235
  • - maximum torque [Nm] - 780
  • - speed of rotation [obr./min] - 540

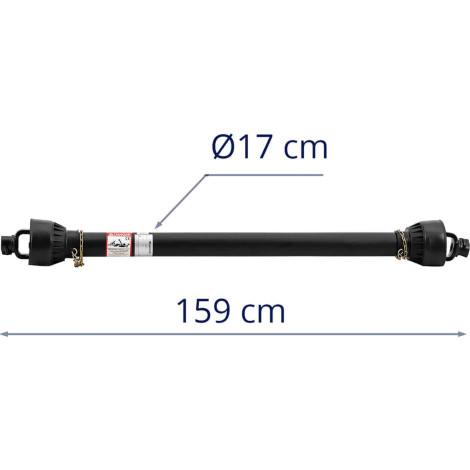

  • - Dimensions (DXSXW) [cm] - 159 x 17 x 17
  • - weight [kg] - 20.8
  • - Dimensions of shipment (DXSXW) [cm] - 163.5 x 19.5 x 19
  • - shipping weight [kg] - 22.1

Included:
  • - WOM
WIESENFIELD
1016821

Data sheet

Kod producenta
1016821
Comments (0)
No customer reviews for the moment.
