Manufacturer's code:

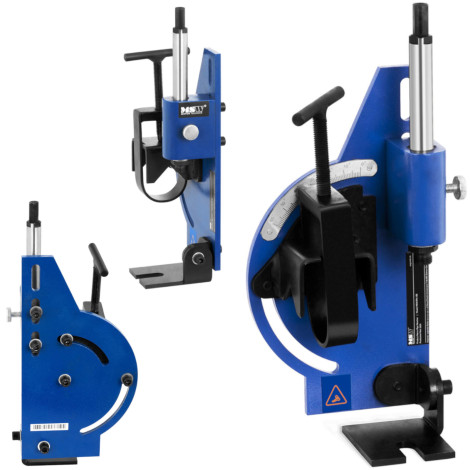

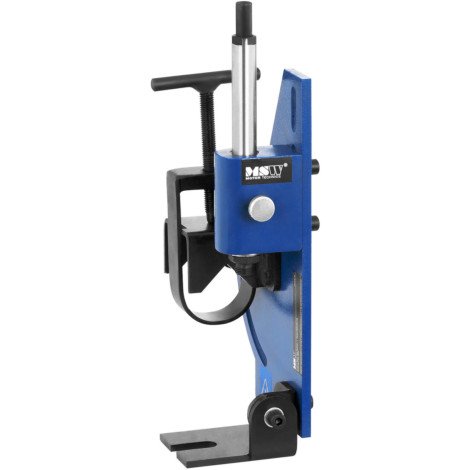

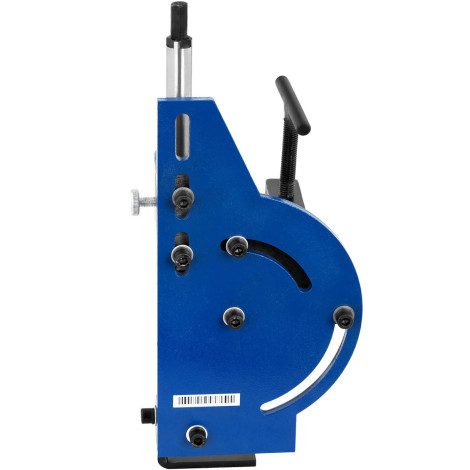

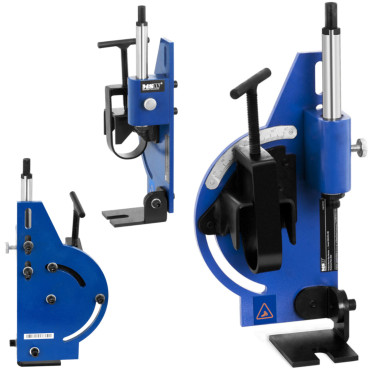

10060476Mark pipe hole MSW It will work in professional or private workshops, locksmiths and factories. The device is
Compatible with blades of different sizes (with a diameter of 1/2 to 5/8 ''). The maximum diameter of pipes should be
51 mm (2 ''). The hole is driven
electrical drill (None included), which is mounted to the stem. His jump is
3-3 / 4 ". The device can be set in the range

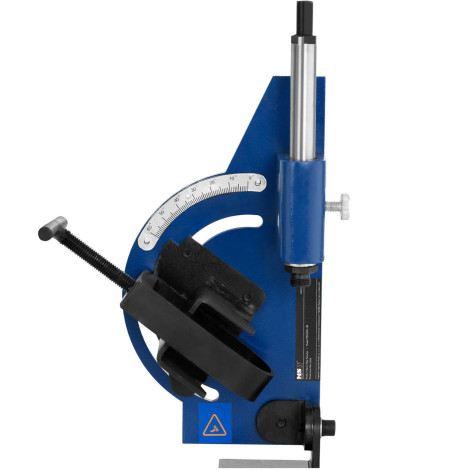

0-60deg . The built-in protractor facilitates the exact selection of the desired value. The device's construction was made of high quality
carbon steel, can be mounted to the worktop.
Product features: - - suitable for pipes with a maximum of 51 mm (2 inches) diameter,
- - blade spindle adapter with diameters 1/2 to 5/8 inch,
- - pie-wiekie at level 3-3 / 4 inch,
- - Possibility of drilling at an angle in the range of 0-60DEG,
- - Made of durable carbon steel.
Technical parameters: - - Model - MSW-Pn-100
- - catalog number - 10061176
- - article - New
- - Maximum pipe diameter - 51 mm
- - Range of machining angle - 0-60deg
- - Thickness of steel structure - 15 mm
- - Diameter of the stem - 12 mm
- - requires the use of drills - So
- - User manual - So
- - Dimensions (DXSXW) - 45.00 x 23.00 x 13.00 cm
- - weight - 4.50 kg
- - Dimensions of shipment (DXSXW) - 35.00 x 20.50 x 22.00 cm
- - shipping weight - 5,15 kg
Included: - - pipe hole
- - 6 mm Allen key
- - User manual
