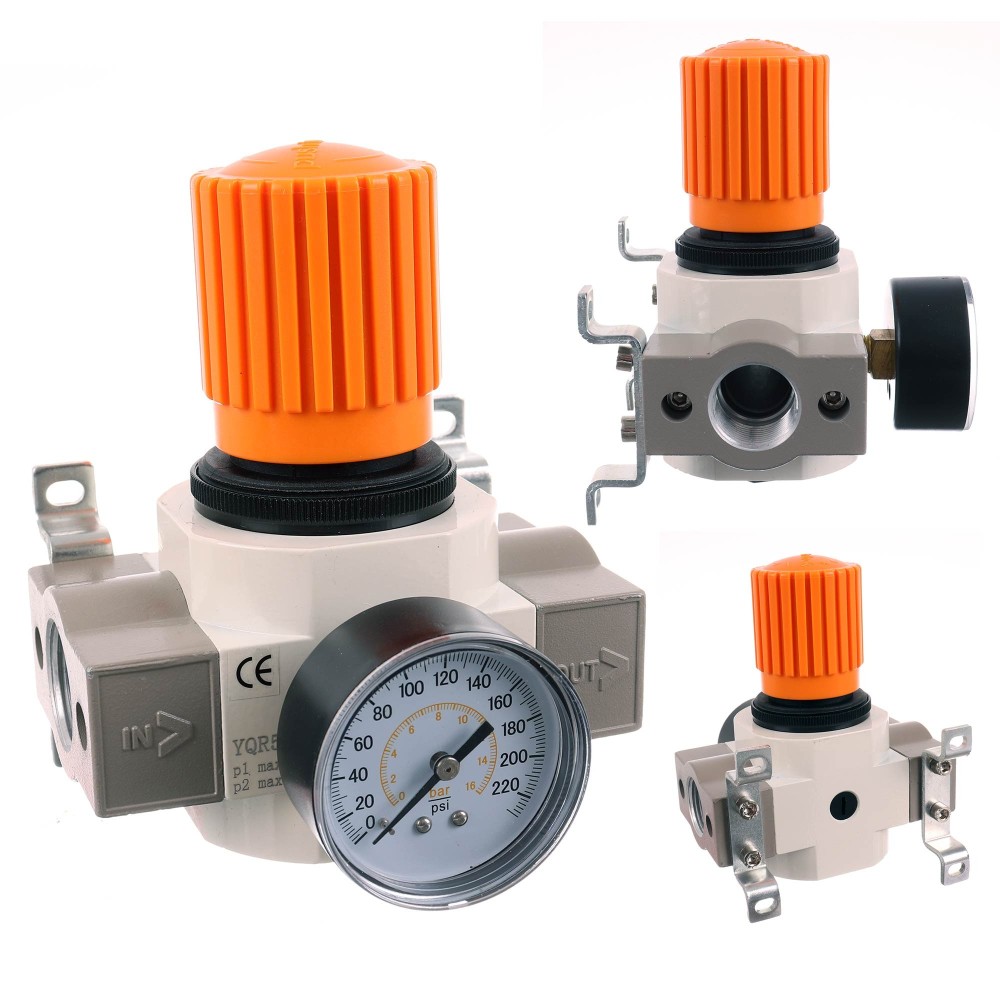

Air pressure reducer 3/4 "16BAR Pneumatic compressor installation

YQR500-06 air pressure reducer This high-quality component designed for pneumatic installations, ensuring precise pressure regulation in the system.

Features:

Precision pressure regulation: Allows you to accurately adjust the output pressure to the requirements of various tools and pneumatic equipment. · Solid construction: made of durable materials, guarantees long-term and reliable operation in demanding industrial conditions.

Easy assembly: Compact dimensions and standard connections make it easier to integrate with existing pneumatic systems.

Built-in pressure gauge: Allows for current pressure monitoring, which increases control over the operation of the system.

Technical data:

• Model: YQR500-06
• Threads: 3/4 "(about 24 mm inside)
• Pressure adjustment range: 0.5 - 12 bar
• Maximum input pressure: 16 bar
• Working temperature: -10 ° C to + 60 ° C
• Nominal flow: up to 5000 l / min
• Dimensions: height 14,5cm - width 11.5cm Depth 6.5cm

Application:

The YQR500-06 reducer is ideal for applications in workshops, production lines and wherever stable and precise control of compressed air pressure is required.

Advantages:

• Reliability: Thanks to a solid construction, it provides long-term work without the need for frequent maintenance.
• Efficiency: Precise pressure regulation contributes to the optimal operation of pneumatic tools, which translates into increased efficiency.
• Safety: Stable pressure minimizes the risk of equipment damage and ensures operational safety.

Included:

• Pressure reducer YQR500-06
• Built-in pressure gauge
• Mounting handles for the wall
