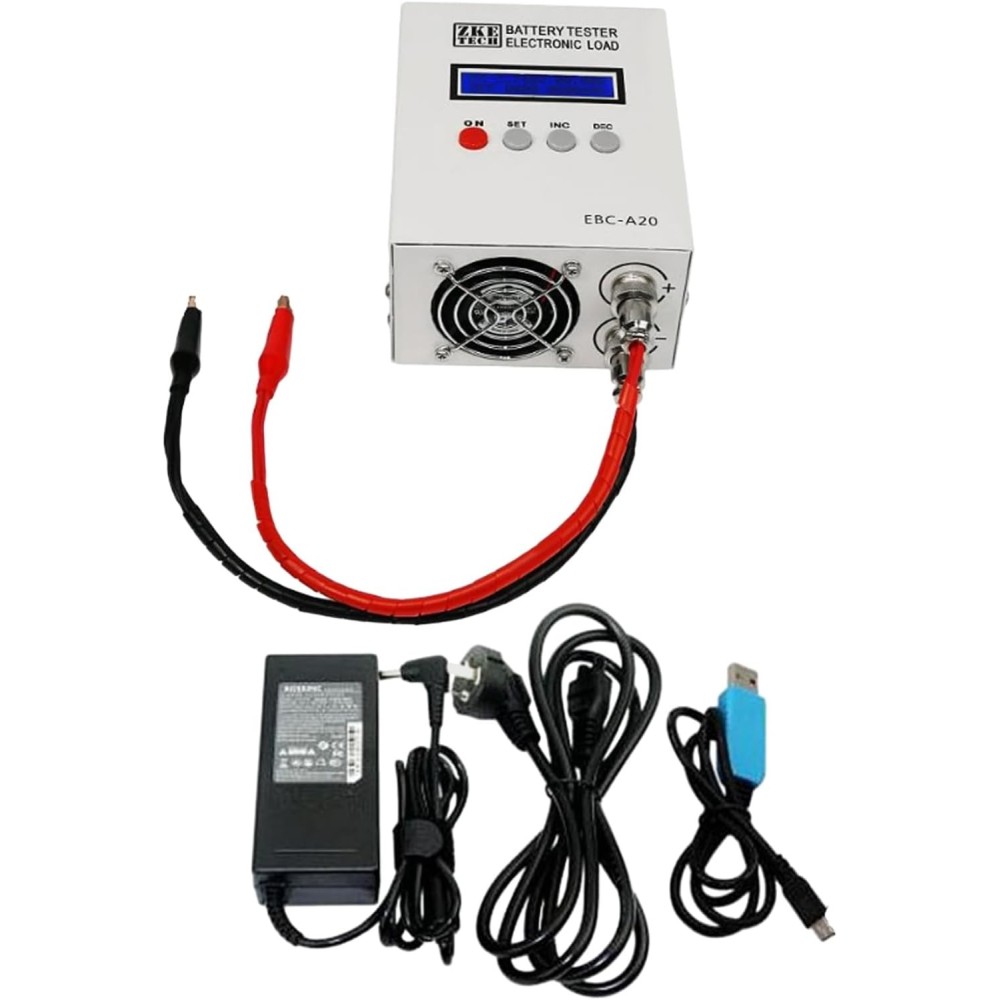

Battery capacity tester EBC-A20 20a lithium and acid-lead

★ ECB-A20 is a battery tester with charging and discharging function, designed to test the capacity of lithium and acid-lead batteries (loading and discharging 20a, maximum power of 85W, 5A).

★ supports separate loading and discharging, as well as work in connection mode to your computer, which allows multiple charging / discharge cycles and using advanced functions via online software.

★ The maximum discharge power is 85W: at 4.2V - 20A, at 8.4V - 10A, at higher voltages less than 10A.

★ Accuracy of the capacity test:

* 10AH / 0.001ah

* 10A-100A / 0.01A

* above 100A / 0,1A

★ Cable connection: Test in a 4-wire system - voltage and intensity measurement takes place with separate cables, which ensures high accuracy.
