Manufacturer name:
S-LS-12 BASICProfessional solder station of the German manufacturer
Stamos Soldering Made of high quality, original components.
The device combines several functions necessary when performing
Professional soldering works with electronic systems such as
SOIC, QFP, PLCC, BGA, SMD etc.
The controlled is fully digital and controlled by an advanced layout
PID Providing very precise temperature control.

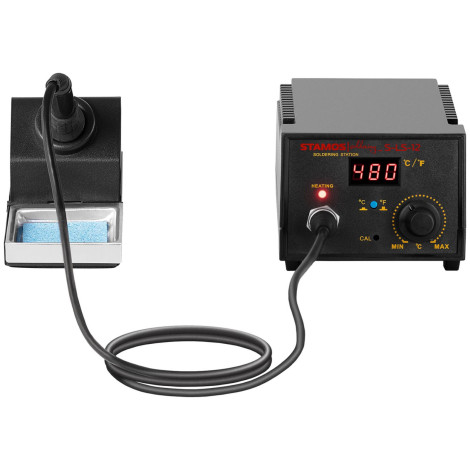

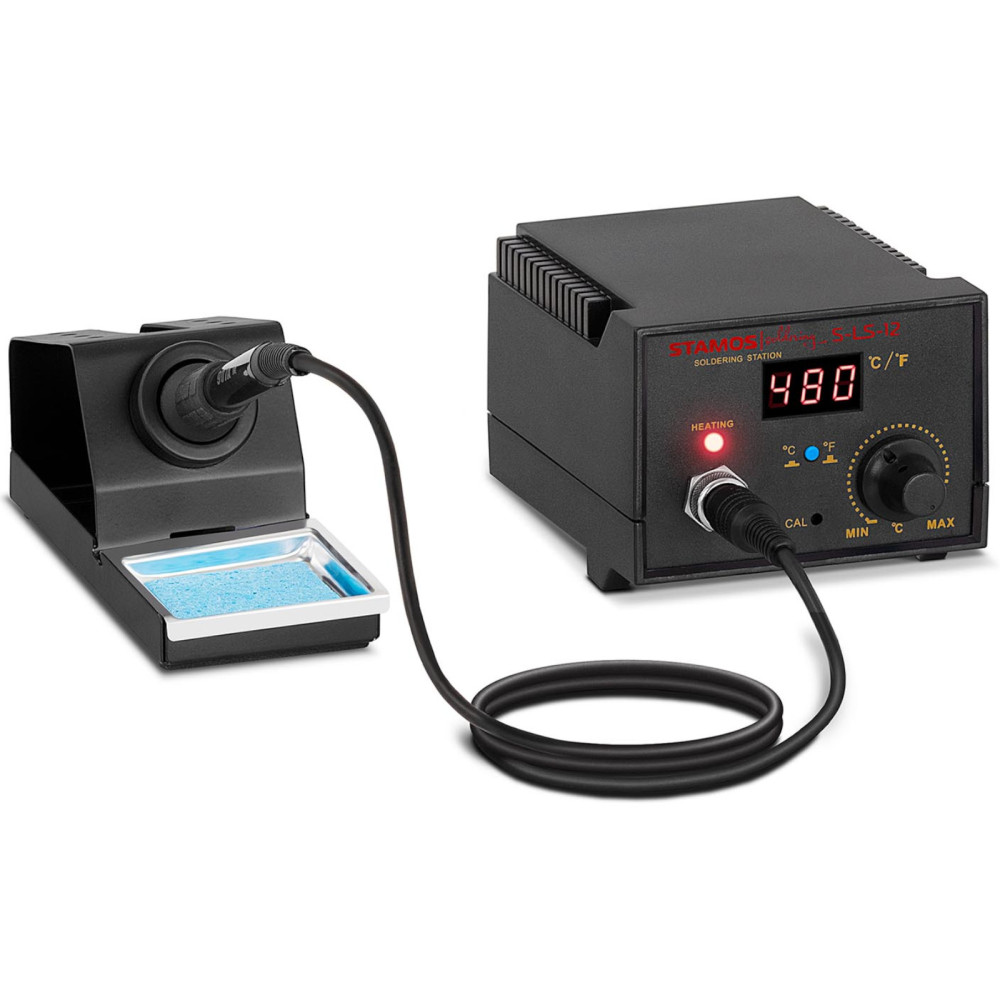

The integrated soldering station includes devices:
- Exact control unit It allows precise determination of the parameters of the patch flask. It has a large LED Display Feeding temperature. Temperature units can be set to DEG C or DEG F.

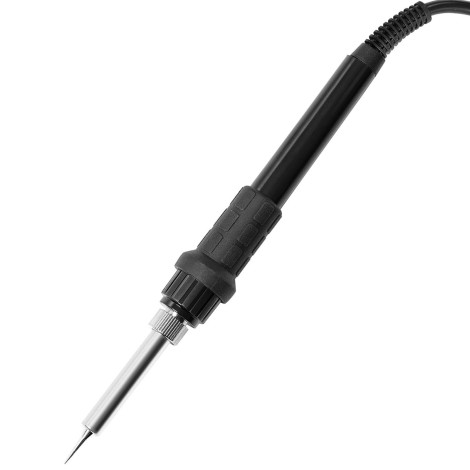

- Soldering iron - grotto flask with power 60w with protection protecting electronic circuits ESD Safe.
Technical parameters: - - Model - S-LS-12 BASIC
- - catalog number - 6127
- - article - New
- - tension - 230 V / 50 Hz
- - power - 65 W
- - rated current - 6 a
- - Display - Led
Soldering flask - - output power - 60 W
- - temperature adjustment range - from 200 to 480DEG C
- - Grotto resistance Solder flask - <2 Ω
- - tension of the grotto soldering flask - <2 M V
General dimensions - - Dimensions (DXSXW) - 16 x 11 x 9 cm
- - weight - 1.15 kg
- - Dimensions of shipment (DXSXW) - 31 x 18 x 12 cm
- - shipping weight - 1.8 kg
The set includes a rich set of accessories: - - Integrated Soldering Station - Draw Solder Flask

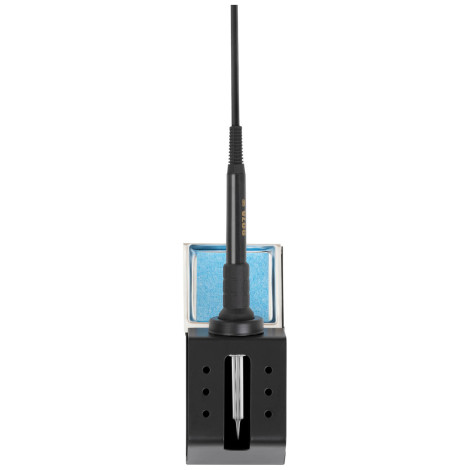

- - A stand with a sponge to a soldering flask
- - EN statement
In the download tab there is an instruction manual in which all elements of the device are described in detail.
