Welter Spotter Puller to remove drawing bodies 4000A S-Spotter 4000

Manufacturer name: S-Spotter 4000

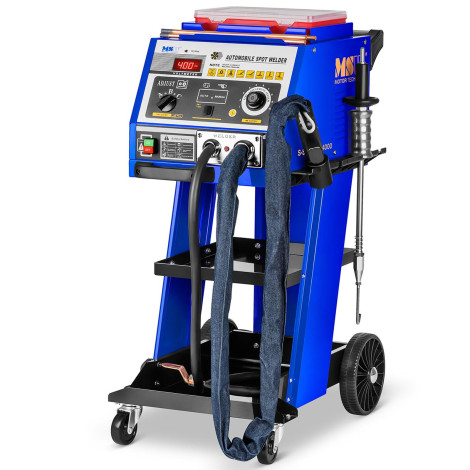

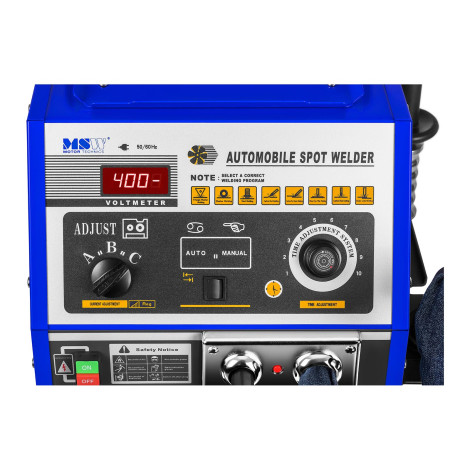

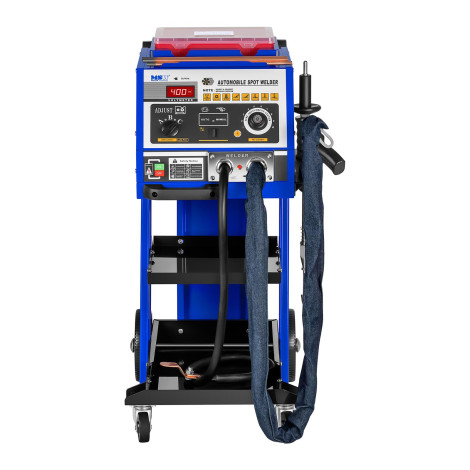

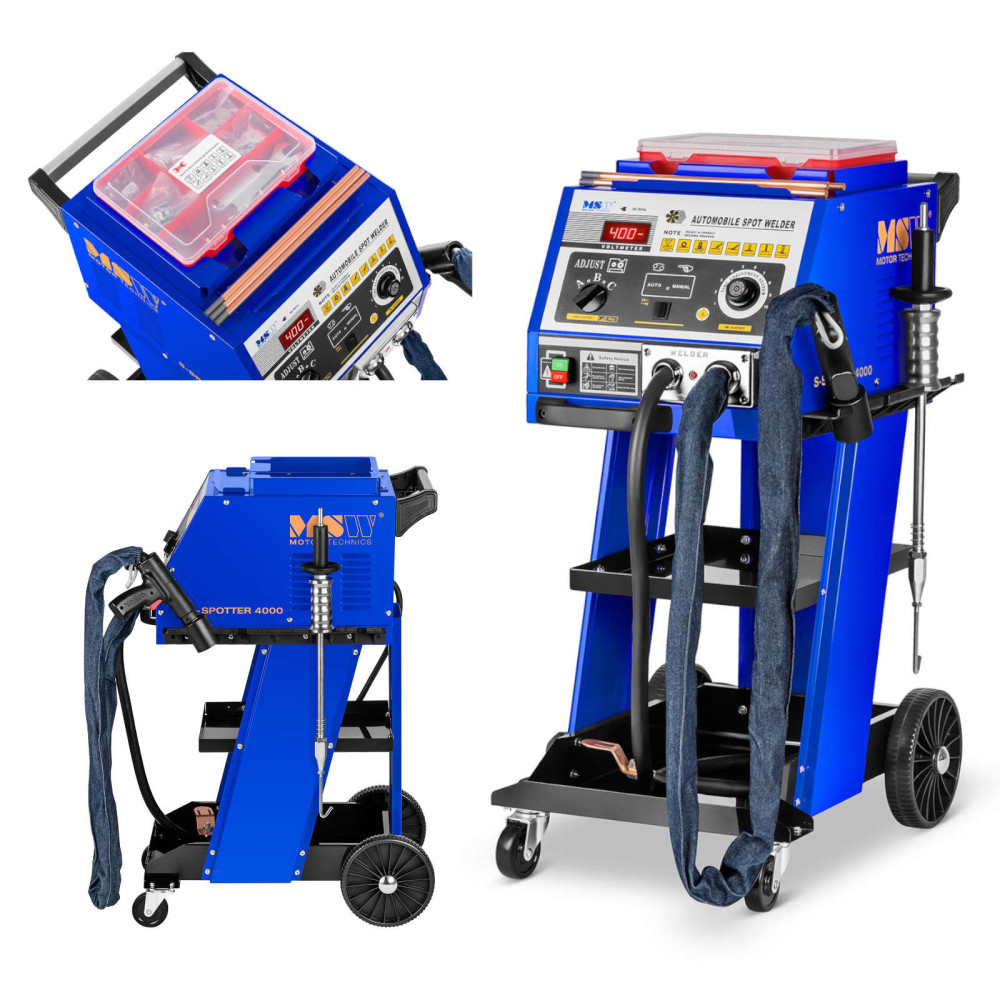

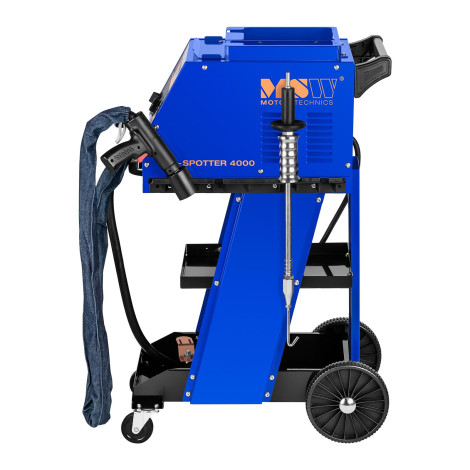

Spotter welding machine It is a device created for effective straightening and smoothing the car parts of the car body. The equipment has an intuitive control panel on which the action mode switch (Auto and Manual) is located, as well as two knobs to determine the operating parameters. The first of them allows you to set the current to a maximum of 4000 A. The second one can determine the machining time in the range from 0.2 to 2 seconds. Fast and precise transmission of signals are the merits of microczips and the latest generation sensors. Safety provides a protection system and fuse 42 A. The S-Spotter 4000 model has a functional trolley with four wheels. Together with the machine, we offer a rich set of accessories.
Features and functions:
- versatility - the device deals with straightening and smoothing various parts of car bodywork
- efficiency - modern microczips and sensors provide quick and precise transmission of signals from the control panel
- Ergonomics - a switch that allows you to select the operating mode, as well as the time and welding control knobs allow you to select parameters for your own needs
- Safety - over the proper operation of the equipment is supervised by an integrated overheating protection system

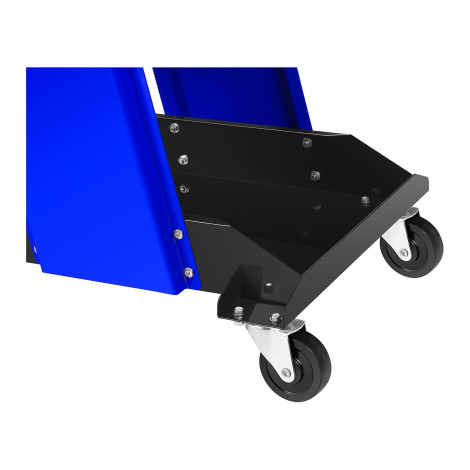

- Mobility - a trolley with four wheels allows you to move freely to any place
- FREE - A set of washers and tools for pulling out Distrosts
Technical parameters:

• - Model - S-Spotter 4000
• - catalog number - 10060442
• - article - New
• - tension - 400 V / 50 Hz
• - Rated entrance power - 16 kVA
• - output voltage - 13 V
• - Rated entrance current - 42 A
• - Maximum output current - 4000 a
• - Current regulation - Low / mid / high
• - Welding thickness - 0.8 + 0.8 mm
• - time adjustment - 0,2 - 2 S
• - fuse - 42 A
• - gun cord - 1.75 m
• - grounding wire - 1,6
• - dimensions - 48 x 61 x 94 cm
• - weight - 51 kg
• - Dimensions of shipment (DXSXW) - 61.5 x 53.5 x 87.5 cm
• - shipping weight - 70 kg

Included:
- S-Spotter welding machine 4000
- Pistol cable - 1.75 m
- grounding wire - 1.6 m
- point hammer
- Carbon rods - 3 pcs
- rod adapter
- Washing adapter
- Triangular washers adapter
- Triangular washers - 10 items
- 10 mm pads - 15 pcs.
- 12 mm washers - 15 items
- key
- pulling hook
- Toolbox
- User manual
