Blachovka welding machine Spotter for drawing out the bodies of the 4000A car body

Manufacturer number: 10060443

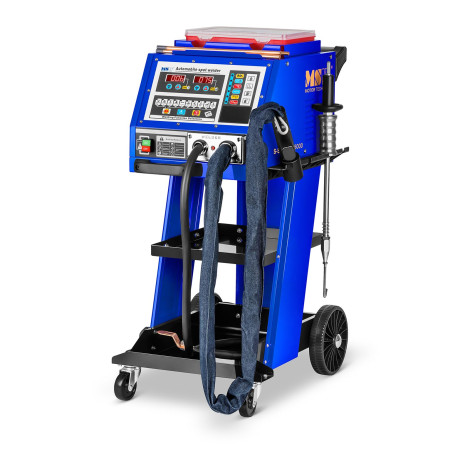

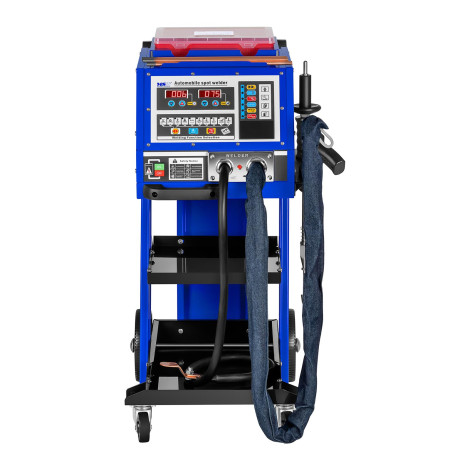

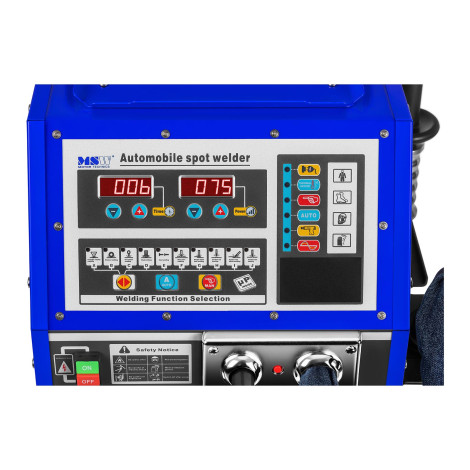

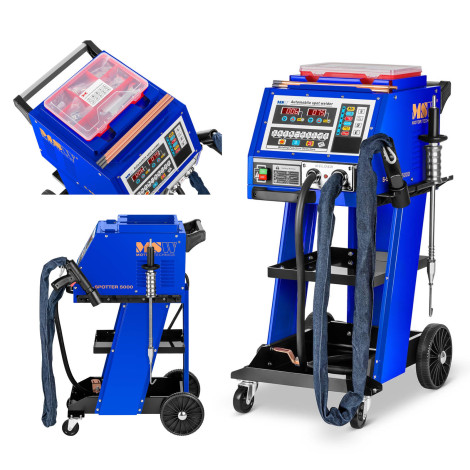

S-Spotter 5000 seal It will be used when straightening dents in the car body of various vehicles. The device is easy to use, thanks Touching control panelwho is responsible for setting the Spotter parameters. It allows you to specify Output current values (up to 5000 a), setting Timera (range from 0.01 s to 999s) and choosing One of the ten automatic functions:

• - Welding triangular washers
• - Welding washers
• - Welding pins, screws, etc.
• - screw welding
• - Welding wavy wire
• - One-sided welding
• - swelling - warming the sheet with the use of a coal electrode
• - Heating and shrinkage with coal wire
• - Cutting with coal wire

The device also has Two modes of operation (automatic and manual). The first of them allows you to work according to the previously determined welding timeand the other until until the gun button is released. Safe use guarantees Built-in fuse and system to prevent overheating. Checking the welding machine is possible thanks to LED reading display.

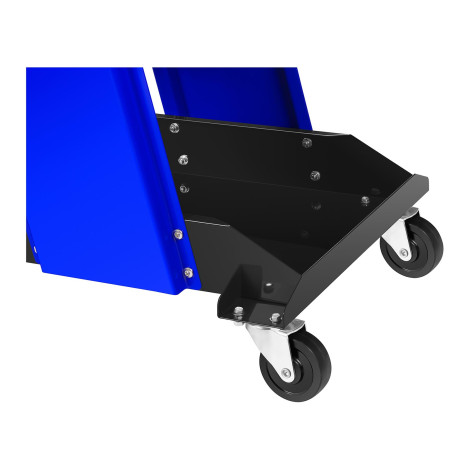

The welder is Fully mobile due to four wheels (two torsion and two permanent), and on practical shelves You can place tools and accessories. The device has been included A practical set of washers and tools for pulling out denunciation.
Product features:

• Versatility - capable of straightening and smoothing the car body of various vehicles
• The effectiveness of - Fast and precise transmission of signals provided by modern microczips and sensors
• Ergonomics - Touch control panel that facilitates the device regulation
• Safety - Built-in fuse and overheating protection system
• Mobility - Four wheels fitted
• Accessories - a set of washers and accessories for pulling out dents

Technical parameters:

• - Model - S-Spotter 5000
• - catalog number - 10060443
• - article - New
• - tension - 400 V / 50 Hz
• - Rated entrance power - 19 kVA
• - output voltage - 13 V
• - Rated entrance current - 50 a
• - Maximum output current - 5000
• - Welding thickness - 0.8 + 0.8 mm
• - time adjustment - 0.01 - 999 S
• - fuse - 42 A
• - gun cord - 1.75 m
• - grounding wire - 1,6
• - dimensions - 62 x 47 x 96 cm
• - weight - 56.85 kg
• - Dimensions of shipment (DXSXW) - 62 x 54 x 88 cm
• - shipping weight - 68.85 kg

Included:

• S-Spotter 5000 welding machine
• Pistol cable - 1.75 m
• Grounding wire - 1.6 m
• Scorch
• 3 x carbon rods
• Rod adapter
• Washer adapter
• Triangular washers adapter
• 10 x triangular washers
• 15 x 10 mm washers
• 15 x 12 mm washers
• The key
• Hook
• Tools
• User manual
