Hydraulic shuttle for repairing the body 10 t - set

Manufacturer number: MSW 10060932
A hydraulic shaft with a pump is a professional brand tool MSW Designed for automotive workshops and websites and private garages. It works well during the renovation of the body of passenger cars, delivery and trucks. Model MSW-KP-10 is intended for lifting and processing of the car body (bending, straightening and shaking sheet).
The maximum The loading of the rozpierak reaches up to 10 tons, so that the work of renovation works even large vehicles is secure, A High quality and solid construction ensure a long service life. In addition, the possibility of adjusting significantly increases the functionality of the device. The motor piston can be lifted in the range of 355 to 490 mm, A Four pipe extensions enable precise adjustment to the user's needs.
In order to increase the convenience of use, the model MSW-KP-10 has been Equipped with an automatic feed springWhich tool always returns to the starting position. In addition, the set is characterized by very easy assembly, which is precisely described in the included operating instructions.
Working safety with the rozpierak was increased by automatically overloading system, which Effectively prevents damage to the actuators and other elements. The whole is in a practical case that facilitates storage and protects the equipment during transport.
 Product features:

• - Performance - lifting up to 10 tons,
• - Precision - adjustment of lifting height in the range from 0 to 135 mm,
• - Safety - overload protection system,
• - Convenience - a set of piping extensions,
• - Multi-tasking - set equipped with tools necessary to carry out most conservation works,
• - Mobility - a metal suitcase in a set,
• - Strength - High quality.

Technical parameters:

• - Model - MSW-Kp-10
• - catalog number - 10060932
• - article - New
• - Maximum load - 10 t
• - Piston piston stroke - 135 mm
• - Minimum position height of the actuator piston - 355 mm
• - Maximum position of the actuator piston - 490 mm
• - Dimensions (DXSXW) - 71.5 x 29.5 x 16.5 cm
• - weight - 28.3 kg
• - Dimensions of shipment (DXSXW) - 75.5 x 33 x 20,5 cm
• - shipping weight - 29.25 kg

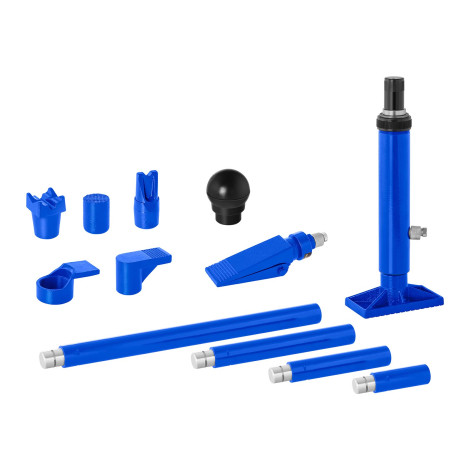

Included:

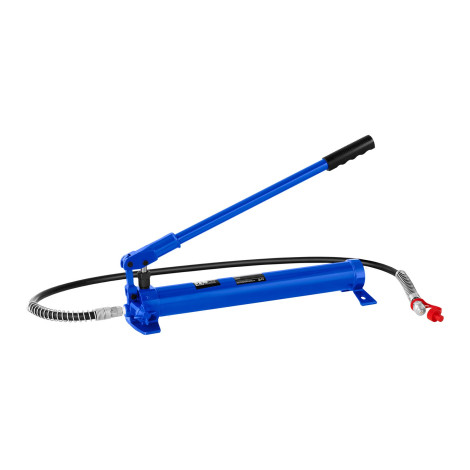

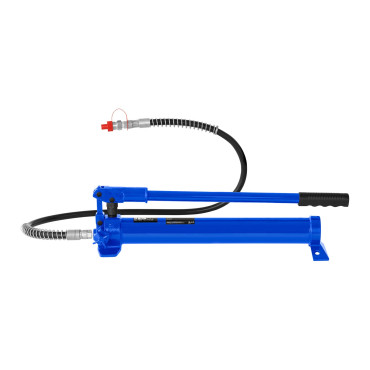

• - hydraulic pump
• - actuator
• - OØ33 x 88 mm
• - caps:
  • - Serrated nut Ø47 x 62 mm
  • - rubber head Ø75 x 90 mm
  • - M56 x 2 x 28 mm stand
  • - Disc head Ø47 x 59 mm
  • - 54 x 54 x 76 mm head
  • - Ø47 x 114 mm wedge Ø47 x 114 mm
• - pipe extensions (Ø42 x 550 mm, Ø42 x 300 mm, Ø42 x 200 mm, Ø42 x 100 mm) - 4 pcs.
• - Metal case
• - EN statement
