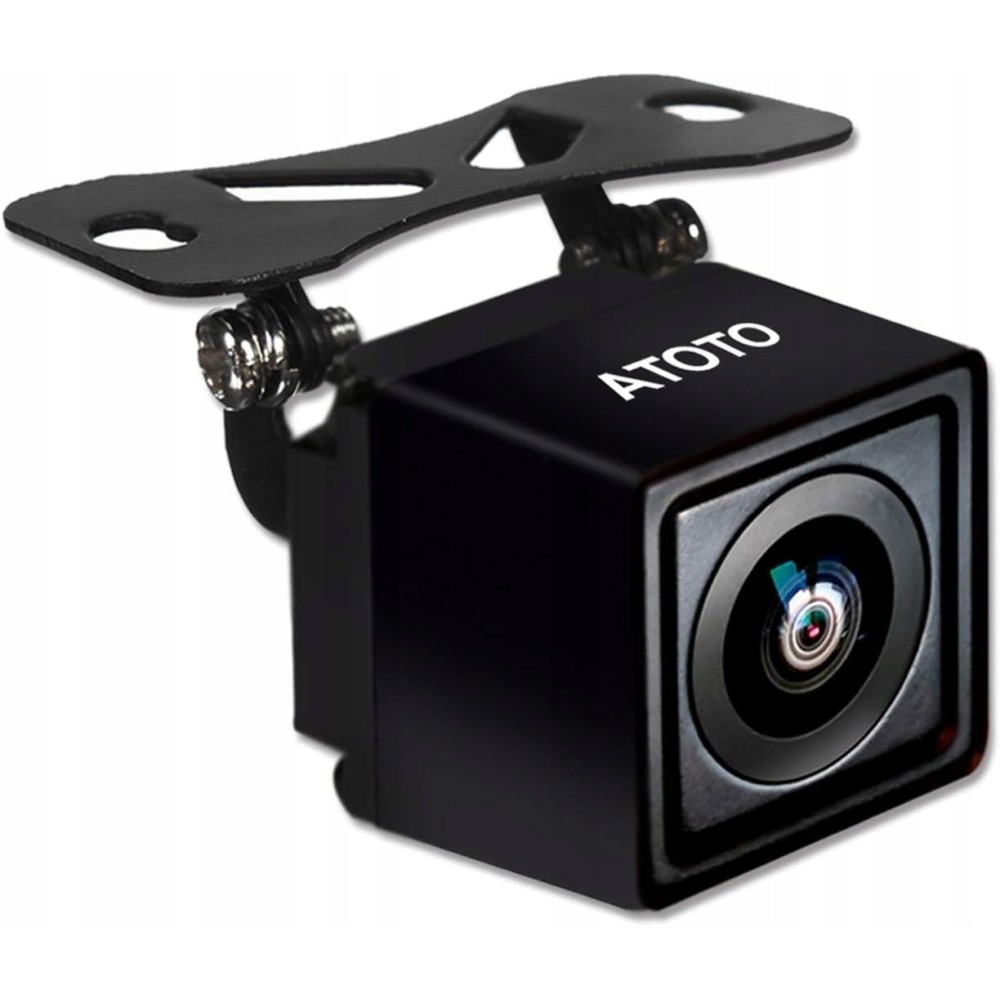

ATOTO AC-HD03LR 720p 180 ° reversing camera, NOCTOMATE AND WATER SUPPORT

The traditional Surround-View system complements the reversing camera with three additional cameras - one in the front apron and one at the bottom of the outer mirrors. Based on the information provided by all four cameras, the system generates a virtual aerial view of the car and displays it on the car radio screen in the dashboard. It is also possible to switch between different camera views to improve visibility. Because it is integrated with a factory electric system, it has the status of signpost lights and the current position of the steering wheel, so it has more options to be used by drivers.

If you plan to install a parking supporting system overlooking a view from the view from the perspective from the secondary market with four cameras, completing the installation may turn out to be too difficult. Parking supporting system with a view from the back of Ato VSV (Virtual Surround-View) in selected S8 (GEN2) models uses a single camera to provide a virtual top view that records and displays all Areas that the camera has seen from the start of work. That said, scanned and remembered the whole environment, since it started to act, and rebuild a dynamic, simulation, but almost the same size of the surroundings. Vehicle positions and barriers will be easily distinguished.

1. To use the VSV function, you must have an ATOTO AC-HD03LR reversing camera and special Stereo AtoTo S8 (GEN2) with Android, which is equipped with an image connection algorithm to The Atoto VSV function works properly. 2. It is not compatible with a series A6, F7 series, series X10, SA102, S8AIO, P5, P8, P8AI, P9 or any other stereo car brands. It is only compatible with other car ato S8 series radios. 3. For users for S8 (GEN1, produced before January 202), it is required to update the firmware for the LRV function to work properly. 4. The package has a piece of a calibration cloth; 5. You can watch a related movie about the product in the image gallery to learn more about how the Ato VSV parking feature works (Virtual Surround View)

Specifications:

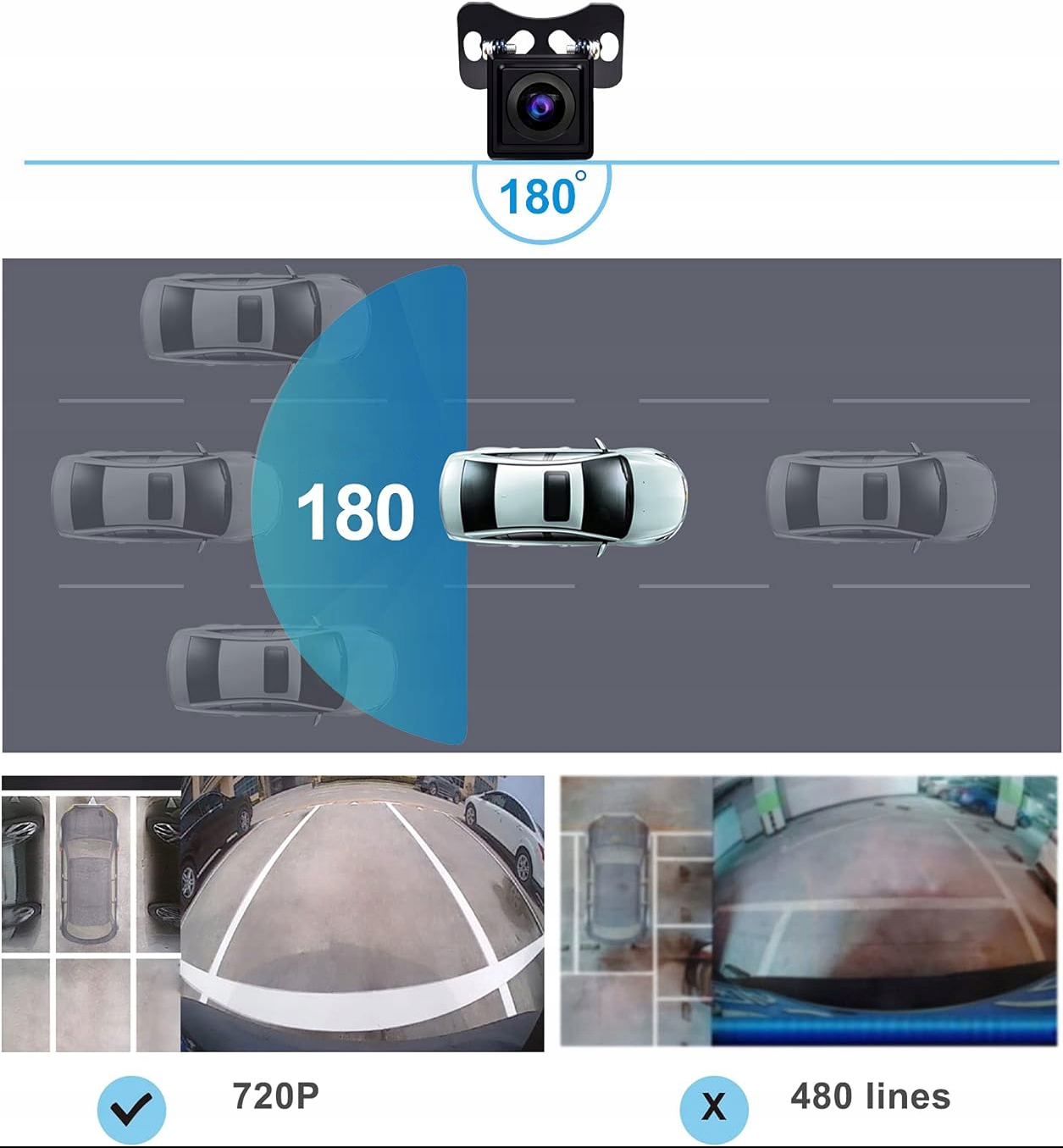

1. Product model: AC-HD03LR 3 2. Image sensor format: 1 / 2.9 "CMOS 3. Pixels: 1280 (H) x720 (V) 4. White balance: automatic 5. Highlight compensation: Yes 6. Reduction Noise: 3D DNR 7. Video frame speed: 720p @ 30fps 8. Video signal output: Analog HD signal, 1.0 VP-P / 75Ω 9. Working voltage: DC 12V 10. Working current: 130mA ~ 150MA 11. Working temperature: -30 ℃ ~ + 80 ℃ (-22 ° F ~ 176 ° F) 12. Guidelines for the back view: Not built-in, supplied by the stereo system of the car 13. Degree of water resistance: IP67 14. Viewing at night: Yes 15. Viewing the lens: 180 degrees

Park your car easily - Meet the surround view technology at an affordable price

Ato VSV Parking Function Lower the threshold for using a parking system with spatial view so that vehicles that are initially do not have such a system can use it only after purchase. You do not have to spend hundreds of dollars to buy a parking system with a spatial view based on 4 cameras, as well as hundreds of dollars on a complicated installation. This is very useful for a new driver, and even for an experienced driver who parks a large vehicle (full-size sedan / SUV, van, light trucks) in a narrow or small space.

This product supports reversing a parking space, including parallel parking, perpendicular and at an angle, but does not work in the case of parking ahead;

1

How does the Ato VSV and LRV function work in AC-HD03LR? How VSV (Virtual Surround-View) works:

In reverse mode, the camera installed on the back sends the surroundings that has been observed, to S8 in real time, and the S8 unit performs connection of images, generating a dynamic virtual environment with a 1: 1 size surroundings;

Then, based on the delivered data on the dimensions of the vehicle and the movement of its body, the system dynamically displays the approximate distance between the vehicle and the surrounding obstacles in the simulated environment formed by the real-time system. Drivers can make decisions on how to move further or reced;

Ato LRV (Live Rear-View) technology

Live Rearview (LRV) - access to the back view, even if the vehicle moves forward. This can remove obstacles inside the vehicle, increasing the field of view and enabling the driver of the uninterrupted view of the belts behind the vehicle and traditional dead points. To use this feature, special wiring is required, see below for information.

Easy installation, compatible with Ato S8 models

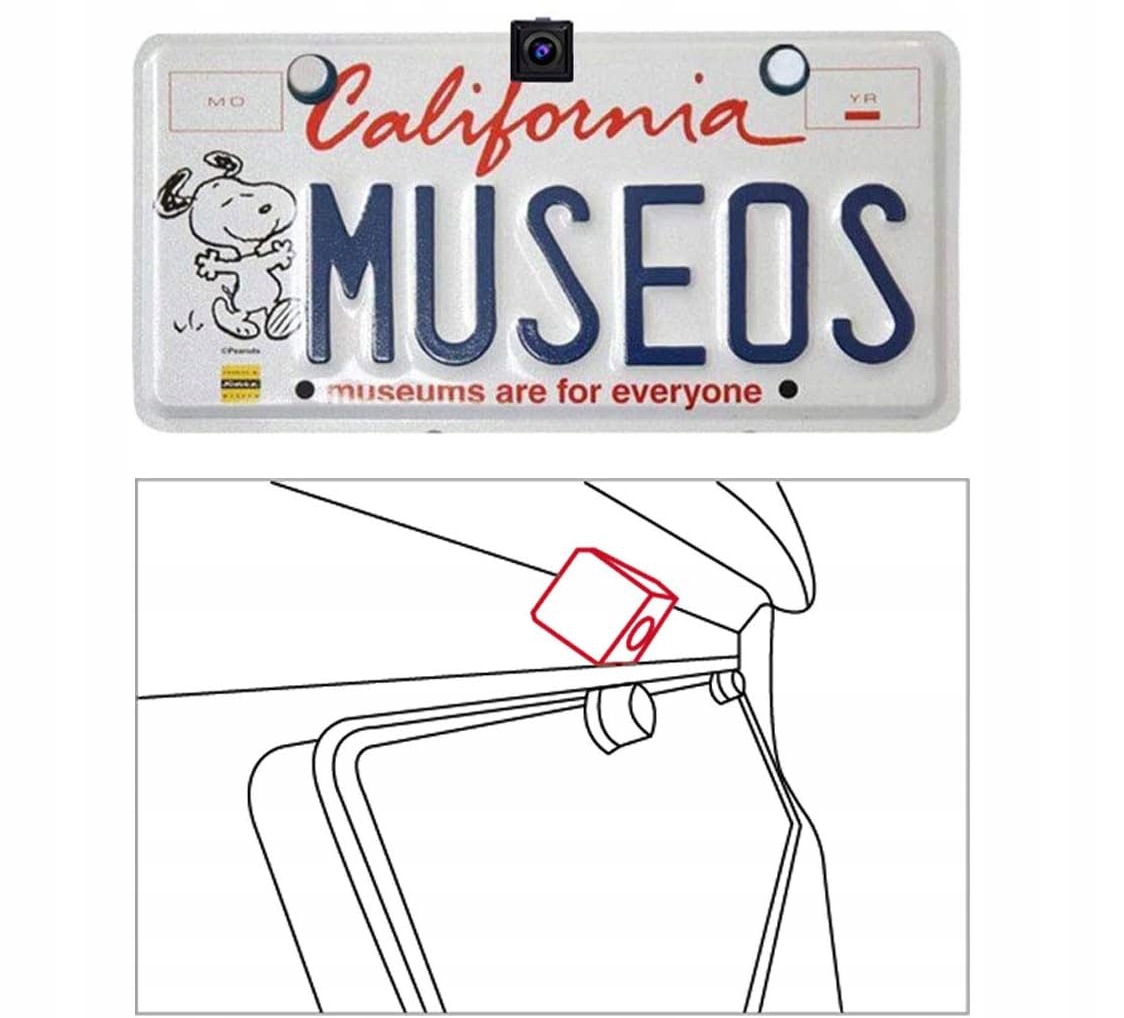

Because it has only one camera and is installed on the back of the vehicle, the installation is easy enough for most drivers, if you have experience in installing the backing camera from the secondary market. The traditional surrounding view system complements the reversing camera with three additional cameras - one in the front apron and one in each lower finish of the outer mirrors. You must make sure that all cameras have power, and the wiring to the side mirrors and the front apron is really difficult. Professional installations may need up to 3-4 hours!

In the package there is a special calibration cloth that will be needed as auxiliary accessory in the image calibration step - to help S8 understand, from the perspective of a computer where the camera and relative position between the vehicle body and the camera are located. Therefore, keep it in case you need again calibration, especially when the location or direction of the camera will change.
