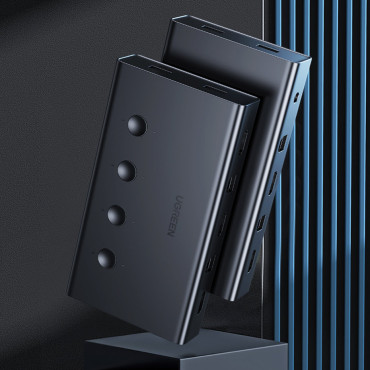

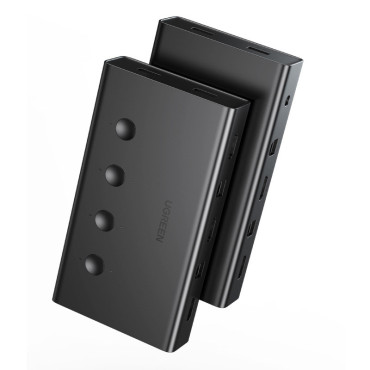

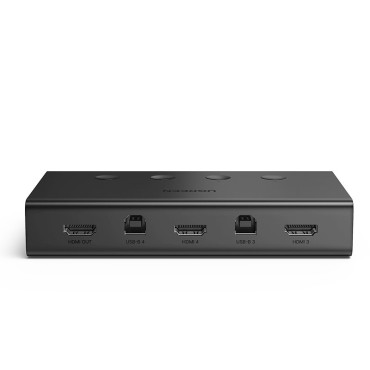

KVM Keyboard Video Mouse 4x HDMI 4x 4x USB-B black

Product code: 1020103
Do you use more than one computer and you want to connect one Keyboard Keyboard + Mouse? Or a pendrive or a printer? Switch Ugreen Cm293 Not only does you give you the opportunity, but also facilitates switching between devices. This is a great device if you care about high-quality sound and video.
Multifunctional on hand
The functional adapter has up to four HDMI and four USB inputs - including two USB Type A 1.1 and two USB Type A 2.0. So gives you the ability to connect one device to four computers simultaneously, eg mouse or keyboard, and even sharing the printer or pendrive # 8217 a.
Audio and video in high definition
The KVM switch provides an ideal audio and video signal synchronization. Supports DTS 5.1 and 7.1 audio formats, and the stable data transmission at a speed of up to 18GBPS ensures four built-in chips: Fe 1.1S, IT6635, SN74CBT3253PWR and GD32F130F8P6. If the cables entering and outgoing from the device will have a total of 10 meters long, the device will display a high resolution image - even 4K / 60 Hz. Over 10 meters, the maximum resolution will be 4K / 30 Hz. The image resolution depends on what signal sends your PC, laptop, video player or game console.
Easy service

• - The device is compatible with systems Macos, Windows and Linux. You do not have to have any software to it: the switch works in Plug and Play mode. To switch between computers, you can:
• - Use the buttons on the housing. Press one of the buttons to switch between computers. The LED will highlight if you managed to switch computers.
• - Use the keyboard. Press the Scroll Lock button twice and then the number between 1 and 4 on the numeric keypad. The LED will highlight if you managed to switch computers.

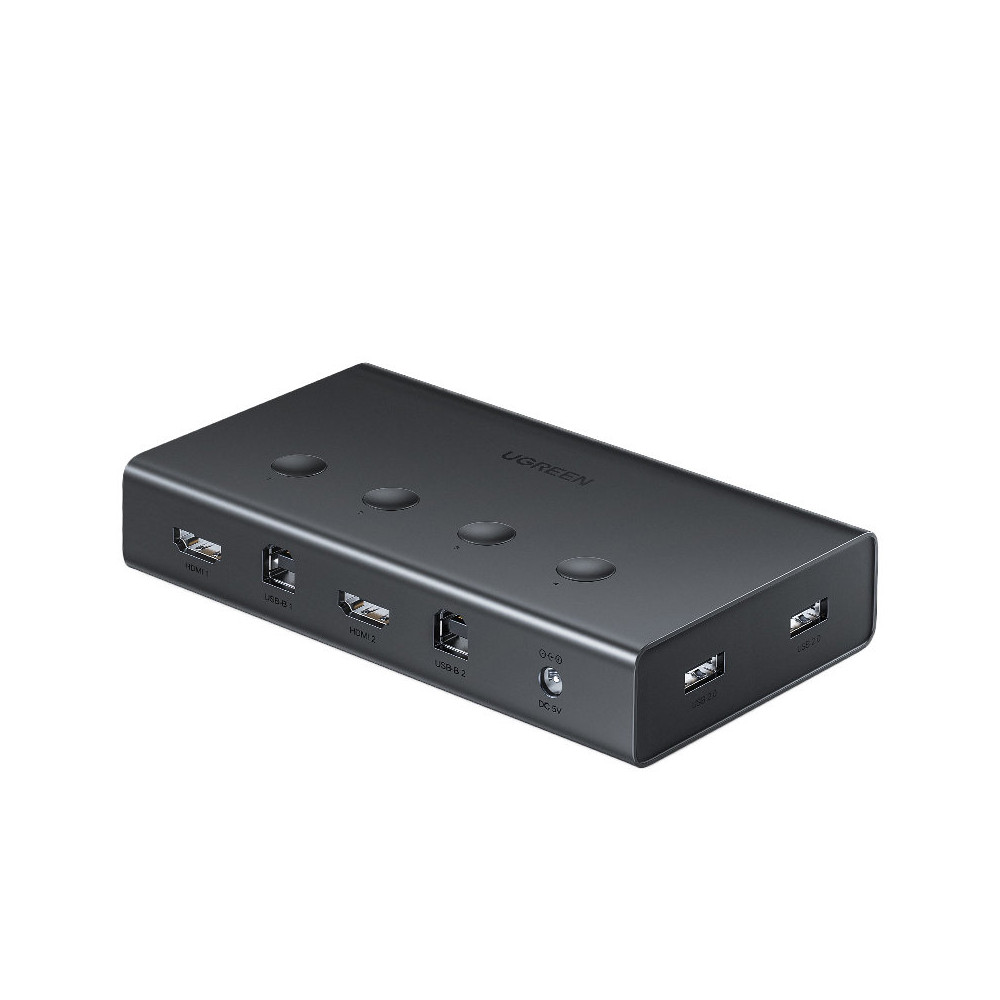

Friendly Design
The device has from the bottom, glued four silicone washers that do not allow him to slide on the table surface, desk or cabinets. The housing has been designed so that it can be disposed of on the view.
The most important features:

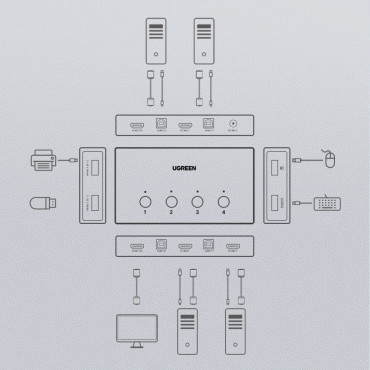

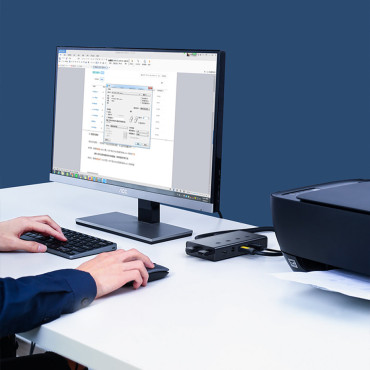

• - Connect one mouse, a keyboard, a printer or a pendrive up to 4 computers simultaneously. The switch separates the signal from the input device to 4 USB and HDMI ports,
• - You do not need any software. The switch operates in Plug and Play mode, is compatible with MacOS, Windows and Linux systems,
• - You can easily serve your devices. All you need to do is use the buttons built into the switch.

Specifications:

• - Brand: Ugreen
• - model: Cm293
• - ports:
•     1 x HDMI 2.0 (output)
•     4 x HDMI 2.0 (input)
•     2 x USB Type A 1.1 (Input)
•     2 x USB Type A 2.0 (input / output)
•     4 x USB Type B 2.0 (input / output)
• - Video standards: HDCP2.2, HDCP1.4
• - Supported resolution:
•     Total length of HDMI cables up to 10 m - 4K @ 60Hz
•     Total length of HDMI cables up to 20 m - 4K @ 30Hz
• - Audio support: 192kHz 24bit (Max)
• - Supported audio formats: DTS, DSD, Dolby AC3 5.1 7.1
• - Included:
•     4 USB Cables A Male A Male - USB Type B Male with a length of 1.5 m
•     1 m power cable
• - Dimensions: 110 x 65 x 20 mm

The kit includes:

• - KVM Keyboard Video Mouse 4x HDMI 4X 4x 4x USB-B black
