Workshop car lift width 80-154 cm 1.5 t

Manufacturer number: MSW 10060937
Car Lift Brand MSW This is a universal device that will work both in professional car workshops and in private garages. It is durable, easy to transport, convenient to use and does not require power, so it will work in all conditions.
 Maximum model load MSW-HB-1500 dates back to 1500 kg, which allows short-term lifting the car. However, if you want to raise the car for longer, you must use additional support for auto or lifting pillows. If the maximum lifting lifting is exceeded, only a pin will be damaged whose replacement does not cause problems.

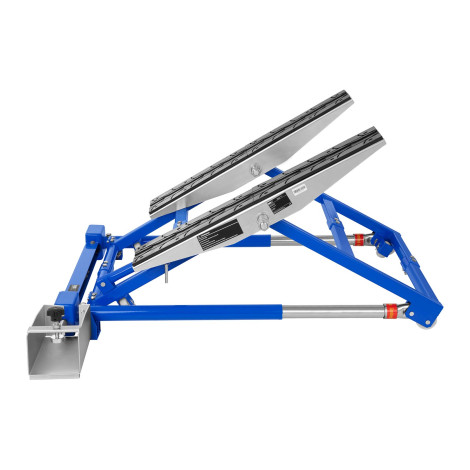

The versatility of the device is due to many vehicle lifting capabilities. With a lift You can lift both front or rear wheels and leaning or raise the entire car. It is worth to keep in mind that when lifting four wheels, the device should be supported by two people.

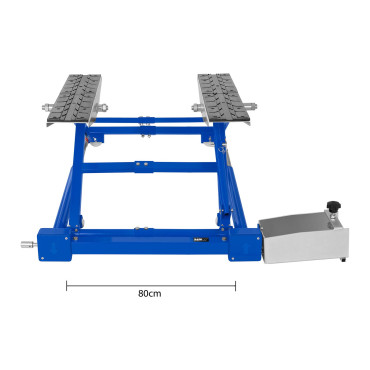

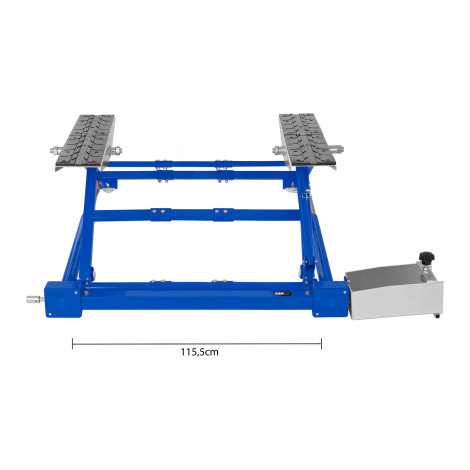

In order to increase the convenience of use of the structure MSW-HB-1500 has been adapted to work in the field - It is extremely light, easy to assemble and does not require any power source. In addition, adjusting the driveway width allows you to set a lifter in 3 positions (800/1115/1540 mm), which facilitates raising different types of cars. The lifting height of the vehicle can be adjusted in the range from 150 to 585 mm.
Product features:

• - Performance - the maximum load is 1.5 t,
• - Safety - overload protection,
• - Multi - the lift can only lift or rear wheels, and tilt or raise the entire car,
• - Versatility - 3 width adjustment items,
• - Precision - adjustment of the vehicle lifting height,

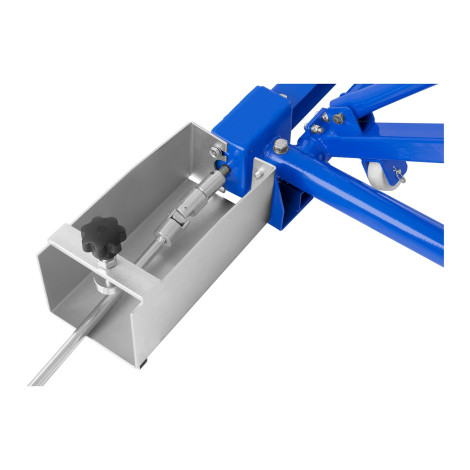

• - Convenience - service using a mechanical crank,
• - Mobility - A small weight and easy assembly.

Technical parameters:

• - Model - MSW-Hb-1500
• - catalog number - 10060937
• - article - New
• - Maximum load - 1500 kg
• - Lifting range - 150-585 mm
• - length adjustment - 800-1115-1540 mm
• - width - 1300 mm
• - ambient temperature - -10-50DEG C
• - Dimensions (DXSXW) - 130 x 166.5 x 87.5 cm
• - weight - 67 kg
• - Dimensions of shipment (DXSXW) - 134 x 89 x 17 cm
• - shipping weight - 88 kg

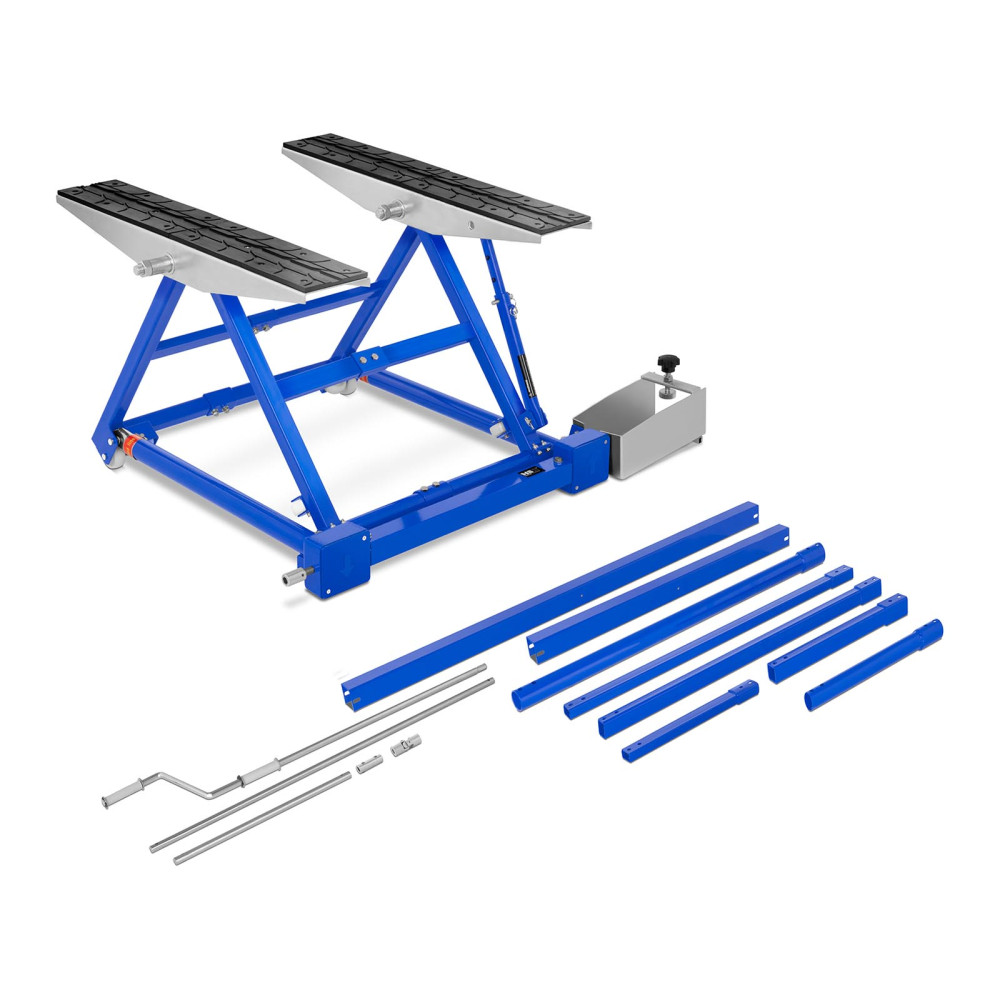

Included:

• Vehicle
• Assembly elements
• Manual EN
