Manufacturer's code:

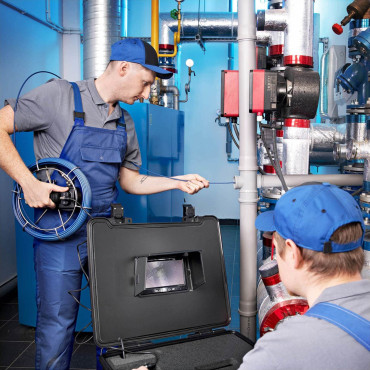

10030900Brand Inspection Camera Steinberg Systems It allows you to invest even hard visible or available jobs and malfunctions. A flexible probe and an ergonomic handle make this endoscope ideally suited for various applications, both professional and private. With an inspection camera, you can check the wires, pipes or outflows, and investigate the slots or cavities during renovation works. The camera head is introduced into a pipe using a probe with a length
30 m made from
fiberglass. Sewer camera is suitable for outflows of different diameters.
Two skills Leading with different sizes adapt the camera to the pipe diameter. The head and probe are

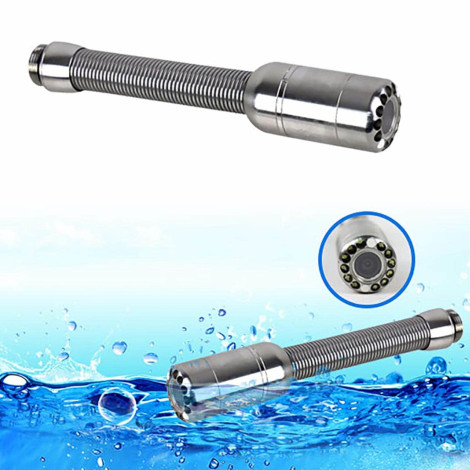

Waterproof (IP68) And that is why they can also be used in a humid environment. Meters counting function and transmitter built into the camera head (without a receiver) facilitate the location of the problem. Camera head can
Rotate 90deg, it has an angle of view 105deg . Necessary light ensure her
LEDs (12 pcs) Integrated with the camera head. A high-quality sapphire lens is suitable for difficult conditions and provides sharp images on the LCD monitor. Also

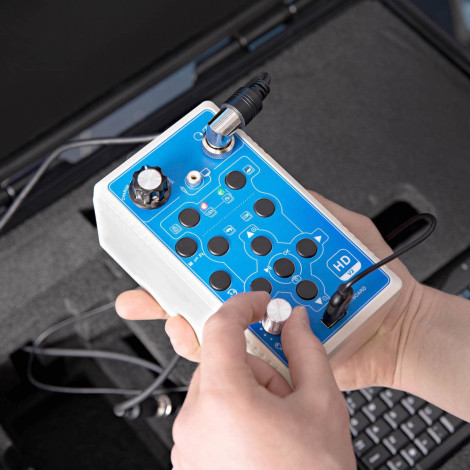

eightflowing digital zoom And independent image alignment also show the smallest details. Camera control takes place using the keyboard. In addition to a simple browsing, you can also
record audio and video and images, which will provide you with valuable information when analyzing cracks or congestion. In addition to the USB connector, the inspection camera is also equipped with a nest on
SD card. SD card with capacity
8 GB It has already been included in the scope of delivery. The endoscopic camera is powered by a battery, so you can use it anywhere without an external power source. Included

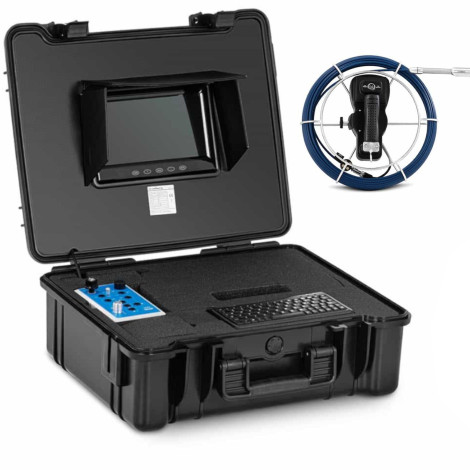

suitcase Facilitates transport and storage of equipment.

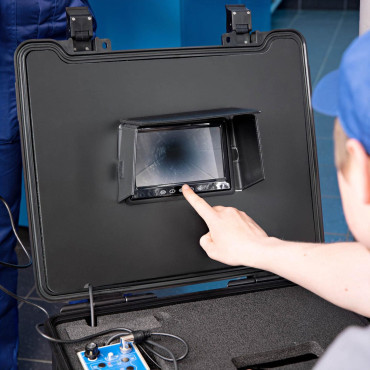

Product features: - - Large camera 23 x 134 mm with a resolution of 1280 x 720 px and a 7-inch color touch TFT display for clear playback,
- - 12 LEDs provides the best visibility,

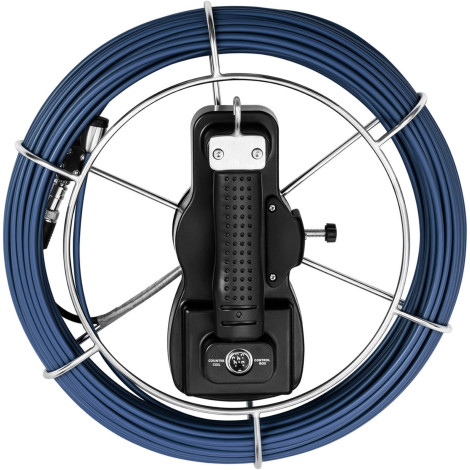

- - a 30 m probe provides amazing ranges and the transmitter built into the camera head facilitates the location of the problem,
- - You can save video and audio recordings and images,
- - Practical transport case with a keyboard for use.
Technical parameters: - - catalog number - 10030900
- - article - New
- - Model - SBS-Ec-300hk
- - Material - Housing: stainless steel (SS 304) / Cable: Glass Fiber / Cable Reel: Stainless Steel / USB Connector: Plastic (ABS)
- - Number of LEDs - 12
- - power source - 12V (control box) Charger: input: AC 100-240 V ~ 50/60 Hz, Output: DC 12.6 V / 1000 MA
- - battery - 4400 mAh, 12.6 V
- - battery power - So
- - viewing angle [deg ] - 105
- - Case included - So
- - Digital enlargement - x8
- - Automatic shutdown - So
- - Head rotation degree [deg ] - 90
- - housing material - Plastic
- - LED lamp - So
- - Lens type - Sapphire glass
- - head diameter [mm] - 23 x 134
- - Display - LCD
- - Memory - 8 GB SDHC card
- - length of the probe boom [mm] - 30
- - Sensor size [''] - 1/3
- - video and photo files format - AVI, JPG
- - IP protection class - Ip68
- - transmission signal - Cable
- - USB port - So

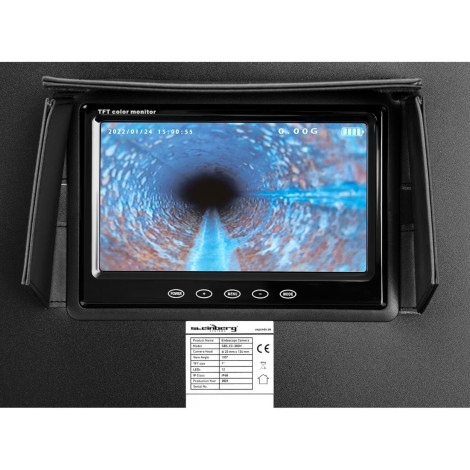

- - Display type - 7-inch color touch TFT display
- - Dimensions (DXSXW) - 50.5 x 19.5 x 45 cm
- - weight - 9.42 kg
- - Dimensions of shipment (DXSXW) - 51.5 x 20.5 x 46 cm
- - shipping weight - 10.46 kg

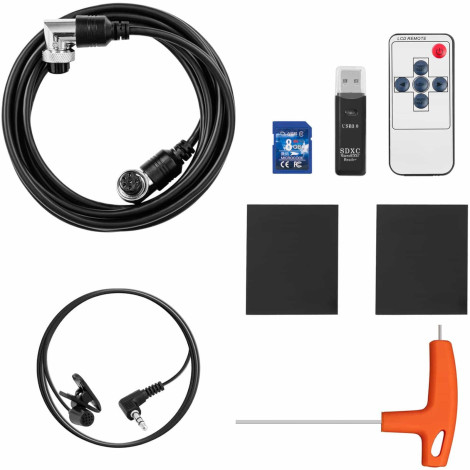

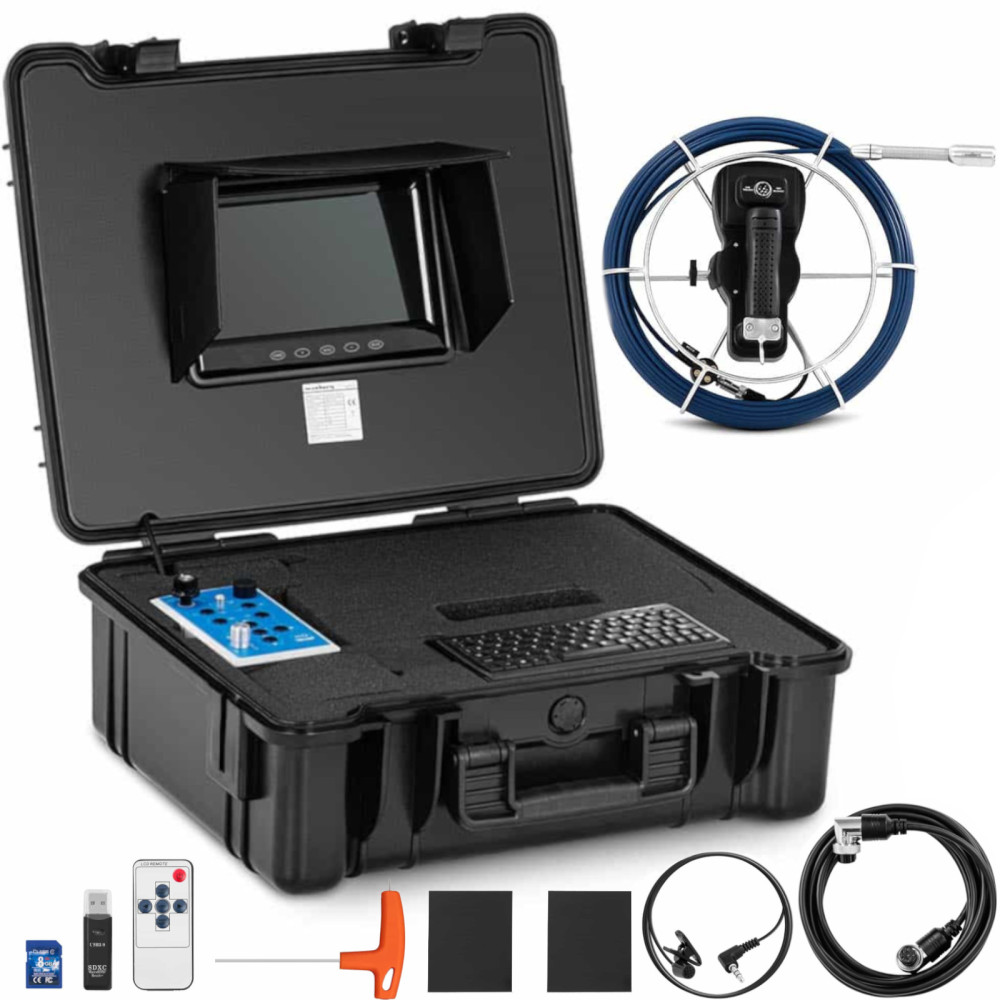

Included: - - Inspection camera SBS-Ec-300hk
- - Monitor
- - probe
- - Probe guide
- - camera head
- - 2 rubber rings

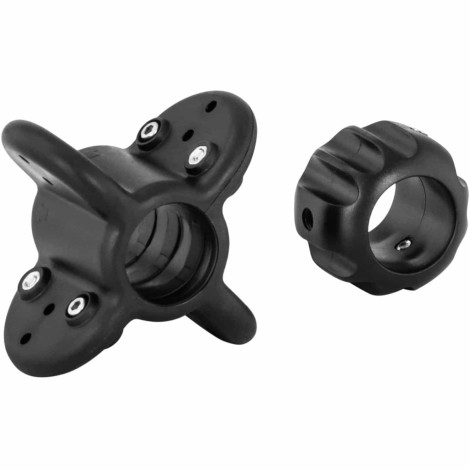

- - skids (40/80 mm)
- - Screwdriver

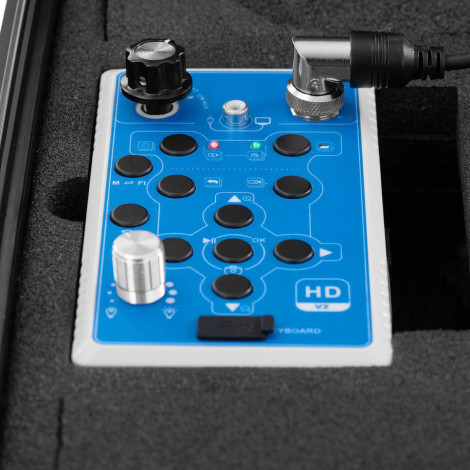

- - Control unit
- - SD card
- - USB reader
- - microphone
- - Batteries
- - Charger
- - keyboard
- - suitcase
- - User manual
