Endoscope Diagnostic Camera 18 LED LCD 10 inches SD 20 m

€2,265.03
Tax included
Last items in stock
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10031032

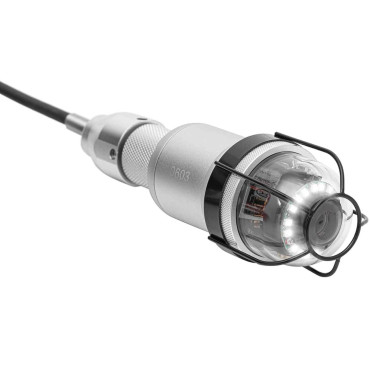

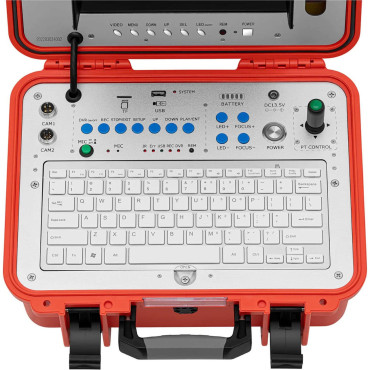

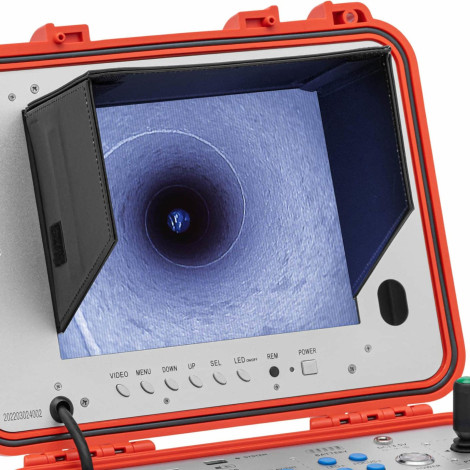

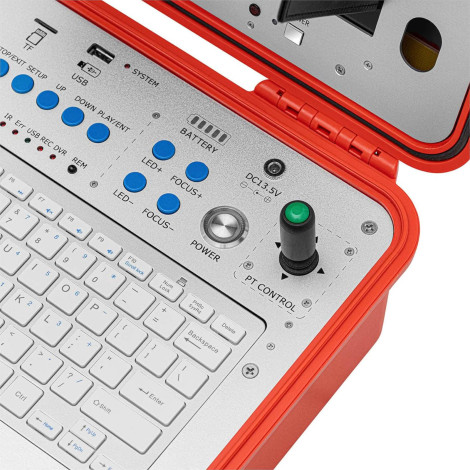

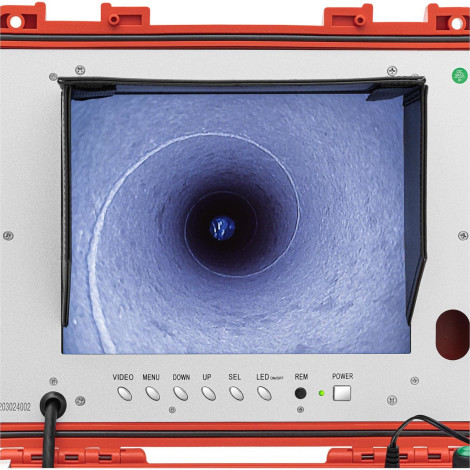

Brand Inspection Camera Steinberg Systems Allows you to check damaged areas in hard-to-reach places containers, containers, chimneys or tubular systems. You can put the camera head into the pipe with a length of the wire 20 m. Both elements are waterproof to a depth of 10 m (IP68), making it ideal for use in a humid environment. A flexible camera head rotates about 360deg and tilts by 180deg . 18 LEDs Provides the necessary light in a dark environment. High quality lens provides a sharp image on 10- inch LCD monitor. In addition to browsing, it is also possible to record sounds and videos and take a picture. The device has a control unit with a 28.5 x 12 cm keyboard and two cameras connectors (4 and 6 pin). The recordings are played using the remote control. The equipment has a port USB and Micro SD slot For transmission and data storage. The battery allows you to work for 4 hours.
Product features:
  • - the camera rotates by 360deg and tilts by 180deg, has a resolution of 800 x 600 px 10-inch display provides a clear relationship,
  • - 18 LEDs provides the best visibility,
  • - 20 m of the cable allows you to look into distant places,
  • - Memory allows you to store video and audio recordings and images,
  • - Transport suitcase with a keyboard for use.

Technical parameters:
  • - catalog number - 10031032
  • - article - New
  • - Model - SBS-Ec-20s
  • - Material - ABS, aluminum alloy, acrylic glass
  • - Number of LEDs - 18
  • - power source - Input: 100-240 V / ~ 50/60 Hz / 0.6 A (max.) / Output: 13.5 V (DC) / 1.7 A / 23 W
  • - battery - Lithium-ion battery (6600 mAh / 11.1 V)
  • - battery power - So
  • - Camera - 976 x 496 PX (Effective) / 640 x 480 PX (DVR)
  • - Case included - So
  • - Head rotation degree [deg ] - 360
  • - LED lamp - So
  • - matrix resolution - 800 x 600 px
  • - Display - LCD
  • - Memory - 32 GB (max.)
  • - length of the probe boom [mm] - 20
  • - IP protection class - Ip68
  • - USB port - So
  • - Display type - LCD (10 ")
  • - Dimensions (DXSXW) - 34 x 28 x 18 cm
  • - weight - 9.8 kg
  • - Dimensions of shipment (DXSXW) - 88.5 x 72.5 x 50 cm
  • - shipping weight - 11.7 kg

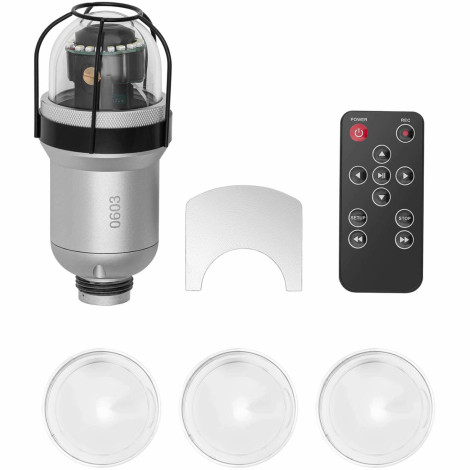

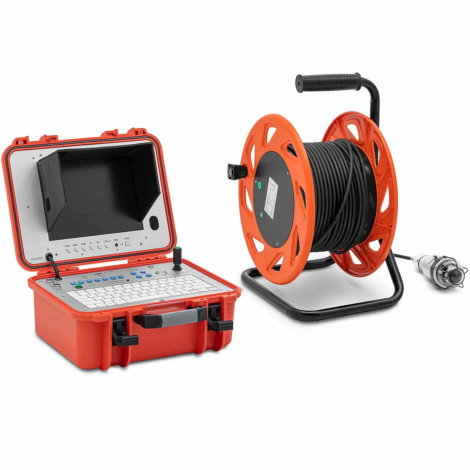

Included:
  • - Inspection camera
  • - Control console with a keyboard
  • - power supply (180 cm)
  • - pilot
  • - Cable retractor
  • - Camera shields
  • - Instructions
