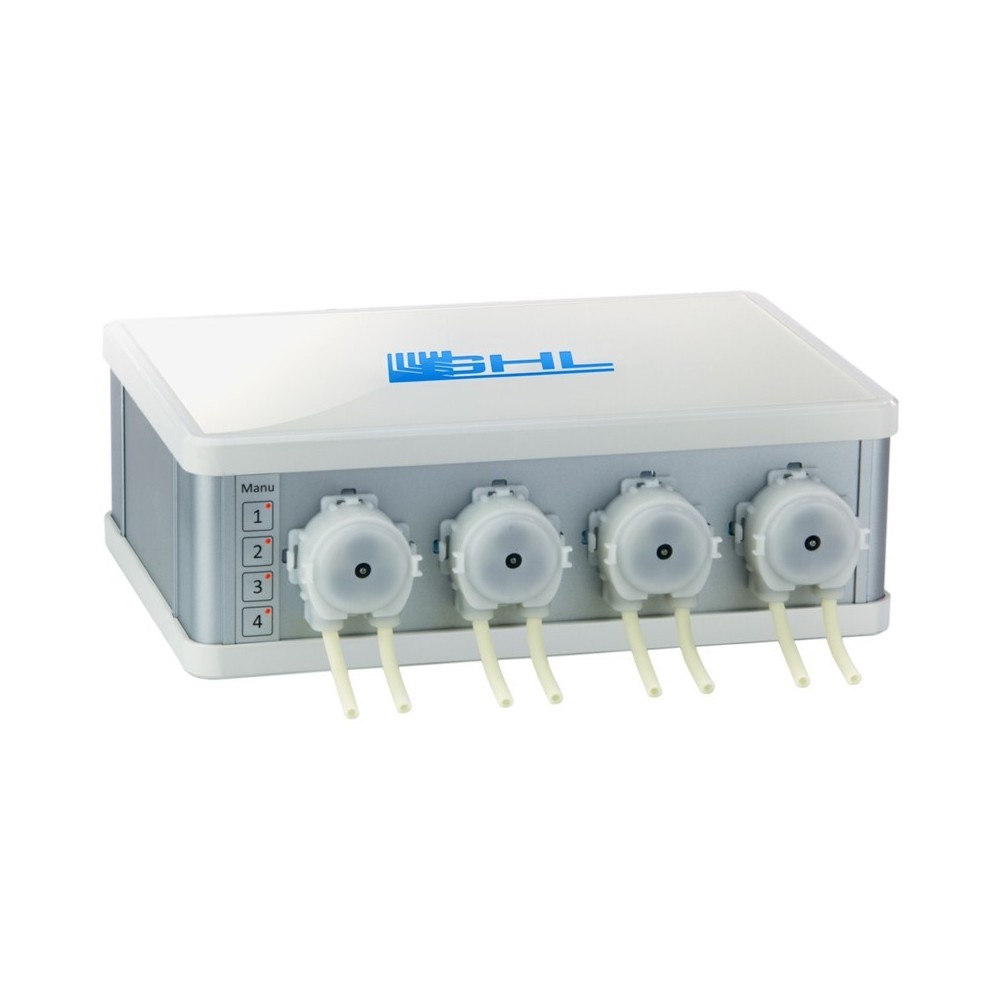

GHL Doser 2 SA 4 White Pumps

GHL Doser 2 SA 4

GHL Doser 2 is the latest model of GHL dispensing pumps with an integrated controller.
A connection to a PC, a tablet or smartphone is possible via Wi-Fi or USB.
24V step motors allow very precise dosing of the smallest quantities of substances (minimum dose of 0.1ml).
In addition, the pumps are connected under the temperature probe, water level sensor, four inputs to connect mixers, PAB port and USB / LAN input


Features:

Different communication methods
Ports for connecting a magnetic agitator, external GHL Control Pad (4.3 ", touch screen), temperature sensor and liquid level.

Integrated auto handweete.

Extremely accurate dosing
24V step motors allow precise dosing of the smallest amounts of fluids.

LED signaling the pump status
Different colors quickly indicate currently running processes / alarm states.

Simple connection
The connection is possible via Wi-Fi or USB.

Liquid level display
Tracking and controlling the level of liquid. Alarm indicating a filling failure.

Easy service
Configure the dispensing pump through the software or start the manual Dispensable buttons on the device.
Possible automatic calibration.

Excellent quality
Application of chemically resistant pipes (NOVOPREREENE ©) and engine shafts from the stalinear.
Suitable for iodine administration.

Modular system
GHL Doser Unit 2 SLAVE can be connected to the Profilux controller or with the Ghldoser 2 Stand Alone unit.
Pumps and engines can be replaced separately.

Technical data:

Color: white
Dimensions: 220 x 150 x 70 mm (without pump)
4 stand-alone pumps with a built-in controller
Expansion options: up to 16 pumps
Adjustable flow: approx. 8-45 ml / min
Dosage from 0.1 ml
