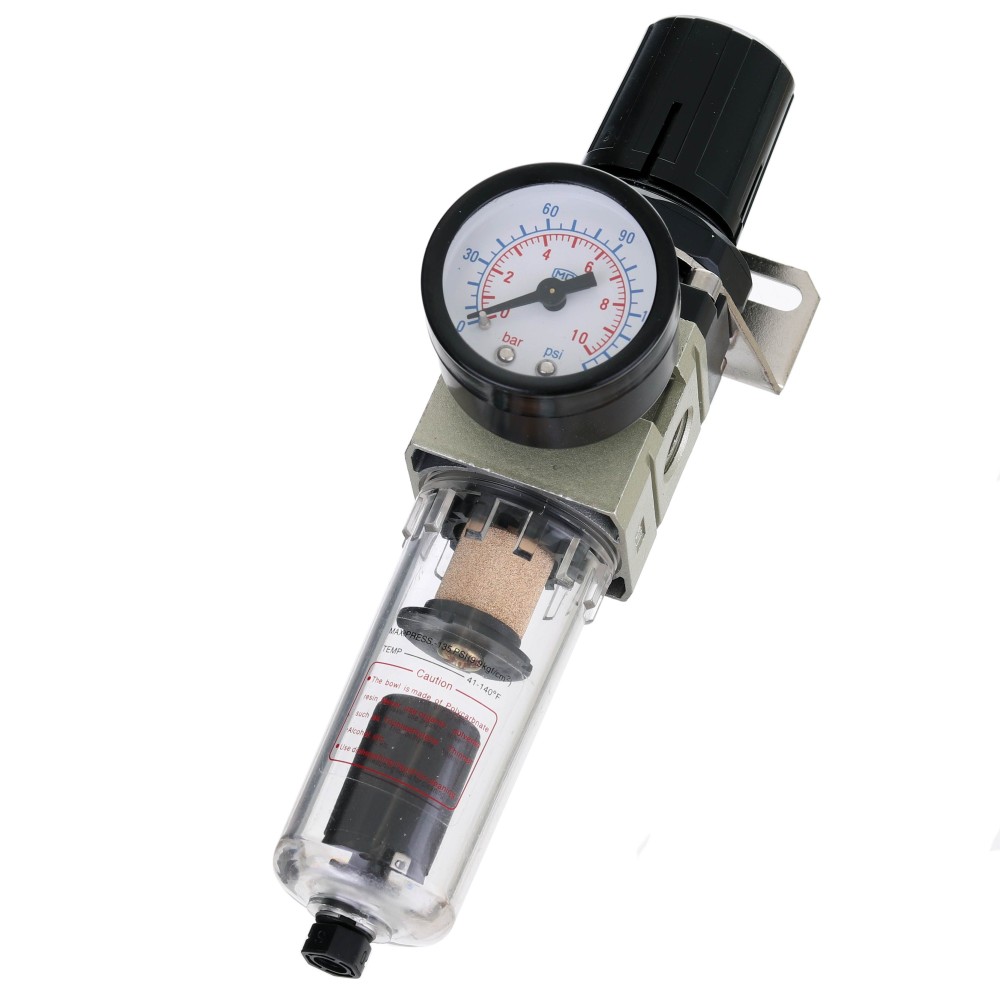

AW2000-02D Filter with Reducer, Auto Trigger CH

Air reducer with 1/4 inch filter for AW2000-02D compressor

The advantage of the reducer is good and durable construction, A readable manometer, a unscrewed hanger for screwing the reductor on the wall, controller lock (top - bottom). It applies in 1/4 "and is an essential element.

The filter is used to dry air. JohnESt an indispensable element of each pneumatic installation. Using this filter, you can prevent, inter alia; Rusting tools, drains when painting paint guns, snake damage, etc.

Auto trigger - When the level of separated water reaches the appropriate height of the tank automatically empties from the water. Just connect the hose and immerse in a larger tank. Thanks to this, we do not have to remember to empty.

Technical data:

• The amount of the set is approximately: 165mm
• Width: 40mm
• Regulation range: 0.5 to 8.5 bar
• Thread: 1/4 "(12-13 mm)
• Maximum pressure: 10 bar
• Maximum flow: 500 l / min
• Filtration 0.04 mm
• Tank capacity: 15 ml
• Working temperature: up to 60 oC
